Network surveillance camera - dome - outdoor - vandal / weatherproof - color (Day&Night) - 8 MP - 3840 x 2160 - fixed iris - fixed focal - audio - LAN 10/100 - MJPEG, H.264, H.265
| Main Specifications | |
|---|---|

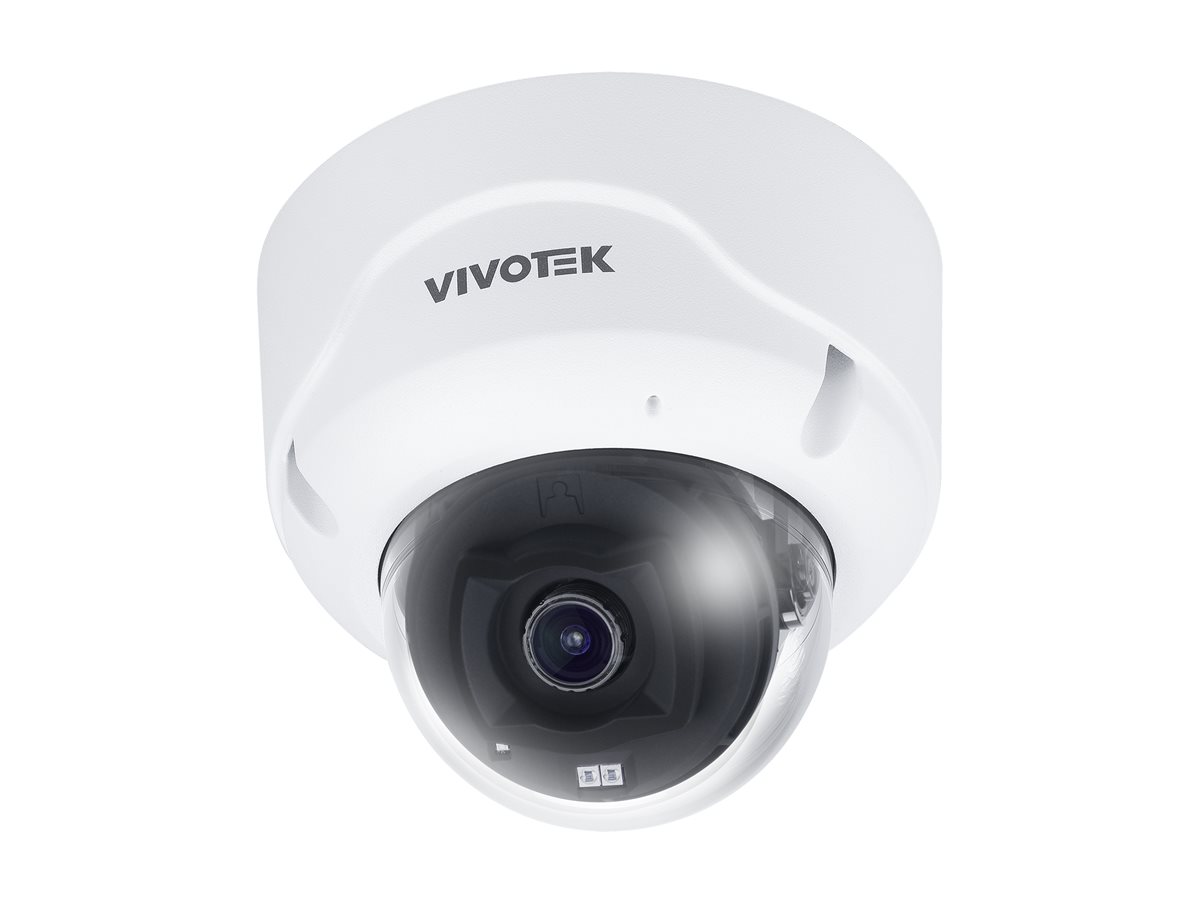

| Product Description | Vivotek V Series FD9399-EHV - network surveillance camera - dome |
| Device Type | Network surveillance camera - fixed - dome - outdoor - vandal / weatherproof |
| Audio | Yes: two-way audio capability, built-in microphone |
| Dimensions (WxDxH) | 5.3 in x 5.3 in x 45.7 in |
| Weight | 33.86 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 12 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | Progressive Scan CMOS - 1/1.8" - 8 MP |
| Minimum Illumination | 0.15 lux - color - F1.6 ¦ 0.005 lux - B&W - F1.6 ¦ 0 lux - IR - infrared LEDs on |
| Focal Length Control | Fixed focal |
| Focal Length | 4.2 mm |
| Lens Iris | F/1.6 - fixed iris |
| Panning Range (degree) | 350 |
| Tilting Range (degree) | 80 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Features | Backlight Compensation (BLC), Highlight Compensation (HLC), exposure control, Gain Control, AE speed adjustment, Wide Dynamic Range (WDR), Privacy Mask Function, Pixel Calculator, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People Detection, Vehicle Detection, gender recognition, clothes color detection, deep learning function, Smart Motion Detection, Smart VCA, intrusion detection, loitering detection, Line Crossing Detection, unattended object detection, missing object detection, face detection, crowd detection, white balance, brightness control, contrast control, saturation control, sharpness control, gamma control, Defog, 3D digital noise reduction (DNR), Electronic Image Stabilizer (EIS) |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | -31 °F - 140 °F; 98% RH (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Audio Formats | G.711, MPEG 2 Audio, AAC-LC, G.726 |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 5.3 in |
| Depth | 5.3 in |
| Height | 45.7 in |
| Weight | 33.86 oz |
| Expansion / Connectivity | |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | EN 55032, EN 55035 Class A, UKCA, FCC Part 15 Subpart B, AS/NZS CISPR32 Class A, VCCI-CISPR 32 Class A, ICES-003 issue 7 Class A, UL 62368-1, IEC/EN 62368-1, IEC/EN 62471, BS EN IEC 62368-1, NEMA 250 Type 4X, IK10, IP66, IS 13252, CNS 13438, CNS 14336-1 |
| Environmental Parameters | |
| Min Operating Temperature | -31 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 98% RH (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Digital Zoom | 48 |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Minimum Illumination | 0.15 lux - color - F1.6 ¦ 0.005 lux - B&W - F1.6 ¦ 0 lux - IR - infrared LEDs on |
| Infrared LEDs | 4 |
| Infrared Distance | 131 ft |
| Digital Video Capture Resolution | 3840 x 2160, 3328 x 1872, 3072 x 1728, 2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720, 640 x 360 |
| Frame Rate (max) | 30 frames per second |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | Backlight Compensation (BLC), Highlight Compensation (HLC), exposure control, Gain Control, AE speed adjustment, Wide Dynamic Range (WDR), Privacy Mask Function, Pixel Calculator, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People Detection, Vehicle Detection, gender recognition, clothes color detection, deep learning function, Smart Motion Detection, Smart VCA, intrusion detection, loitering detection, Line Crossing Detection, unattended object detection, missing object detection, face detection, crowd detection, white balance, brightness control, contrast control, saturation control, sharpness control, gamma control, Defog, 3D digital noise reduction (DNR), Electronic Image Stabilizer (EIS) |
| Lens Construction | |
| Type | Fixed focal |
| Optical Zoom | 12 x |
| Focal Length | 4.2 mm |
| Lens Iris | F/1.6 fixed iris |
| Horizontal Field of View (degree) | 110.4 |
| Vertical Field of View (degree) | 59.1 |
| Diagonal Field of View (degree) | 131 |
| Image Sensor | |
| Type | 8 MP Progressive Scan CMOS 1/1.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QOS, RTSP, RTP, RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Panning | |
| Range (degree) | 350 |
| Tilting | |
| Range (degree) | 80 |
