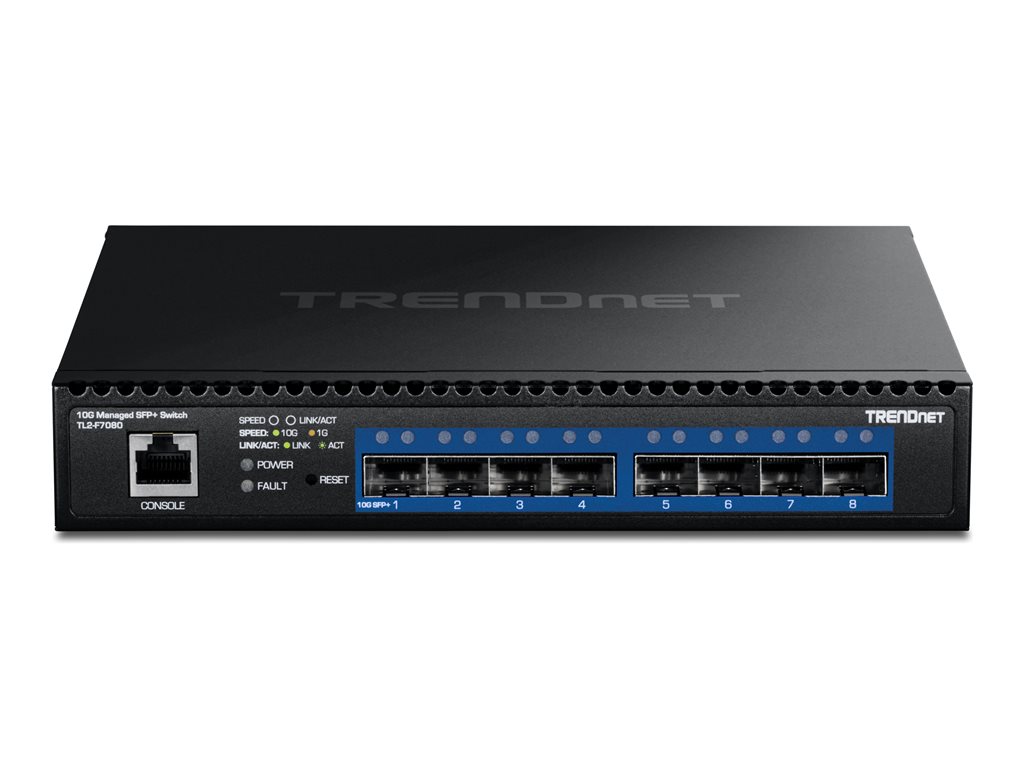

Version V1 - switch - Layer 2 - managed - 8 x 1 Gigabit / 10 Gigabit SFP+ - rack-mountable - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TL2-F7080 - Version V1 - switch - Layer 2 - 8 ports - managed - rack-mountable - TAA Compliant |
| Device Type | Switch - 8 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 8 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance | Switching capacity: 160 Gbps ¦ Forwarding rate (64?byte packets): 119.04 Mpps |
| Capacity | RAM buffer: 1.5 MB ¦ MSTP instances: up to 16 ¦ LACP links per group (active): 8 ¦ VLAN groups: up to 256 ¦ Multicast groups: up to 256 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12KB |
| Routing Protocol | MSTP, RSTP |
| Remote Management Protocol | CLI, Telnet, SSH, DNS, HTTP, HTTPS, IPv4, IPv6, TFTP, Web GUI, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, ICMP, MIB, MIB 2 |
| Features | LED status indicators, reset button, backup/restore, firmware upgradable, SNMP trap, LLDP support, ICMPv4/ICMPv6 support, Cable Diagnostics Function, SNTP, traceroute, ARP support, dual image support, system log, DDM, IPv6 neighbor discovery, many-to-one port mirroring, port mirroring, Broadcast Storm Control, loopback detection, port statistics counter, MSTP support, RSTP support, Static Link Aggregation, CoS, DSCP support, per port bandwidth control, queue scheduling support, SP, WRR, GVRP, port isolation, tagged VLAN, Voice VLAN, static routing, 802.1x authentication, IGMP fast leave, IGMP querier, IGMP snooping, IGMP snooping v2, IGMP snooping v3, DoS |
| Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 8.3 in x 7.1 in x 1.4 in |
| Weight | 31.95 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 8 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 8 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance | Switching capacity: 160 Gbps ¦ Forwarding rate (64?byte packets): 119.04 Mpps |
| Capacity | RAM buffer: 1.5 MB ¦ MSTP instances: up to 16 ¦ LACP links per group (active): 8 ¦ VLAN groups: up to 256 ¦ Multicast groups: up to 256 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12KB |
| Routing Protocol | MSTP, RSTP |
| Remote Management Protocol | CLI, Telnet, SSH, DNS, HTTP, HTTPS, IPv4, IPv6, TFTP, Web GUI, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, ICMP, MIB, MIB 2 |
| Authentication Method | TACACS+, RADIUS |
| Features | LED status indicators, reset button, backup/restore, firmware upgradable, SNMP trap, LLDP support, ICMPv4/ICMPv6 support, Cable Diagnostics Function, SNTP, traceroute, ARP support, dual image support, system log, DDM, IPv6 neighbor discovery, many-to-one port mirroring, port mirroring, Broadcast Storm Control, loopback detection, port statistics counter, MSTP support, RSTP support, Static Link Aggregation, CoS, DSCP support, per port bandwidth control, queue scheduling support, SP, WRR, GVRP, port isolation, tagged VLAN, Voice VLAN, static routing, 802.1x authentication, IGMP fast leave, IGMP querier, IGMP snooping, IGMP snooping v2, IGMP snooping v3, DoS |
| Compliant Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Built-in Devices | Smart fan |
| Status Indicators | Power, fault, link/activity/speed |
| Expansion / Connectivity | |
| Interfaces | 8 x Gigabit / 10Gbit LAN SFP+ ¦ 1 x console RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | Power adapter, rack mount kit |
| Cables Included | 1 x RJ-45 to RS-232 cable - 5 ft |
| MTBF | 172,636 hours |
| Compliant Standards | FCC, LVD, NDAA |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 23.53 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 8.3 in |
| Depth | 7.1 in |
| Height | 1.4 in |
| Weight | 31.95 oz |
