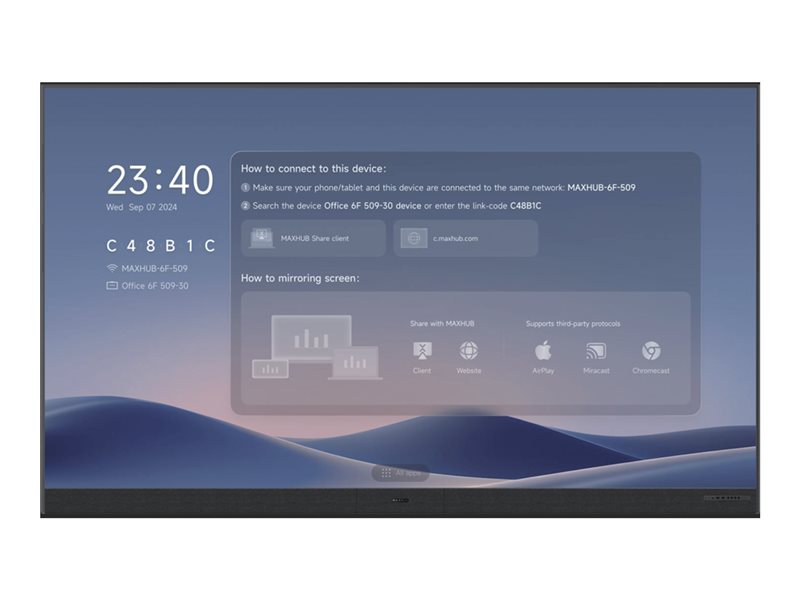

150" Diagonal Class Raptor Series V3 LED-backlit LCD display - interactive - Android - 1080p 1920 x 1080
| Main Specifications | |
|---|---|
| Product Description | MAXHUB LX150V07 Raptor Series V3 - 150" LED-backlit LCD display - Full HD - for interactive communication |
| Product Type | LED-backlit LCD flat panel display |
| Diagonal Class | 150" |
| Commercial Use | Yes - interactive |
| Platform | Android |
| Resolution | 1920 x 1080 |
| Display Format | 1080p |
| Frame Rate & Enhancement Technology | 3840 Hz Frame Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| Connectivity | Wi-Fi, Bluetooth, LAN |
| LCD Backlight Technology | LED backlight |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Front access maintenance |
| Speaker System | 6 speakers |
| Storage Capacity | 64 GB |
| USB | 4 ports |
| Included Accessories | Remote control, maintenance tool, tool kit |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 0.575 kW |
| Power Consumption Stand by | 0.5 Watt |
| Dimensions (WxDxH) - without stand | 1.1 in |
| Weight | 288.8 lbs |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption (Max) | 1.916 kW |
| Power Consumption Operational | 0.575 kW |
| Diagonal Class | 150" |
| Commercial Use | Yes - interactive |
| Series | Raptor Series V3 |
| Platform | Android |
| Operating System | Android OS 13 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Light sensor |
| Video Interface | HDMI |
| HDMI Ports Qty | 4 ports |
| Design | Ultra-Slim Design, Lightweight Design |
| Dimensions | Without stand |
| Depth | 1.1 in |
| Weight | 288.8 lbs |
| Miscellaneous | |
| Included Accessories | Maintenance tool, tool kit |
| Compliant Standards | RoHS |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| Features | PoE+ support |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% RH (non-condensing) |
| Display | |
| Pixel Pitch | 1.7 mm |
| Resolution | 1920 x 1080 |
| Display Format | 1080p |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 3840 Hz Frame Rate |
| LCD Backlight Technology | LED backlight |
| Color Temperature | 2300 - 9300K |
| Image Contrast Ratio | 6500:1 |
| Brightness | 600 cd/m² |
| Viewing Angle | 160° |
| Viewing Angle (Vertical) | 140° |
| Backlight Life | 100,000 hour(s) |
| Commercial Features | Front access maintenance |
| Additional Features | 16-bit grayscale, screen sharing, picture-by-picture (PBP), picture-in-picture (PIP), PoE support |
| Connections | |
| Connector Type | 2 x HDMI input - internal ¦ HDMI output - external ¦ LAN - internal ¦ USB 2.0 - internal ¦ 2 x USB 3.0 - external ¦ USB - external ¦ Audio line-out - internal ¦ Audio line-in - external ¦ RS-232 - internal ¦ USB output - external ¦ 2 x LAN - internal ¦ Audio line-out - external ¦ 2 x HDMI input - internal |
| Remote Control | |
| Type | Remote control |
| Audio System | |
| Speaker System | 6 speakers |
| Speakers | 6 x speaker |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 85.4 in |
| Depth (Shipping) | 26.8 in |
| Height (Shipping) | 49.4 in |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi, Bluetooth, LAN |
| LAN Protocol | Ethernet |
| Wi-Fi Protocol | 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n |
| Bluetooth Version | Bluetooth 5.3 |
| Stands & Mounts | |
| Wall Mount Included | Yes |
| Media Player | |
| Supported Video Formats | MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1, VP9, VP8, MVC, AV1 |
| Supported Audio Formats | MP3 |
| Supported Pictures Formats | JPG, JPEG, BMP, GIF, PNG |
| USB Port | Yes |
| USB Ports Qty | 4 |
| Configuration | ARM Cortex-A76 Quad-Core + ARM Cortex-A55 Quad-Core - 8 GB - 64 GB |
