AI PC - SFF Core Ultra 5 225 / up to 4.9 GHz - RAM 16 GB - SSD 256 GB - NVMe - Intel Graphics - Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - jack black
| Main Specifications | |
|---|---|

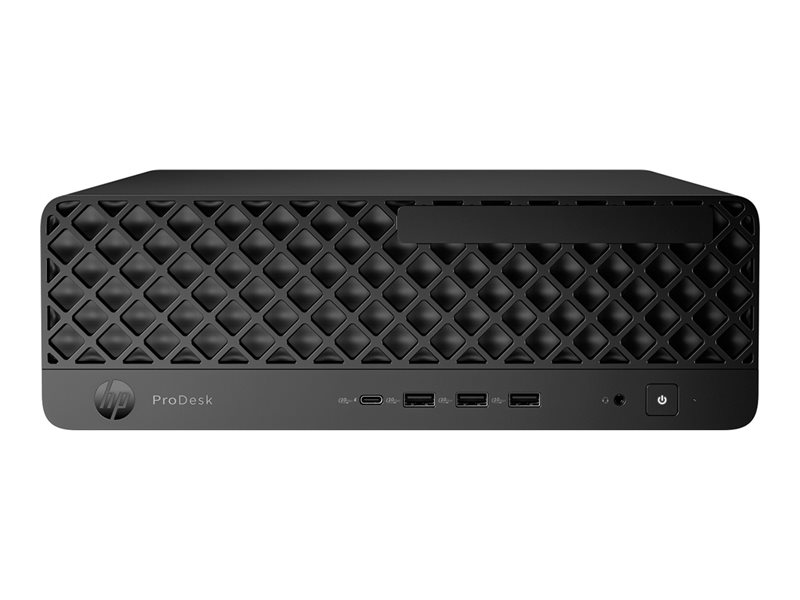

| Product Description | HP ProDesk 4 G1i - SFF - AI PC - Core Ultra 5 225 3.3 GHz - 16 GB - SSD 256 GB - US |
| Type | Personal computer - SFF - AI PC |
| EU Data Act | Https://compliance-euda.hp.com/ |
| Localization | Language: English / region: United States |
| Processor | Intel Core Ultra 5 (Series 2) 225 / 3.3 GHz (up to 4.9 GHz, (10-core) |
| Processor Main Features | Intel Turbo Boost Technology, 10 Threads |
| Neural Processor Unit (NPU) | Intel AI Boost - up to 13 TOPS |
| Cache Memory | 20 MB L3 cache |
| Cache Per Processor | 20 MB |
| RAM | 16 GB (installed) / 64 GB (max) - DDR5 SDRAM |
| Hard Drive | SSD 256 GB - PCI Express - M.2 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | Intel Graphics Dynamic Video Memory Technology - up to 4 TOPS |
| Audio Output | Stereo |
| Networking | 1GbE |
| Keyboard | US |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | HP Support Assistant, HP Hotkey Support, HP PC Hardware Diagnostics UEFI, HP Client Catalog (free download), HP Setup Integrated OOBE, HP Image Assistant (free download), HP Documentation, HP Notifications, HP Connection Optimizer, HP Privacy Settings, HP Cloud Recovery, HP Client Management Script Library (free download), HSA Fusion for Commercial, HSA Telemetry for Commercial, HP Desktop Support Utilities, HP Smart Support, HP Manageability Integration Kit (free download), HP Connect for Microsoft Endpoint Manager, HP Patch Assistant (free download), HP PC Hardware Diagnostics Windows, HP Services Scan, HP Driver Packs (free download), Edge Customization, myHP with Multicamera support, Poly Lens |
| Color | Jack black |
| Dimensions (WxDxH) | 11.9 in x 12.1 in x 3.9 in |
| Weight | 10.03 lbs |
| General | |
| Type | Personal computer |
| AI Level | AI PC |
| EU Data Act | Https://compliance-euda.hp.com/ |
| Product Form Factor | SFF |
| Built-in Devices | Speaker |
| Sensors | HP Tamper Lock |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Jack black |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 3.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line |
| Slots | 2 (total) / 1 (free) x M.2 Card - 2280 (for internal storage) ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (for wireless module) ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 ¦ 1 (total) / 1 (free) x PCIe 4.0 x1 |
| Interfaces | 1 x USB-C 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 2 - Type A ¦ 1 x headphones/microphone (CTIA and OMTP headset support) ¦ 2 x USB 3.2 Gen 1 - Type A ¦ 1 x DisplayPort 2.1 (1 rear) ¦ 1 x HDMI (1 rear) ¦ 1 x LAN (Gigabit Ethernet) (1 rear) ¦ 3 x USB 2.0 - Type A (3 rear) (two of them with wake functionality) ¦ 1 x audio line-out/line-in (1 rear) |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FIPS 140-2 Level 2, RoHS, WEEE, CECP, SEPA, ErP Lot 3 2013 Ready, Japan PC Green Label, Taiwan Green Mark, Korea Eco-Label, FEMP |
| RAM | |
| Installed Size | 16 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 5600 MT/s |
| Rated Memory Speed | 5600 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 2 (total) / 1 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 16 GB |
| Networking | |
| Ethernet Controller | Intel I219-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 2 |
| Features | Wake on LAN (WoL), PXE 2.1 support |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 90-264 V (50/60 Hz) |
| Power Provided | 280 watt |
| Efficiency | 92% |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Cache Memory | |
| Installed Size | L3 cache - 20 MB |
| Cache Per Processor | 20 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel Graphics Dynamic Video Memory Technology - up to 4 TOPS |
| Video Interfaces | HDMI, DisplayPort |
| HDCP Compatible | Yes |
| Audio Output | |
| Sound Output Mode | Stereo |
| Max Sampling Rate | 192 kHz |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP Hotkey Support, HP PC Hardware Diagnostics UEFI, HP Client Catalog (free download), HP Setup Integrated OOBE, HP Image Assistant (free download), HP Documentation, HP Notifications, HP Connection Optimizer, HP Privacy Settings, HP Cloud Recovery, HP Client Management Script Library (free download), HSA Fusion for Commercial, HSA Telemetry for Commercial, HP Desktop Support Utilities, HP Smart Support, HP Manageability Integration Kit (free download), HP Connect for Microsoft Endpoint Manager, HP Patch Assistant (free download), HP PC Hardware Diagnostics Windows, HP Services Scan, HP Driver Packs (free download), Edge Customization, myHP with Multicamera support, Poly Lens |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 11.9 in |
| Depth | 12.1 in |
| Height | 3.9 in |
| Weight | 10.03 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 19.6 in |
| Shipping Depth | 5.2 in |
| Shipping Height | 9.3 in |
| Shipping Weight | 13.05 lbs |
| Keyboard | |
| Keyboard Name | HP 125 v2 |
| Localization & Layout | US |
| Features | Copilot key |
| Mouse | |
| Mouse Name | HP 125 |
| Processor / Chipset | |
| CPU | Intel Core Ultra 5 (Series 2) 225 |
| Clock Speed | 3.3 GHz |
| Max Turbo Speed | 4.9 GHz |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| L2 cache | 22 MB |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology, 10 Threads |
| Chipset Type | Intel Q870 |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Total Processor Performance Up To (TOPS) | 23 TOPS |
| AI Datatype Support on NPU | INT8 |
| Sparsity Support | Yes |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Windows Studio Effects Support | Yes |
