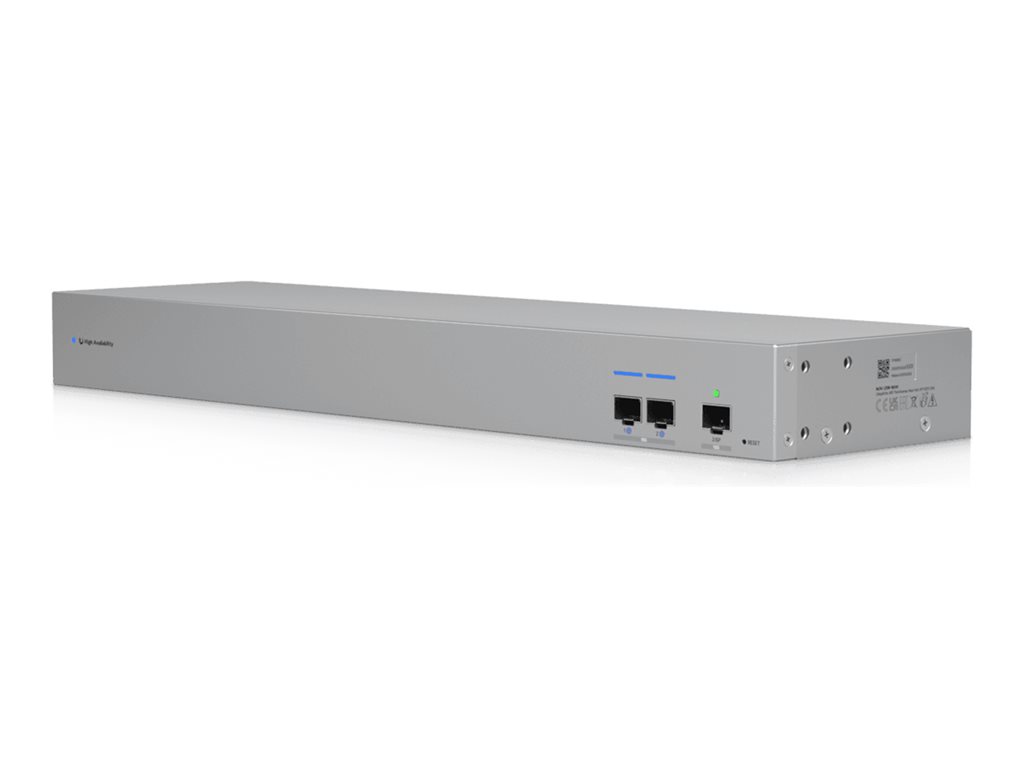

Switch - managed - 1 x 10/100/1000 + 3 x 100/1000/2.5G/5G/10G - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Ubiquiti UniFi WAN Switch - switch - managed - rack-mountable |
| Device Type | Switch - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 5 Gigabit Ethernet / 2.5 Gigabit Ethernet / Gigabit Ethernet |
| Ports | 1 x 10/100/1000 + 3 x 100/1000/2.5G/5G/10G |
| Performance | Switching capacity: 20 Gbps ¦ Non-blocking switching throughput: 10 Gbps ¦ Forwarding rate: 15 Mpps |
| Features | SGCC steel housing, 22KV ESD Protector (contact discharge), 16KV ESD Protector (air-gap discharge), reset button |
| Power | AC 100-240 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.4 in x 4.7 in x 1.7 in |
| Weight | 4.85 lbs |
| General | |
| Device Type | Switch - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 5 Gigabit Ethernet / 2.5 Gigabit Ethernet / Gigabit Ethernet |
| Ports | 1 x 10/100/1000 + 3 x 100/1000/2.5G/5G/10G |
| Performance | Switching capacity: 20 Gbps ¦ Non-blocking switching throughput: 10 Gbps ¦ Forwarding rate: 15 Mpps |
| Features | SGCC steel housing, 22KV ESD Protector (contact discharge), 16KV ESD Protector (air-gap discharge), reset button |
| Status Indicators | System, Ethernet link/activity |
| Expansion / Connectivity | |
| Interfaces | 1 x 10/100/1000 Base-T RJ-45 ¦ 3 x 100/1000/2.5G/5G/10G SFP+ |
| Miscellaneous | |
| Included Accessories | 2 x power cords, 4 foot pads |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC, IC, NDAA |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 4.7 in |
| Height | 1.7 in |
| Weight | 4.85 lbs |
