Switch - L3 - managed - 10 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 2 x 10 Gigabit SFP+ - rack-mountable - PoE++ (400 W)
| Main Specifications | |
|---|---|

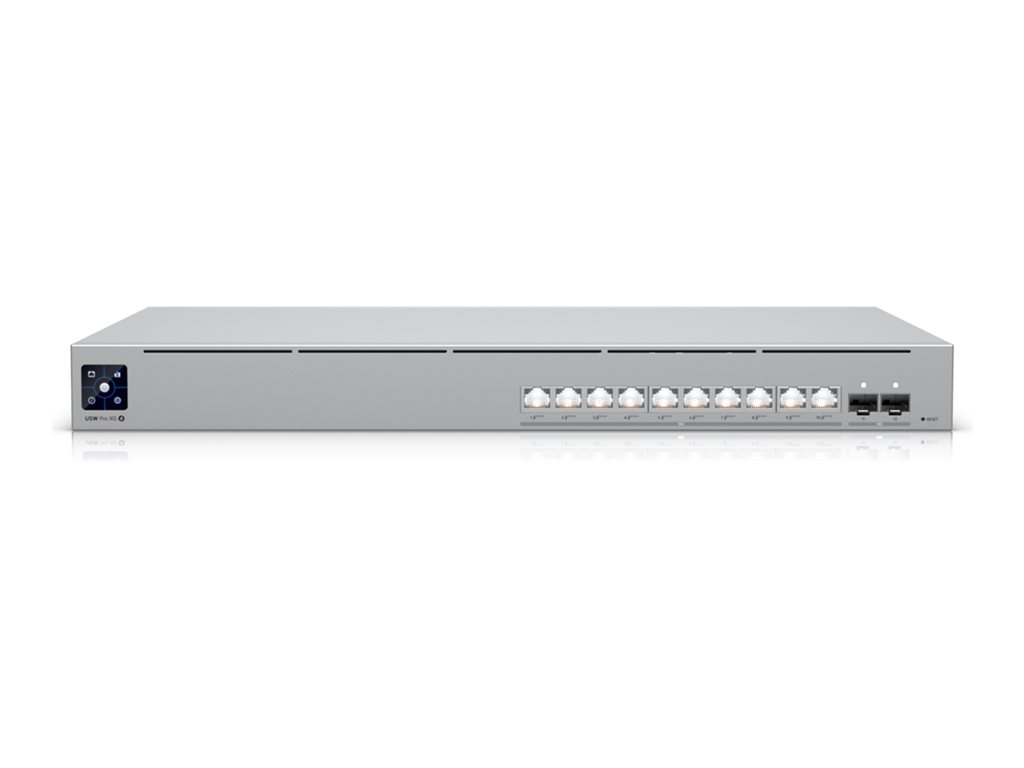

| Product Description | Ubiquiti UniFi Switch Pro XG 10 PoE - switch - 10 ports - managed - rack-mountable |
| Device Type | Switch - 10 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 5 Gigabit Ethernet / 2.5 Gigabit Ethernet / Gigabit Ethernet |
| Ports | 10 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 400 W |
| Performance | Non-blocking switching throughput: 120 Gbps ¦ Switching capacity: 240 Gbps ¦ Forwarding rate: 179 Mpps ¦ Packet buffer size: 2 MB |
| Capacity | Maximum number of VLANs: 1000 ¦ ARP entries: 12000 ¦ IPv4 routes: 12000 ¦ Access lists: 128 |
| MAC Address Table Size | 32000 entries |
| Routing Protocol | STP, RSTP |
| Features | Etherlighting ports, reset button, safety latch, DHCP server, DHCP relay, Inter-VLAN Routing, static routing, LACP port aggregation, QoS, advanced IGMP configuration, IGMP snooping, 802.1x authentication, MAC address authentication, Device isolation with ACLs, DHCP snooping, DHCP guardian, egress rate limit, flow control, Storm Control, multicast/broadcast rate limiting, MAC address blocking, IP based access filter, port isolation, port mirroring, Jumbo Frames support, LLDP-MED, Voice VLAN, loop protection, SGCC steel housing, 30KV ESD Protector (contact discharge), 30KV ESD Protector (air-gap discharge), LED status indicators |
| Compliant Standards | IEEE 802.3bt Type 4, IEEE 802.1x |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 11.2 in x 1.7 in |
| Weight | 10.14 lbs |
| General | |
| Device Type | Switch - 10 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 5 Gigabit Ethernet / 2.5 Gigabit Ethernet / Gigabit Ethernet |
| Ports | 10 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 400 W |
| Performance | Non-blocking switching throughput: 120 Gbps ¦ Switching capacity: 240 Gbps ¦ Forwarding rate: 179 Mpps ¦ Packet buffer size: 2 MB |
| Capacity | Maximum number of VLANs: 1000 ¦ ARP entries: 12000 ¦ IPv4 routes: 12000 ¦ Access lists: 128 |
| MAC Address Table Size | 32000 entries |
| Routing Protocol | STP, RSTP |
| Features | Etherlighting ports, reset button, safety latch, DHCP server, DHCP relay, Inter-VLAN Routing, static routing, LACP port aggregation, QoS, advanced IGMP configuration, IGMP snooping, 802.1x authentication, MAC address authentication, Device isolation with ACLs, DHCP snooping, DHCP guardian, egress rate limit, flow control, Storm Control, multicast/broadcast rate limiting, MAC address blocking, IP based access filter, port isolation, port mirroring, Jumbo Frames support, LLDP-MED, Voice VLAN, loop protection, SGCC steel housing, 30KV ESD Protector (contact discharge), 30KV ESD Protector (air-gap discharge), LED status indicators |
| Compliant Standards | IEEE 802.3bt Type 4, IEEE 802.1x |
| Built-in Devices | 1.3" touch screen display |
| Status Indicators | Link/activity/speed, VLAN, port location |
| Expansion / Connectivity | |
| Interfaces | 10 x 100/1000/2.5G/5G/10GBase-T (PoE++) RJ-45 90 W ¦ 2 x 10Gbit LAN SFP+ |
| Miscellaneous | |
| Included Accessories | Mounting brackets, power cord |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC, IC, NDAA |
| Power | |
| Power Device | External power adapter |
| Power Provided | 550 watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Features | DC power backup |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 11.2 in |
| Height | 1.7 in |
| Weight | 10.14 lbs |
