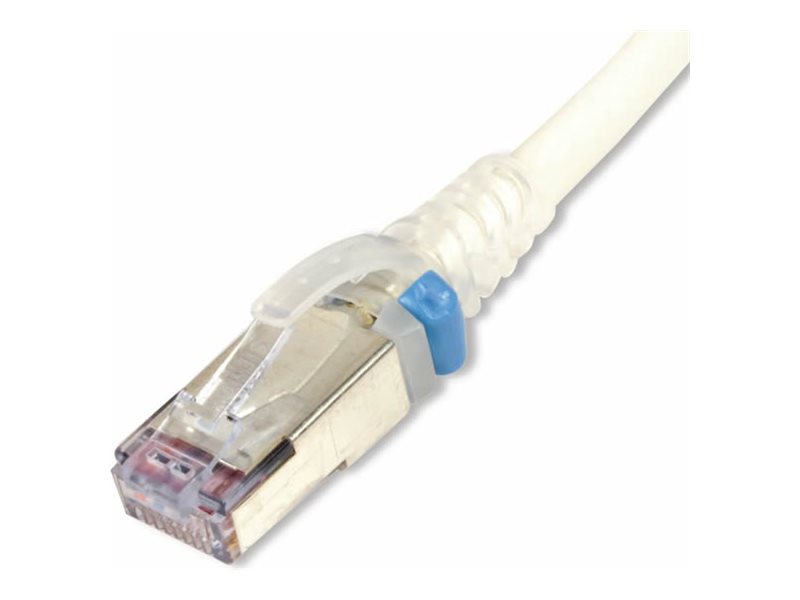

Patch cable - RJ-45 (M) crimp to RJ-45 (M) crimp - 10.67 m - 0.2 in - UTP - CAT 6 - CM - molded, snagless, stranded copper, modular - blue
| Main Specifications | |
|---|---|
| Product Description | Siemon SkinnyPatch patch cable - 10.67 m - blue |
| Type | Patch cable - CAT 6 - CM |
| Technology | UTP |
| Wiring Scheme | T568A/B |
| Features | Molded, snagless, stranded copper, modular, strain relief, bare copper conductors, clear connector boots, 360° crimp, Power over HDBASE-T (PoH), flame resistant |
| Cable Length | 10.67 m |
| Diameter | 0.2 in |
| Connector | RJ-45 - male - crimp |
| Connector (Second End) | RJ-45 - male - crimp |
| Color | Blue |
| Image Color Disclaimer | The displayed product image may be a different color |
| General | |
| Network Cable Type | Patch cable - CAT 6 - CM |
| Technology | UTP |
| Wiring Scheme | T568A/B |
| American Wire Gauge (AWG) | 28 |
| Conductor Resistance | 20 Ohm |
| Plated Connector | Gold |
| Features | Molded, snagless, stranded copper, modular, strain relief, bare copper conductors, clear connector boots, 360° crimp, Power over HDBASE-T (PoH), flame resistant |
| Cable Length | 10.67 m |
| Diameter | 0.2 in |
| Weight | 1.4 oz |
| Color | Blue |
| Image Color Disclaimer | The displayed product image may be a different color |
| Miscellaneous | |
| Compliant Standards | cUL, IEC 60603-7, RoHS, UL 94 V-0, IEC 60332-1, REACH, IEC 61156-6, IEC 61034, ANSI/TIA-1096-A, IEC 60754, ISO/IEC 11801-1 Class E, ANSI/TIA-568.2-E Cat 6 |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 167 °F |
| Connectivity | |
| Connector | RJ-45 - male - crimp |
| Connector (Second End) | RJ-45 - male - crimp |
