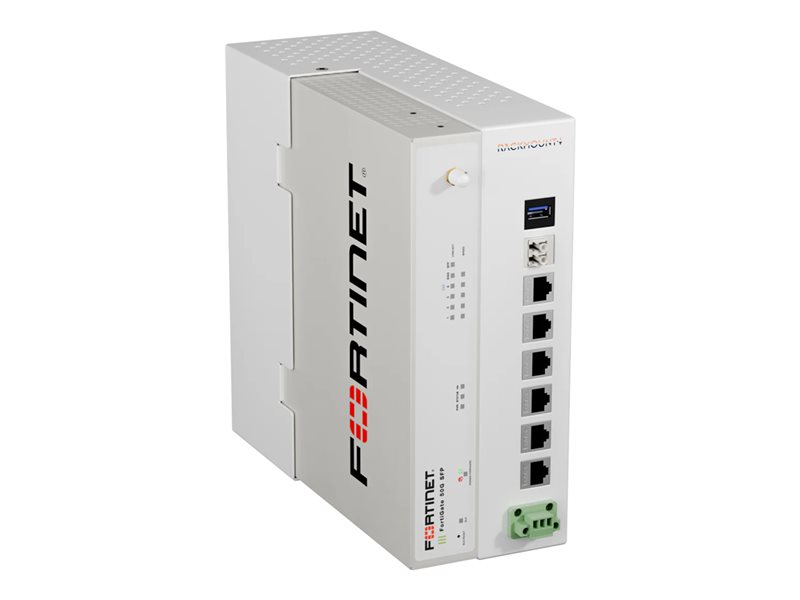

Network device mounting kit - 18V to 72V - DIN rail mountable - signal white
| Main Specifications | |
|---|---|
| Product Description | Rackmount.IT network device mounting kit - 18V to 72V |
| Product Type | Network device mounting kit - 18V to 72V |
| Placing / Mounting | DIN rail mountable |
| Package Content | DIN rail clip, shielded cables, shielded couplers |
| Dimensions (WxDxH) | 8.7 in x 3.5 in x 9 in |
| Weight | 3.75 lbs |
| Color | Signal white |
| General | |
| Product Type | Network device mounting kit - 18V to 72V |
| Placing / Mounting | DIN rail mountable |
| Package Content | DIN rail clip, shielded cables, shielded couplers |
| Width | 8.7 in |
| Depth | 3.5 in |
| Height | 9 in |
| Weight | 3.75 lbs |
| Enclosure Color | Signal white |
| Miscellaneous | |
| Features | Custom cut-outs for ventilation, internal DC-DC power converter, overload protection, short circuit protection, overvoltage protection, 2:1 wide input range, 1500 V AC I/O isolation, EMI filtering, low ripple noise, 83 kHz fixed switching frequency, 12 V DC output voltage, 2.5 A current rating, 30 W rated power, 5000 m operating altitude, 18-72 V input range |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
