Video/audio/infrared/serial extender - transmitter - HDMI, DM Essentials - over CATx - up to 230 ft
| Main Specifications | |
|---|---|

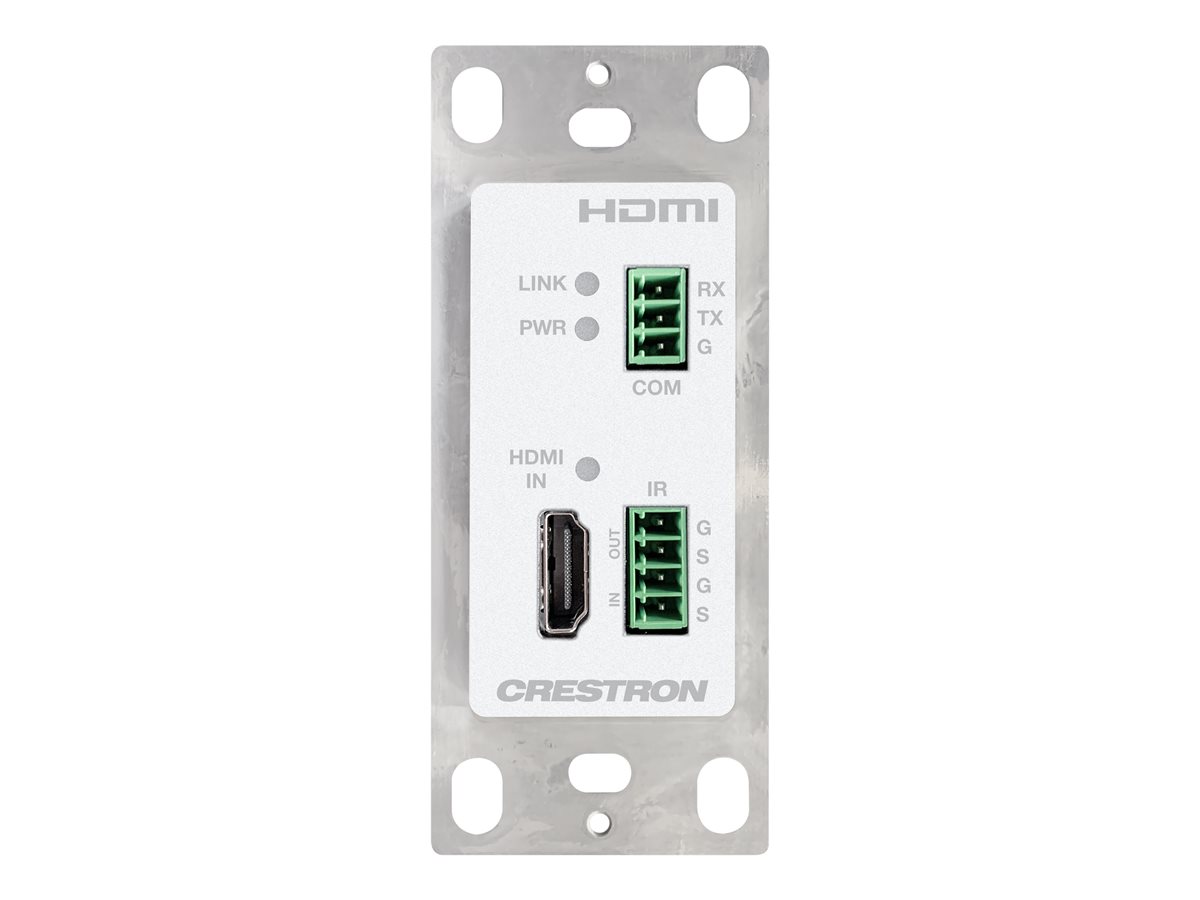

| Product Description | Crestron DM Essentials HD-TXC-4KZ-101-1G-W - video/audio/infrared/serial extender - HDMI, DM Essentials |
| Device Type | Video/audio/infrared/serial extender (transmitter) |
| Form Factor | In-wall mountable |
| Data Link Protocol | HDMI, DM Essentials |
| Transmission Medium | CATx |
| Max Transfer Distance | 230 ft |
| Power | AC 100-240 V - power adapter not included |
| Dimensions (WxDxH) | 1.7 in x 2.2 in x 4.1 in |
| Weight | 5.54 oz |
| General | |
| Device Type | Video/audio/infrared/serial extender (transmitter) |
| Form Factor | In-wall mountable |
| Color | White |
| Expansion / Connectivity | |
| Interfaces | 1 x IR (input / output) - 4 pin terminal block ¦ 1 x RS-232 (bi-directional) - 3 pin terminal block ¦ 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x DM Essentials (output) - RJ-45 female |
| Miscellaneous | |
| Included Accessories | Wall plate, mounting bracket |
| Compliant Standards | Intertek, IC, FCC Part 15 B |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, DM Essentials |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Max Video Bandwidth | 600 MHz |
| Max Transfer Distance | 230 ft |
| Status Indicators | Link, power, HDMI input, DM output |
| Features | 4K60 8-bit 4:4:4 compatible, Point-to-Point Protocol (PPP), HDR10+ support, 1-gang, HDR10 support, Dolby Vision HDR support, 8-bit Deep Color support, 12-bit Deep Color support, Dolby Digital support, Dolby Digital EX support, Dolby Digital Plus support, Dolby TrueHD support, Dolby Atmos support, DTS support, DTS ES support, DTS 96/24 support, DTS-HD support, DTS-HD Master Audio support, DTS:X support, LPCM support, EDID Pass-Through, CEC passthrough, metal housing |
| Compliant Standards | HDCP 2.3 |
| Power | |
| Power Device | External power adapter (not included) |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 1.7 in |
| Depth | 2.2 in |
| Height | 4.1 in |
| Weight | 5.54 oz |
