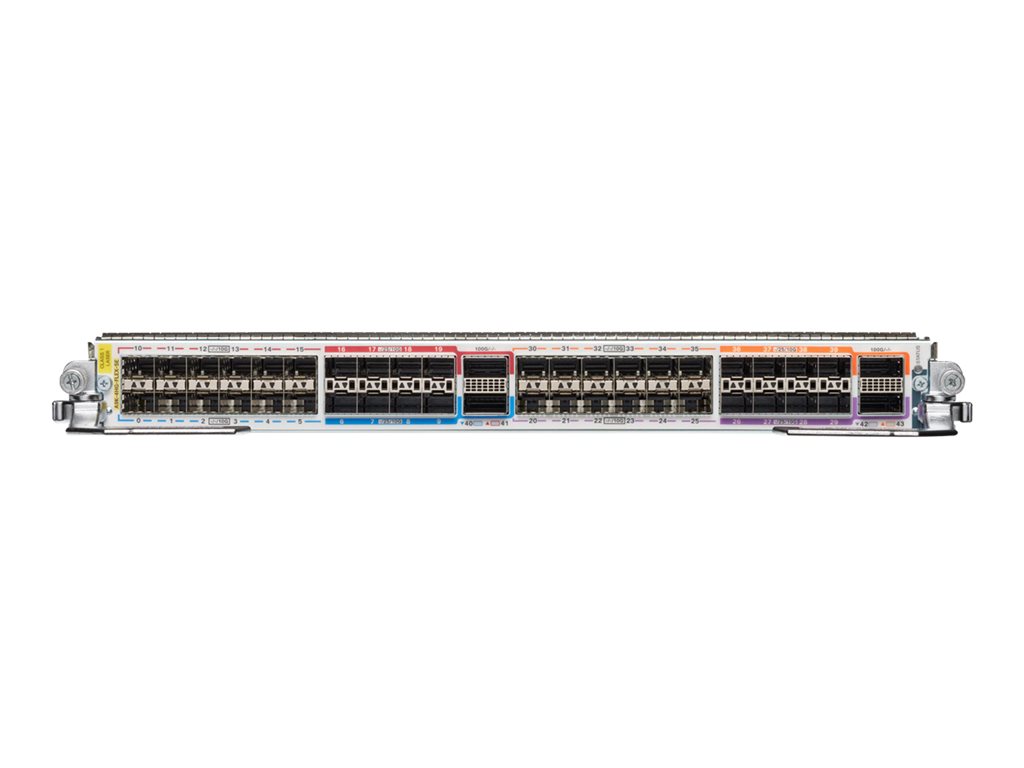

Expansion module - 100 Gigabit QSFP28 / 40 Gigabit QSFP28 x 4 + 10/25 Gigabit SFP28 x 16 + 10 Gigabit SFP+ x 24
| Main Specifications | |
|---|---|
| Product Description | Cisco - expansion module - 100 Gigabit QSFP28 / 40 Gigabit QSFP28 x 4 + 10/25 Gigabit SFP28 x 16 + 10 Gigabit SFP+ x 24 |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Ports | 100 Gigabit QSFP28 / 40 Gigabit QSFP28 x 4 + 10/25 Gigabit SFP28 x 16 + 10 Gigabit SFP+ x 24 |
| Dimensions (WxDxH) | 15.9 in x 24 in x 1.7 in |
| Weight | 18.74 lbs |
| Cabling Type | Ethernet 10GBase-X, Ethernet 25GBase-X, Ethernet 40GBase-X, Ethernet 100GBase-X |
| Data Link Protocol | 10GbE, 25GbE, 40GbE, 100GbE |
| Compliant Standards | IEEE 802.3ae, IEEE 802.3ba, IEEE 802.1x, ITU-T Y.1731, IEEE 802.3ah, IEEE 802.1ag |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 4 x 40Gb Ethernet/100Gb Ethernet - QSFP28 ¦ 16 x 10Gb Ethernet/25Gb Ethernet - SFP28 ¦ 24 x 10Gb Ethernet - SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | EN 300 386, ETSI 300 019-1-1, ETSI 300 019-2-3, ETSI 300 019-3-1, EN55022, EN 55032, EN55024, EN 55035, EN50082-1, EN 61000-6-1, FCC Class A certified, ICES-003 Class A, AS/NZS CISPR 32 Class A, CISPR 22 Class A, CISPR 32 Class A, EN 55022 Class A, EN 55032 Class A, VCCI Class A, CNS 13438 Class A, KN32 Class A, IEC/EN 61000-3-3, EN 50121-4, EN 50121-3-2, IEC/EN 61000-4-2, KN35, IEC/UL/CSA/EN 60950-1, IEC/EN 60825, ACA TS001, AS/NZS 60950, FDA, NEBS, SR-3580 NEBS Level 3, GR-1089-CORE, GR-63-CORE, IEC 61000-3-2, EN 61000-3-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11 |
| Networking | |
| Ports | 100 Gigabit QSFP28 / 40 Gigabit QSFP28 x 4 + 10/25 Gigabit SFP28 x 16 + 10 Gigabit SFP+ x 24 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10GBase-X, Ethernet 25GBase-X, Ethernet 40GBase-X, Ethernet 100GBase-X |
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Remote Management Protocol | CLI, OAM |
| Features | Full duplex mode, CRC support, VCCV, MPLS support, IP SLAs, NetFlow, OIR support, 802.1x authentication, flow control |
| Compliant Standards | IEEE 802.3ae, IEEE 802.3ba, IEEE 802.1x, ITU-T Y.1731, IEEE 802.3ah, IEEE 802.1ag |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% |
| Dimensions & Weight | |
| Width | 15.9 in |
| Depth | 24 in |
| Height | 1.7 in |
| Weight | 18.74 lbs |
