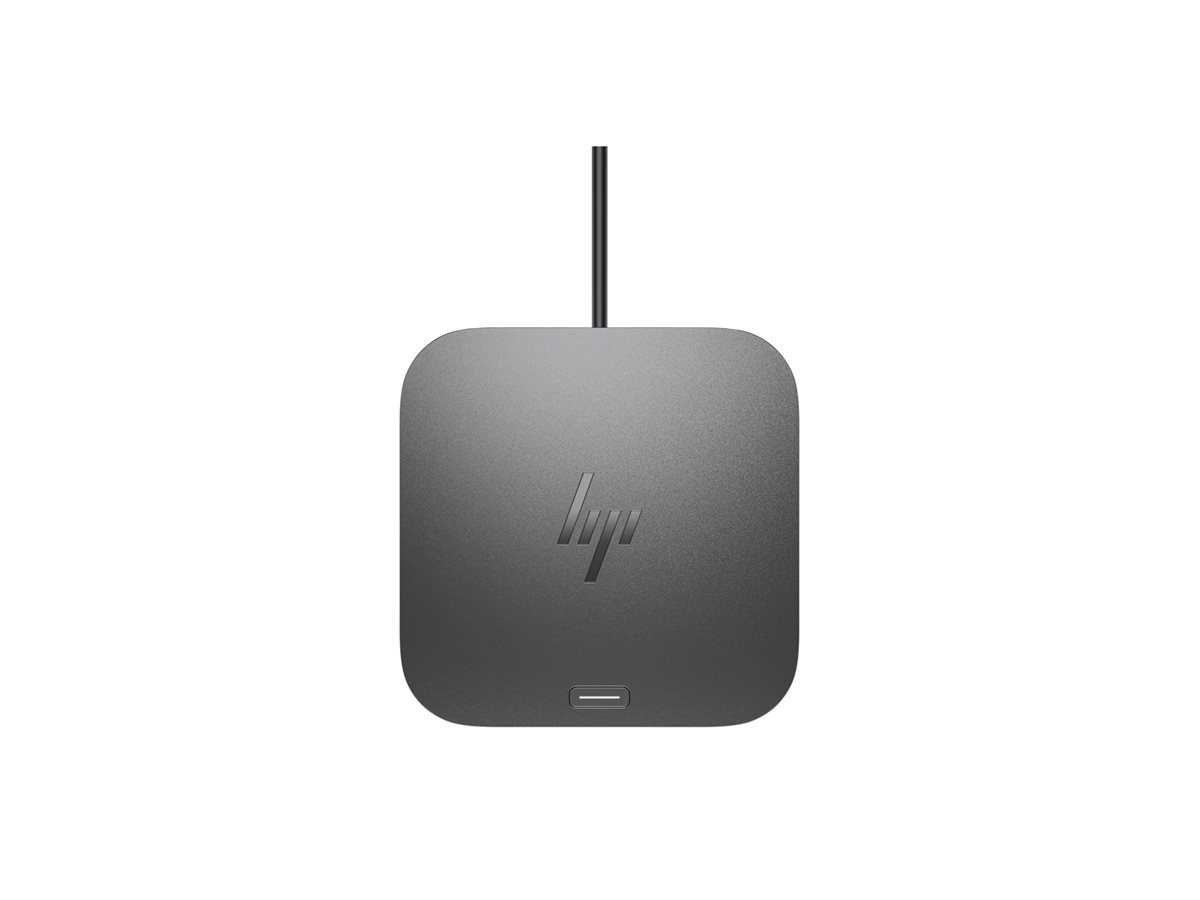

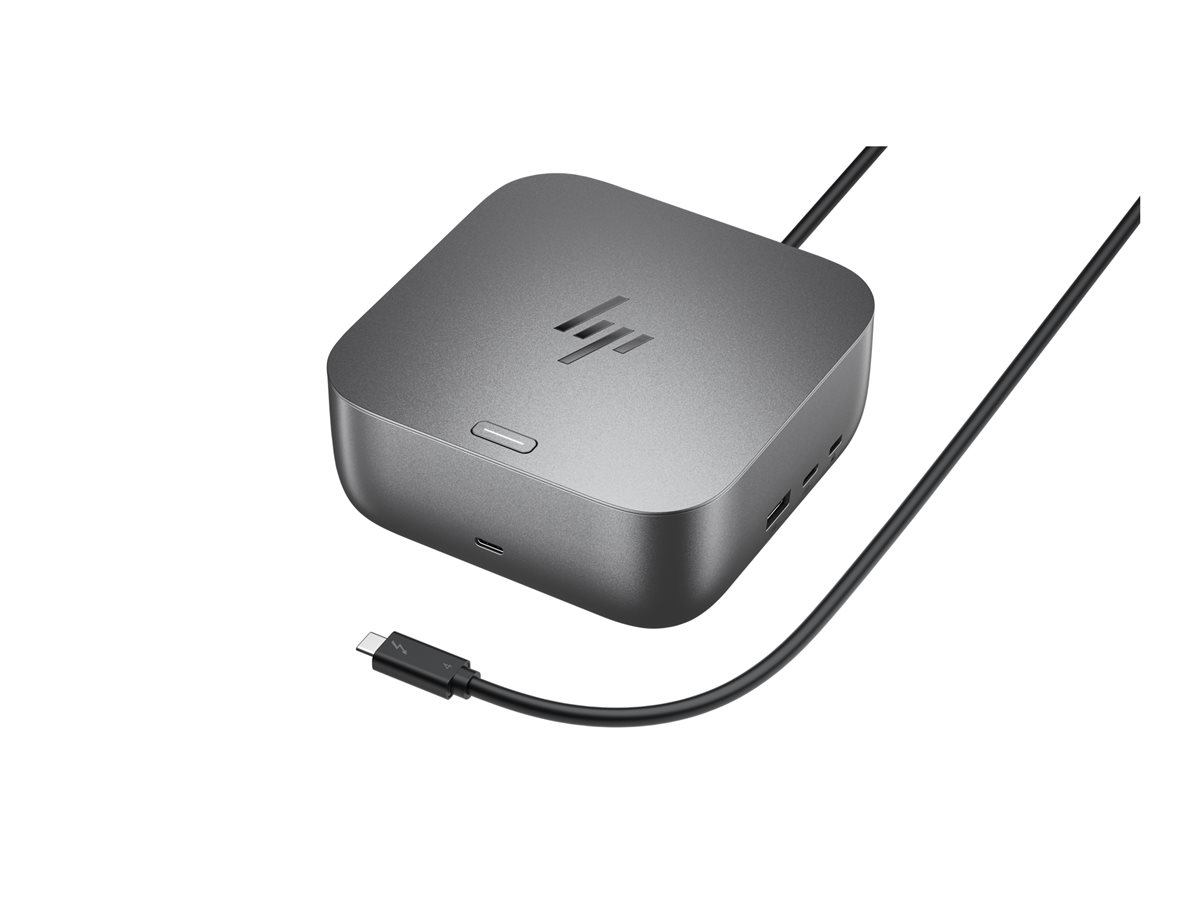

Docking station - Thunderbolt 4 - 2 x DP, HDMI - 1GbE, 2.5GbE - 120 Watt - United States - for P/N: 63B28AA, 63B31AA
| Main Specifications | |
|---|---|
| Product Description | HP Thunderbolt Dock G6 - docking station - Thunderbolt 4 - 2 x DP, HDMI - 1GbE, 2.5GbE |
| Product Type | Docking station |
| Docking Interface | Thunderbolt 4 |
| Video Interfaces | 2 x DP, HDMI |
| Dimensions (WxDxH) | 4.8 in x 4.8 in x 1.9 in |
| Weight | 25.6 oz |
| Localization | English / United States |
| Networking | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | Power adapter AC 120/230 V 120 watt Power Provided |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: 63B28AA, 63B31AA |
| General | |
| Product Type | Docking station |
| Width | 4.8 in |
| Depth | 4.8 in |
| Height | 1.9 in |
| Weight | 25.6 oz |
| Localization | English / United States |
| Expansion / Connectivity | |
| Interfaces | 2 x USB-C 3.2 Gen 2 (15 W) ¦ 1 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x network - 2.5GBase-T - RJ-45 ¦ 2 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x Thunderbolt 4/USB4 with Power Delivery (100W) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x Thunderbolt 4 cable - 3.3 ft |
| Features | Security lock slot (cable lock sold separately), LED Light Bar |
| Security Slot Type | Kensington nano security slot |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 120/230 V |
| Power Provided | 120 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Video | |
| Max Resolution Details | 5120 x 2880 - 60 Hz (Single Display) ¦ 2560 x 1440 - 60 Hz (Dual Display) ¦ 1920 x 1080 - 60 Hz (Triple Display) ¦ 2560 x 1440 - 60 Hz (Quad Display) ¦ 1920 x 1080 - 360 Hz (Single Display) |
| System Requirements | |
| OS Required | Microsoft Windows 10 / 11, Apple MacOS, Google Chrome OS, Linux, HP ThinPro |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 15.6 in |
| Shipping Depth | 6.7 in |
| Shipping Height | 3.7 in |
| Compatibility Information | |
| Designed For | P/N: 63B28AA, 63B31AA |
