Graphics card - GeForce RTX 5060 Ti - 8 GB GDDR7 - PCI Express 5.0 - 3 x DisplayPort, HDMI
| Main Specifications | |
|---|---|
| Product Description | ASUS PRIME GeForce RTX 5060 Ti 8GB - graphics card - GeForce RTX 5060 Ti - 8 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti - up to 758 TOPS |
| Memory | 8 GB GDDR7 |
| Memory Speed | 28 Gbps |
| Boost Clock | 2572 MHz |
| Boost Clock (OC) | 2602 MHz |
| CUDA Cores | 4608 |
| Memory Interface | 128-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |

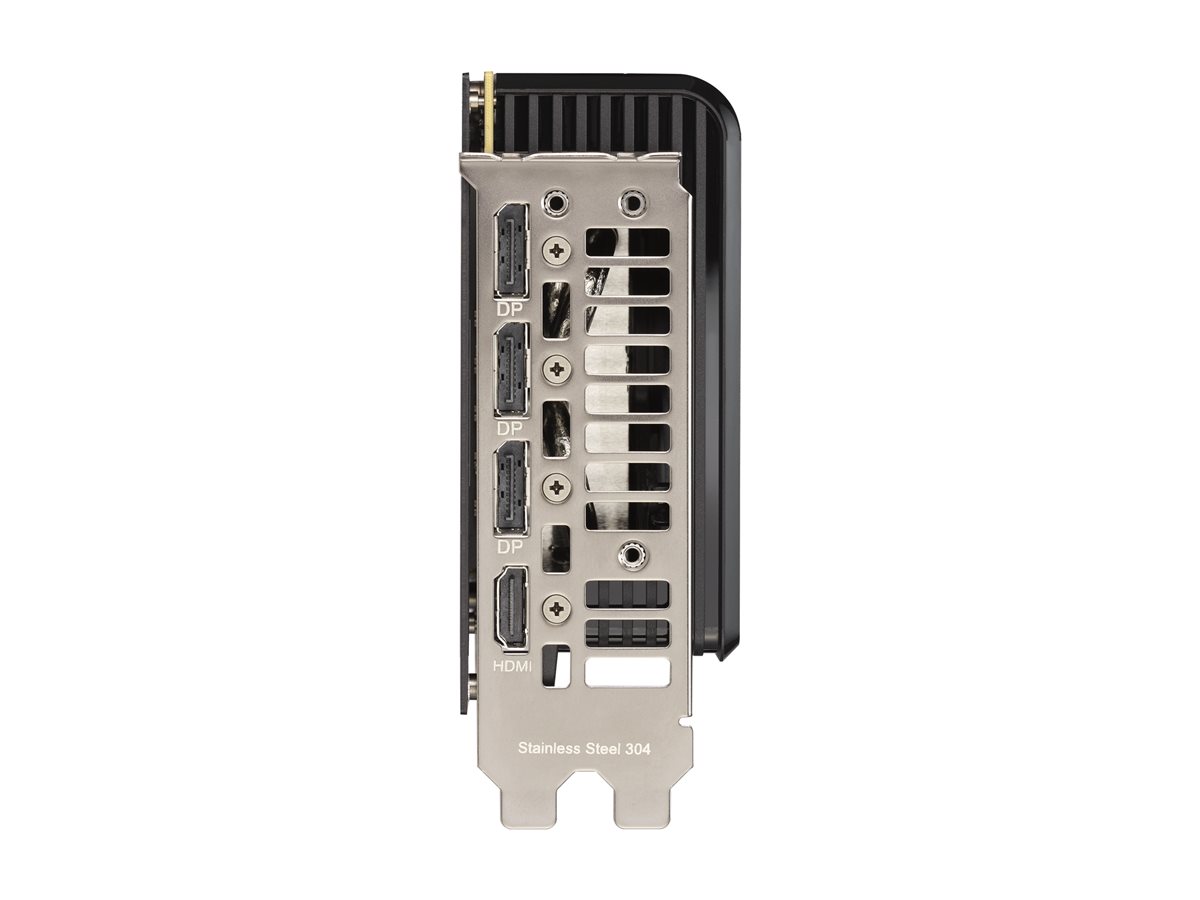

| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | OpenGL 4.6 |
| Dimensions (WxDxH) | 2 in x 12 in x 4.7 in |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti |
| Boost Clock | 2572 MHz |
| Boost Clock (OC) | 2602 MHz |
| CUDA Cores | 4608 |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | OpenGL 4.6 |
| Features | NVIDIA GeForce SFF-Ready, 2.5-slot Fan Cooler, Axial-tech Fan Design, vented backplate, Dual ball Bearing Fans, Dual Bios, NVIDIA Ansel, NVIDIA G-Sync ready, NVIDIA Avatar Cloud Engine (ACE), 5th gen Tensor Cores, 4th gen Ray Tracing Cores, NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4, NVIDIA Reflex 2, 0dB Technology, stainless steel mounting bracket, protection plate, AUTO-EXTREME technology, Triple Fan Design, HDCP |
| Memory | |
| Size | 8 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 28 Gbps |
| Bus Width | 128-bit |
| Miscellaneous | |
| Included Accessories | Graphics card support bracket, hook-and-loop fastener, thank you card |
| Software Included | ASUS GPU Tweak III |
| Compliant Standards | HDCP 2.3, DisplayPort 2.1b |
| Width | 2 in |
| Depth | 12 in |
| Height | 4.7 in |
| System Requirements | |
| Required Power Supply | 550 W |
| Additional Requirements | 8-pin CPU power connector |
| Performance | |
| NPU Performance Up To (TOPS) | 758 TOPS |
