Graphics card - GeForce RTX 5060 Ti - 16 GB GDDR7 - PCIe 5.0 x16 - 3 x DisplayPort, HDMI
| Main Specifications | |
|---|---|

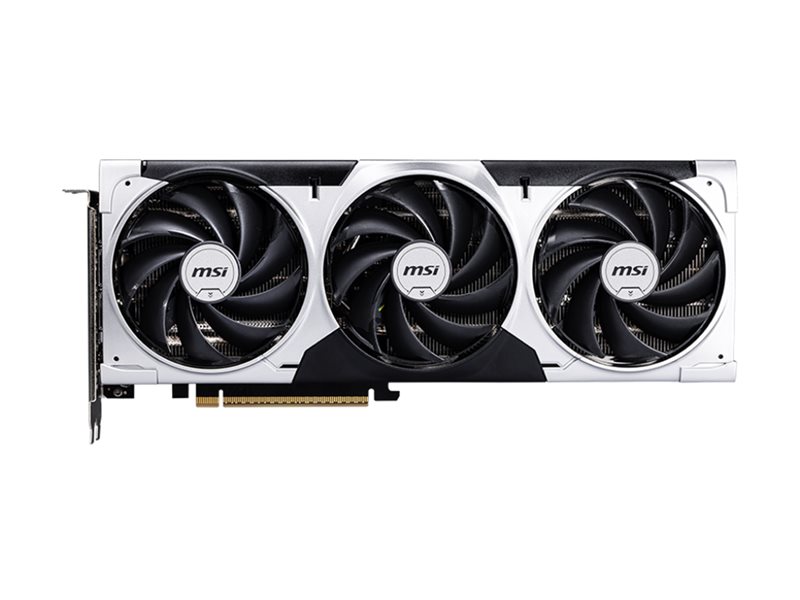

| Product Description | MSI GeForce RTX 5060 Ti 16G VENTUS 3X OC - graphics card - GeForce RTX 5060 Ti - 16 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 (x8 mode) |
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti |
| Memory | 16 GB GDDR7 |
| Memory Speed | 28 Gbps |
| Boost Clock | 2602 MHz |
| CUDA Cores | 4608 |
| Memory Interface | 128-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Dimensions (WxDxH) | 1.7 in x 12 in x 4.8 in |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 (x8 mode) |
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti |
| Boost Clock | 2602 MHz |
| CUDA Cores | 4608 |
| Max Resolution | 7680 x 4320 at 120 Hz |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Features | Triple Fan Design, NVIDIA G-Sync ready, metal backplate, Torx 5.0 Fans, MSI Zero Frozr technology, DrMOS, Custom PCB, NVIDIA Blackwell GPU architecture, 5th gen Tensor Cores, NVIDIA DLSS 4, 4th gen Ray Tracing Cores, NVIDIA Multi Frame Generation, NVIDIA Reflex 2, NVIDIA Frame Warp, NVIDIA Avatar Cloud Engine (ACE), Nvidia Studio, Nvidia Broadcast, 9th Gen NVIDIA Encoder, HDCP |
| Memory | |
| Size | 16 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 28 Gbps |
| Bus Width | 128-bit |
| Miscellaneous | |
| Power Consumption Operational | 180 watt |
| Software Included | MSI Center, GeForce Game Ready Drivers, NVIDIA Studio drivers, MSI Afterburner, MSI APP Player, Norton 360 (30 days trial), Adobe Creative Cloud All Apps (1 month membership) |
| Compliant Standards | DisplayPort 2.1b |
| Width | 1.7 in |
| Depth | 12 in |
| Height | 4.8 in |
| Weight | 30.33 oz |
| Shipping Weight | 2.71 lbs |
| System Requirements | |
| Required Power Supply | 600 W |
| Additional Requirements | 8 pin PCI Express power connector |
