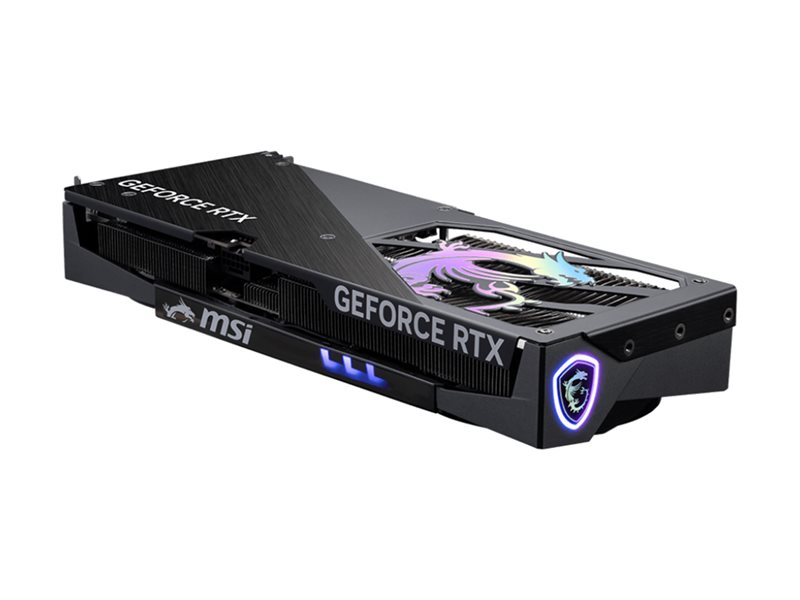

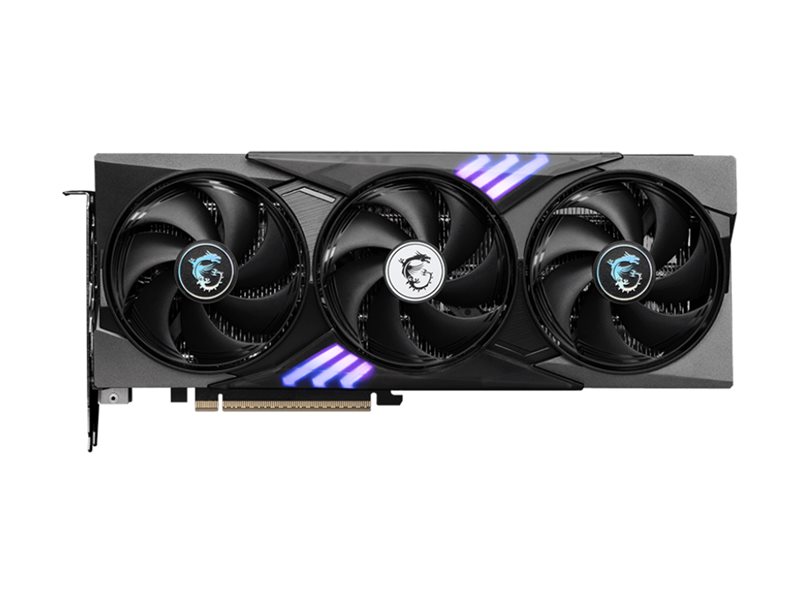

Graphics card - GeForce RTX 5060 Ti - 16 GB GDDR7 - PCIe 5.0 x16 - HDMI, 3 x DisplayPort
| Main Specifications | |
|---|---|
| Product Description | MSI GeForce RTX 5060 Ti 16G GAMING TRIO OC - graphics card - GeForce RTX 5060 Ti - 16 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 (x8 mode) |
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti |
| Memory | 16 GB GDDR7 |
| Memory Speed | 28 Gbps |
| Boost Clock | 2647 MHz |
| CUDA Cores | 4608 |
| Memory Interface | 128-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Dimensions (WxDxH) | 1.7 in x 11.8 in x 4.9 in |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 (x8 mode) |
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti |
| Boost Clock | 2647 MHz |
| CUDA Cores | 4608 |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Features | Core Pipe, Stormforce Fan, nickel plated copper base, metal backplate, Wave Curved 4.0, Air Antegrade Fin 2.0, NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4, NVIDIA Reflex 2, NVIDIA Avatar Cloud Engine (ACE), Nvidia Studio, Nvidia Broadcast, NVIDIA G-Sync ready, Triple Fan Design, TriFrozr 4 Thermal Design, 4th gen Ray Tracing Cores, 5th gen Tensor Cores, NVIDIA Multi Frame Generation, NVIDIA Frame Warp, 9th Gen NVIDIA Encoder, fuse protection, DrMOS, HDCP |
| Memory | |
| Size | 16 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 28 Gbps |
| Bus Width | 128-bit |
| Miscellaneous | |
| Power Consumption Operational | 180 watt |
| Included Accessories | Stand |
| Software Included | MSI Center, MSI Afterburner, MSI APP Player, Norton 360 (30 days trial), Adobe Creative Cloud All Apps (1 month membership) |
| Width | 1.7 in |
| Depth | 11.8 in |
| Height | 4.9 in |
| Weight | 29.77 oz |
| Shipping Weight | 3.05 lbs |
| System Requirements | |
| Required Power Supply | 600 W |
| Additional Requirements | 16 pin PCI Express power connector |
