Server - rack-mountable 4U - 2-way - no CPU - RAM 0 GB - NVMe - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet - no OS - monitor: none
| Main Specifications | |
|---|---|

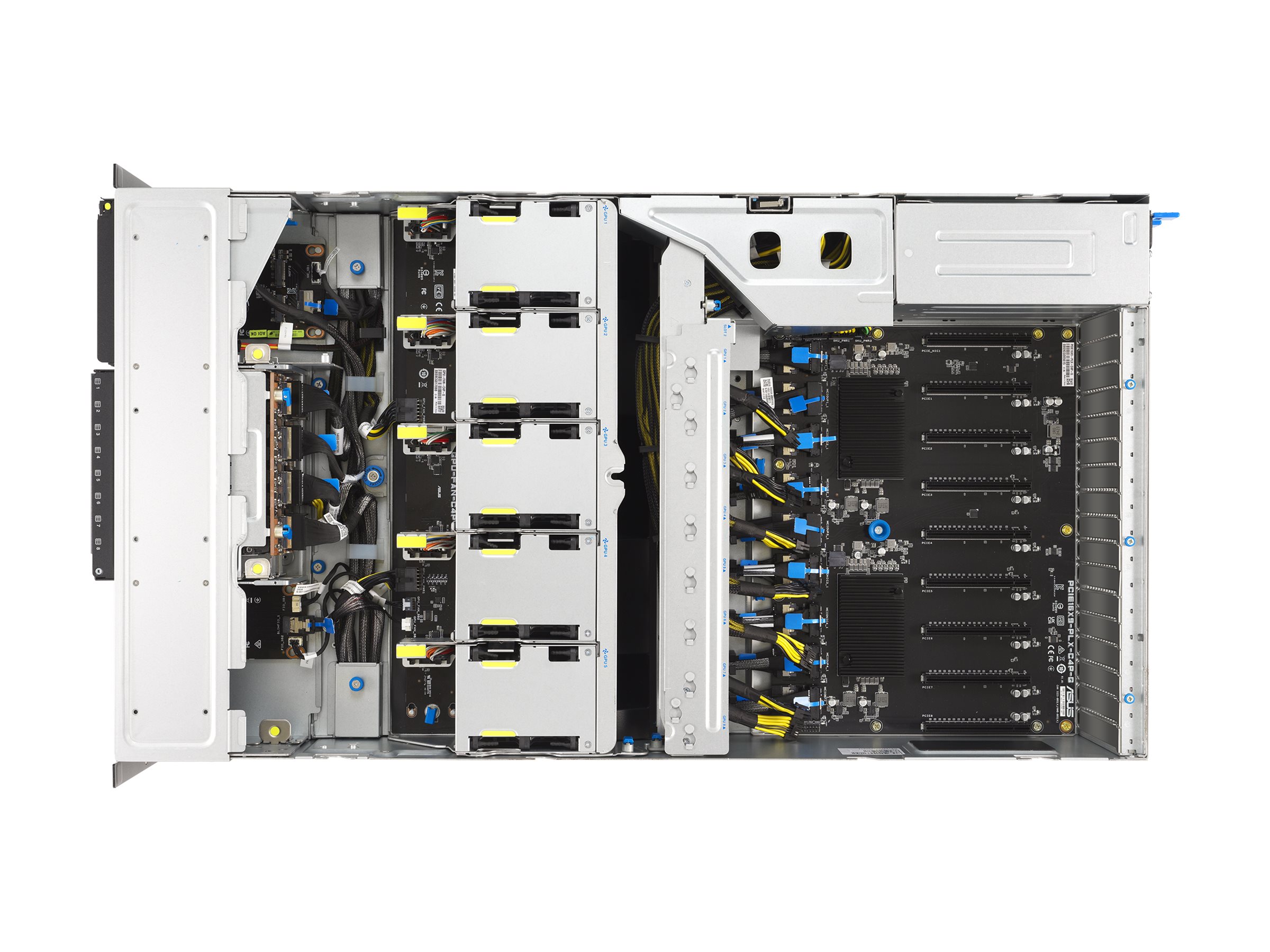

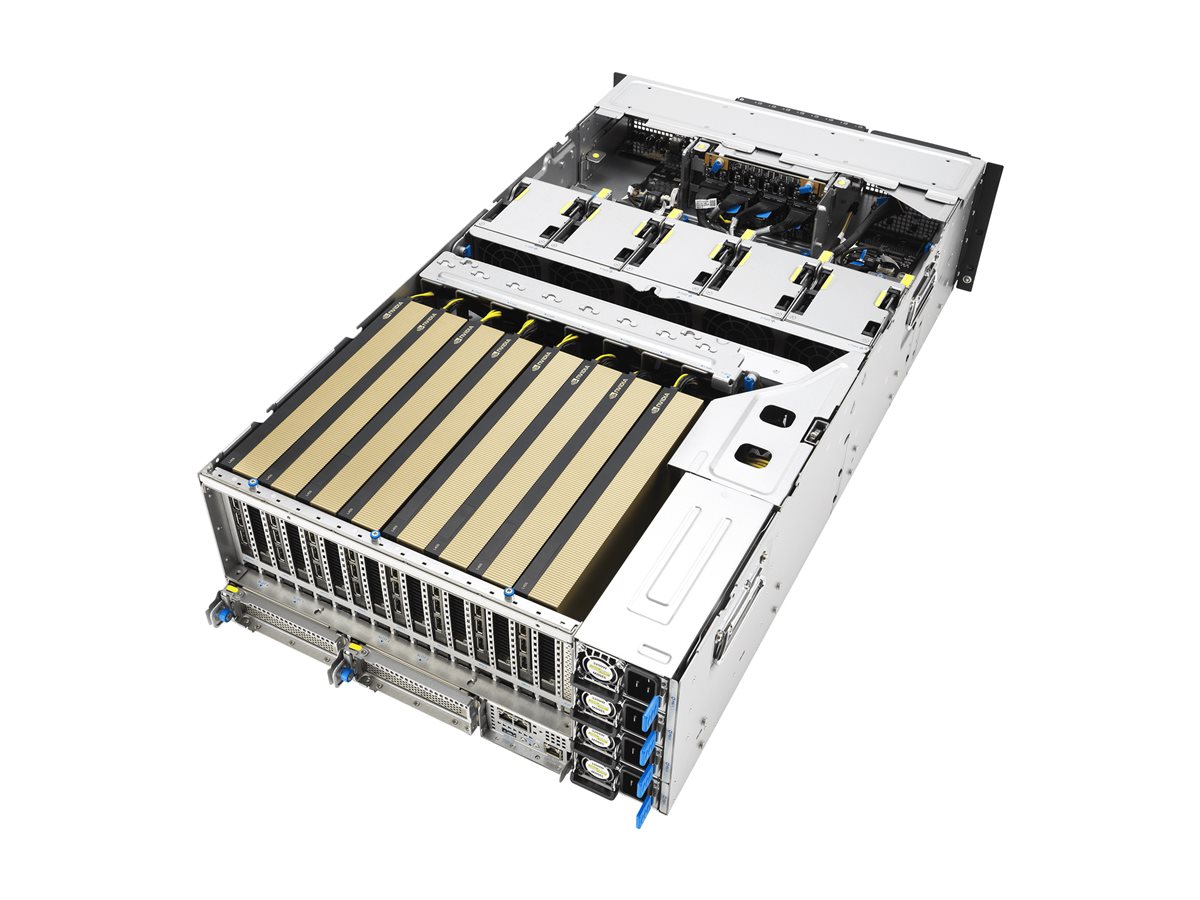

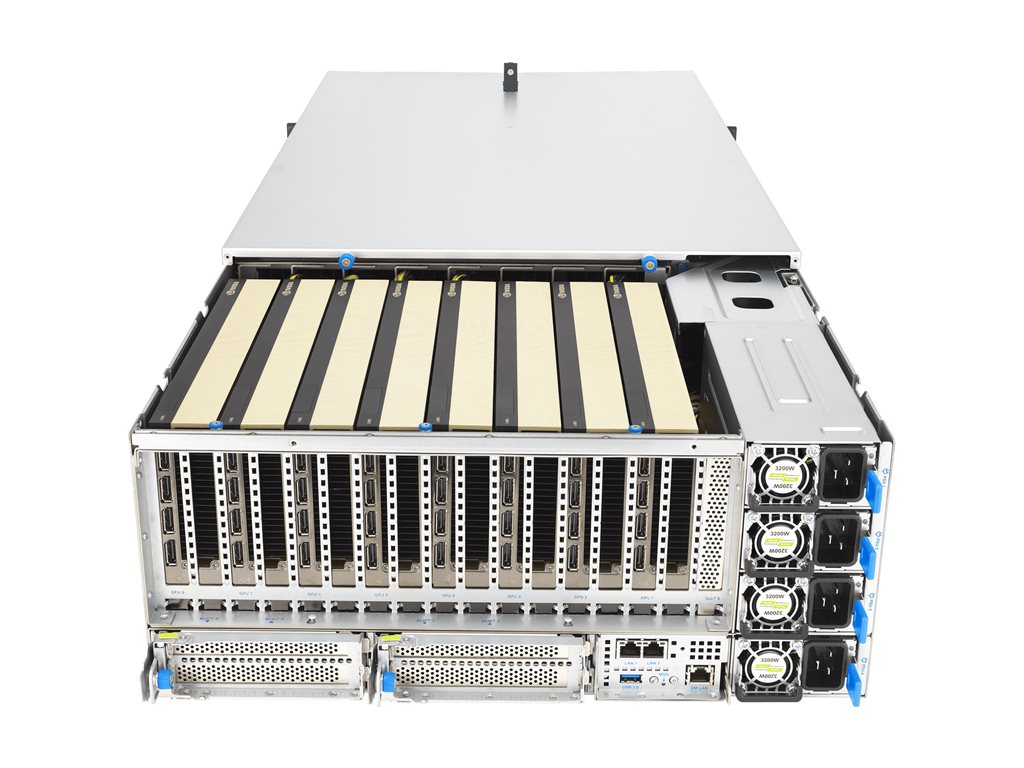

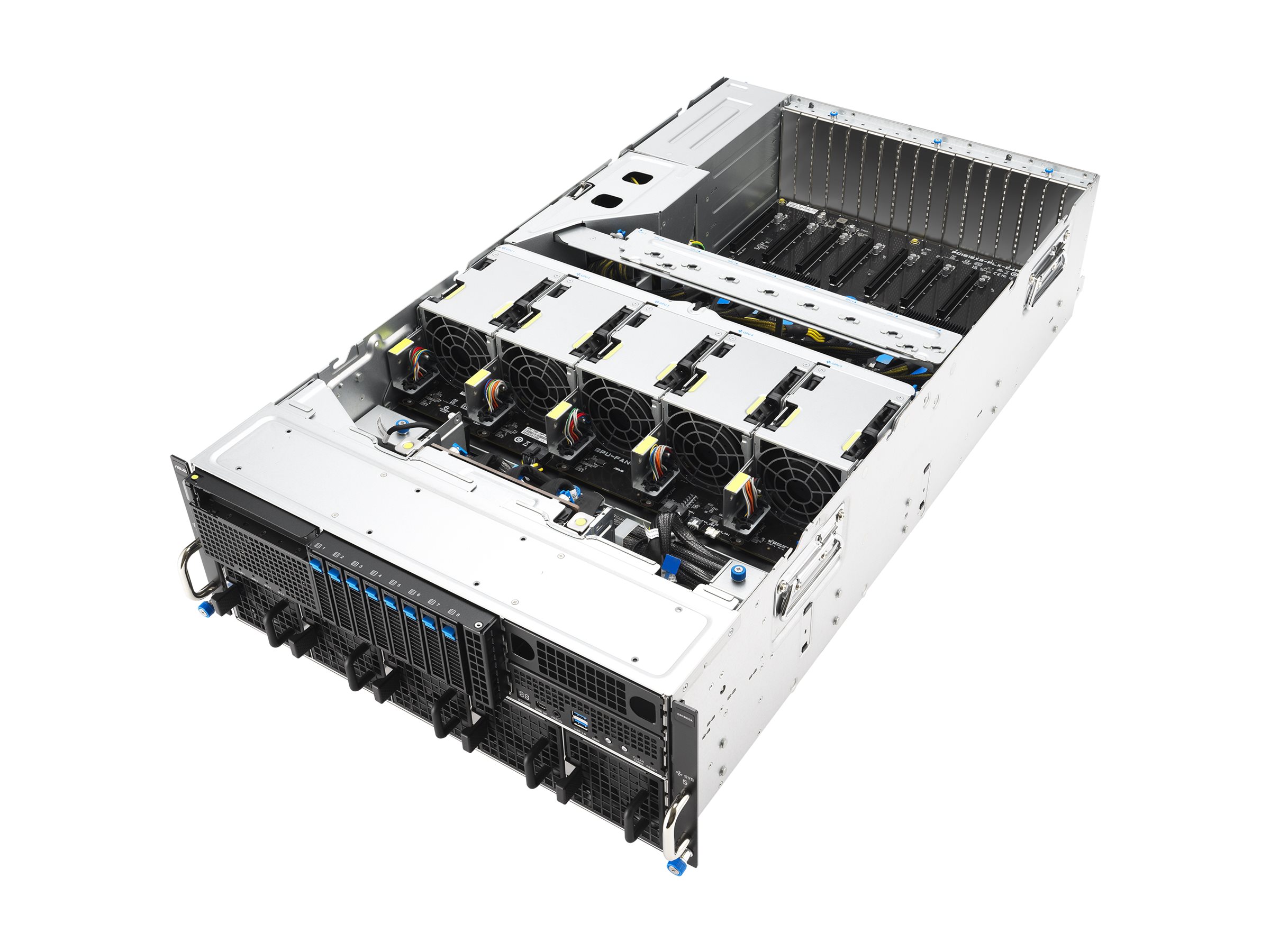

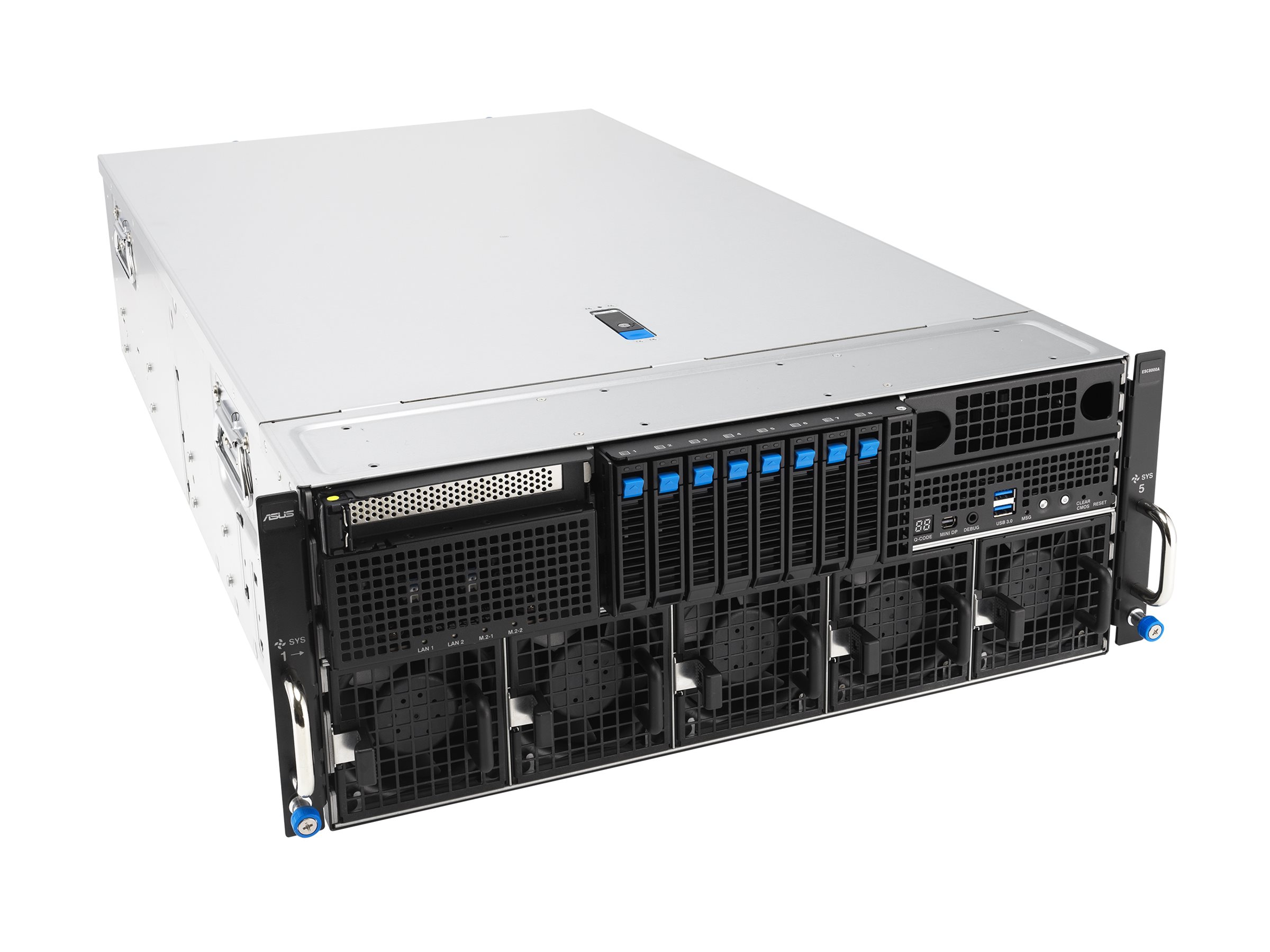

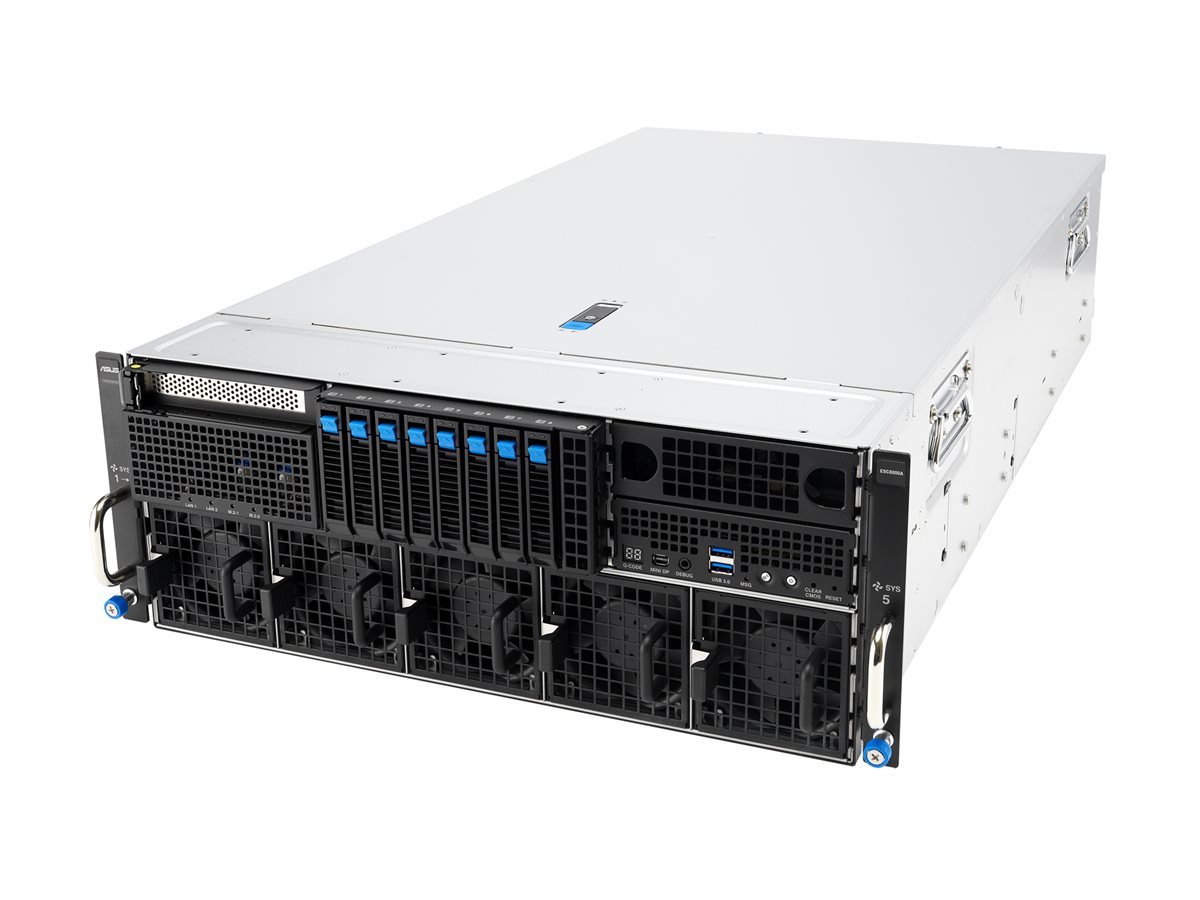

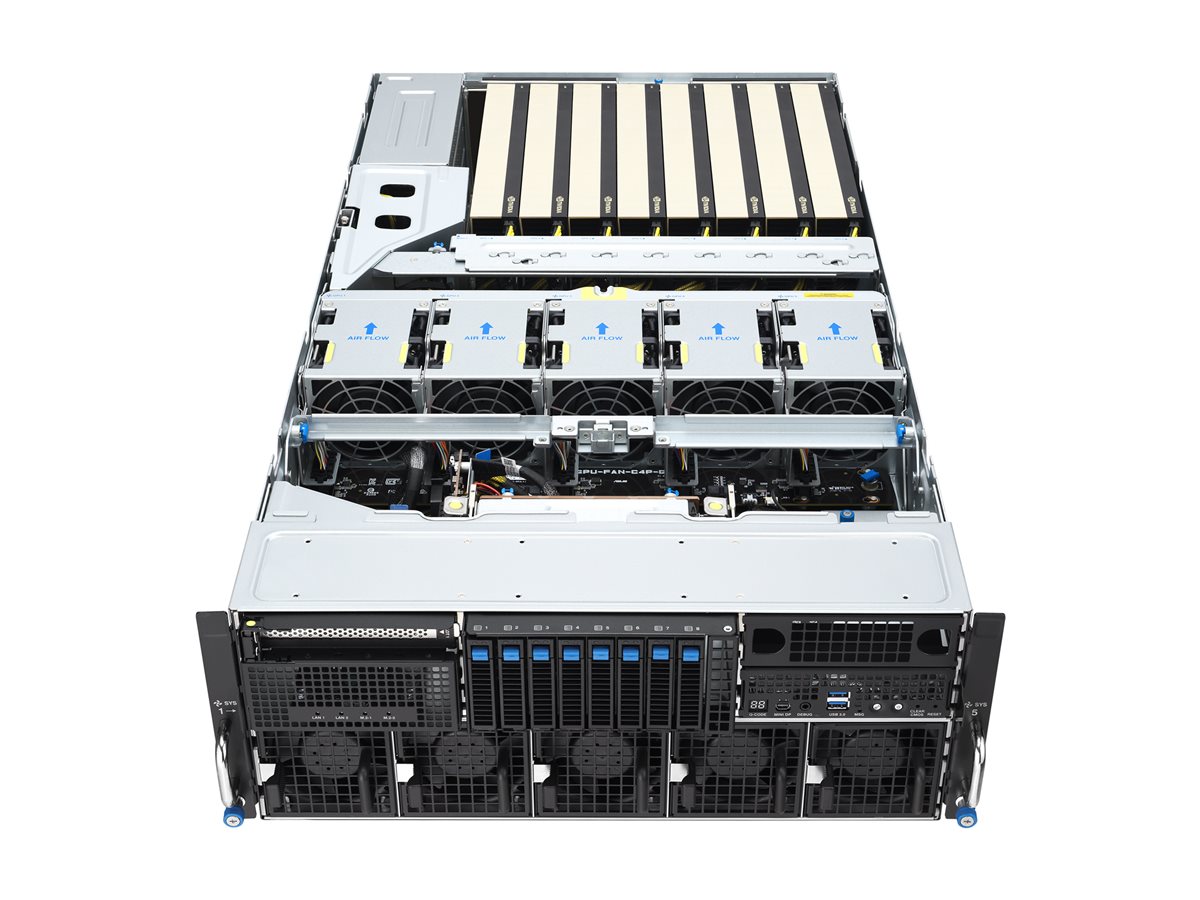

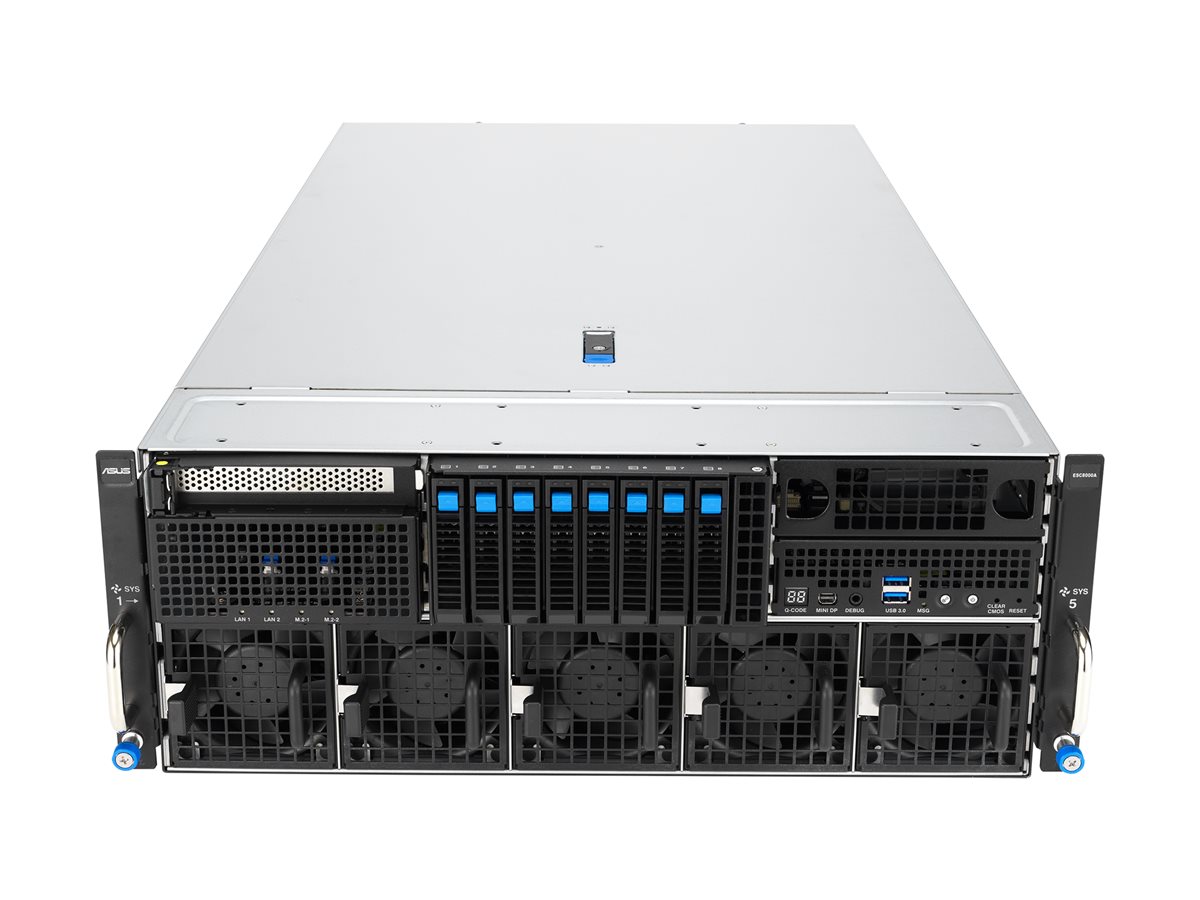

| Product Description | ASUS ESC8000A-E13P - rack-mountable no CPU - 0 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 4U |
| Server Scalability | 2-way |
| Processor | No CPU |
| Processor Socket | 2 x LGA6096 Socket |
| RAM | 0 GB (installed) / 3 TB (max) - DDR5 SDRAM |
| Storage Controller | NVMe |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Networking | 1GbE, 2.5GbE, 10GbE, 5GbE |
| Power | (50/60 Hz) |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Software Included | ASUS Control Center Enterprise |
| Dimensions (WxDxH) | 17.3 in x 31.5 in x 6.9 in |
| Weight | 92.59 lbs |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 4U |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Expansion / Connectivity | |
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" |
| Slots | 2 (total) / 2 (free) x M.2 Card - 22110 (PCIe 5.0 x4 mode) ¦ 8 (total) / 8 (free) x PCIe 5.0 x16 - full-length, full-height ¦ 5 (total) / 5 (free) x PCIe 5.0 x16 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height (x8 mode) |
| Interfaces | 3 x USB 3.2 Gen 1 (2 front, 1 rear) ¦ 1 x management - RJ-45 ¦ 2 x LAN (10Gigabit Ethernet) (2 rear) ¦ 1 x Mini DisplayPort (1 front) |
| Miscellaneous | |
| Compliant Standards | BSMI, CB, FCC Class A certified, RCM |
| RAM | |
| Installed Size | 0 GB (installed) / 3 TB (max) |
| Technology | DDR5 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 24 (empty) |
| Networking | |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | 2 x Intel X710-AT2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 3+1 |
| Installed Qty | 4 |
| Max Supported Qty | 4 |
| Voltage Required | AC 200-240 V (50/60 Hz) |
| Power Provided | 3200 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 95% (non-condensing) |
| Storage Controller | |
| Type | 1 x NVMe |
| Channel Qty | 8 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | ASUS Control Center Enterprise |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 31.5 in |
| Height | 6.9 in |
| Weight | 92.59 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 97.51 lbs |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | 2 x LGA6096 Socket |
