24" large-format printer - color - ink-jet - - 2400 x 1200 dpi - up to 2 ppm (mono) / up to 1 ppm (color) - USB 2.0, LAN, Wi-Fi(ac), USB host - cutter
| Main Specifications | |
|---|---|

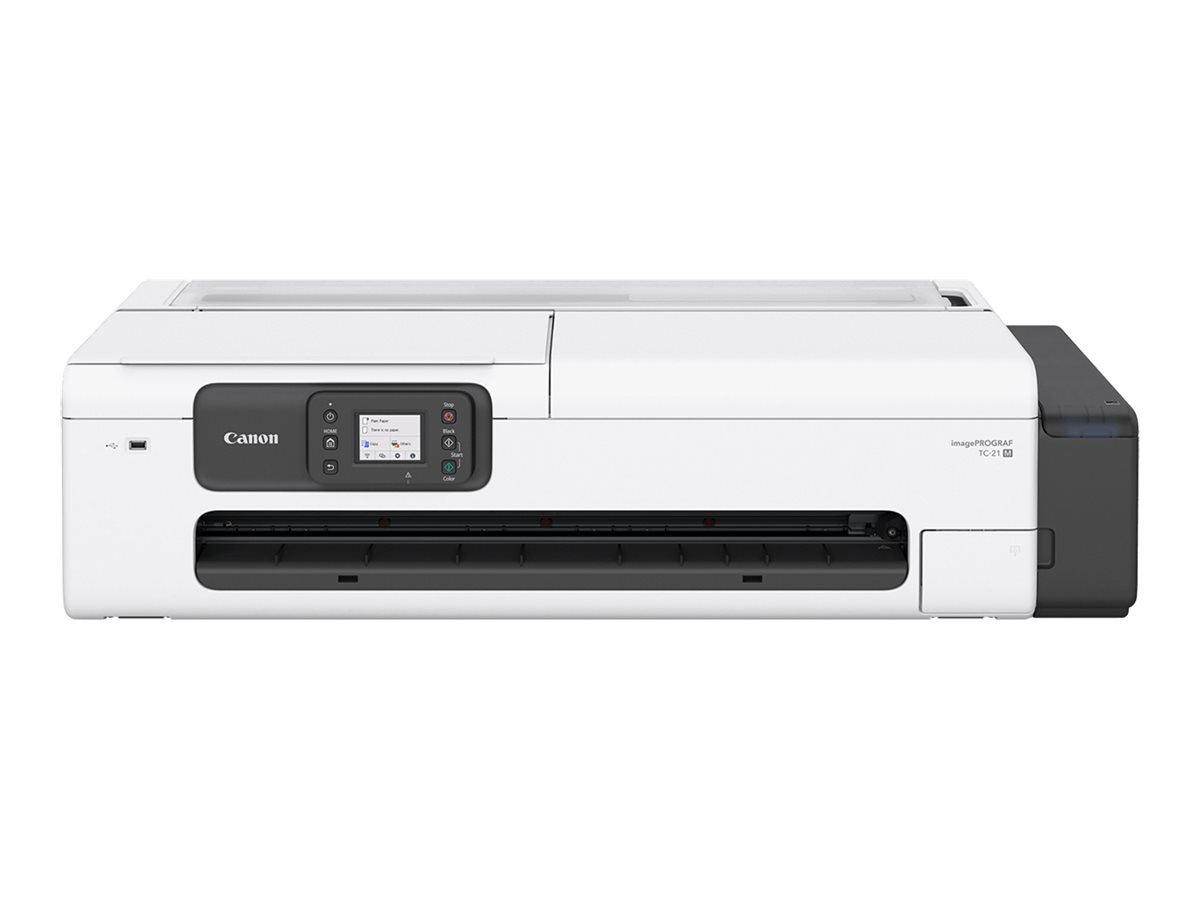

| Product Description | Canon imagePROGRAF TC-21M - large-format printer - color - ink-jet |
| Printer Type | 24" large-format printer - ink-jet - color |
| Weight | 72.97 lbs |
| Inkjet Technology | Canon FINE (Full-lithography inkjet Nozzle Engineering) |
| Ink Palette Supported (Colors) | 4-ink - cyan, magenta, yellow, black |
| Max Media Size | Roll A1 (24 in) |
| Min Media Size (Custom) | 5 in |
| Max Media Size (Custom) | 24 in |
| Print Speed | Up to 2 ppm - B/W - Roll A1 (24 in) ¦ Up to 1 ppm - color - Roll A1 (24 in) |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Cutter | Yes |
| Interface | USB 2.0, LAN, Wi-Fi(ac), USB host |
| AirPrint Enabled | Yes |
| RAM Installed (Max) | 1 GB |
| Language Simulation | SG Raster (Swift Graphic Raster) |
| Media Type | Plain paper |
| Networking | Print server |
| Scanner Type | Flatbed scanner - integrated |
| Scan Depth / Resolution | 16-bit (64K colors) / 1200 x 2400 dpi |
| Power | AC 100-240 V |
| System Requirements | Microsoft Windows 7 / 8.1 / 10 (32 bit), Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), Microsoft Windows Server 2008 R2/ 2012 / 2012 R2 / 2016 / 2019 / 2022, Apple macOS 10.14.6 or later, Microsoft Windows 11, Google Chrome OS, Apple iOS, Android |
| Environmental Standards | EPEAT Gold |
| Manufacturer Warranty | 1-year warranty |
| Dimensions (WxDxH) | 44.1 in x 29 in x 16 in |
| General | |
| Printer Type | 24" large-format printer - ink-jet - color |
| Expansion / Connectivity | |
| Connections | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 ¦ 1 x USB host - 4 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Consumables Included | 1 x ink bottle (pigmented cyan) - 70 ml - Canon PFI-050 C ¦ 1 x ink bottle (pigmented magenta) - 70 ml - Canon PFI-050 M ¦ 1 x ink bottle (pigmented yellow) - 70 ml - Canon PFI-050 Y ¦ 1 x ink bottle (pigmented black) - 70 ml - Canon PFI-050 BK ¦ 1 x printhead - Canon PF-08 ¦ 1 x maintenance cartridge |
| Features | Cutter |
| Compliant Standards | cTUVus, FCC Part 15 B, FCC Part 15 C |
| Printer | |
| Inkjet Technology | Canon FINE (Full-lithography inkjet Nozzle Engineering) |
| Ink Palette Supported (Colors) | 4-ink - cyan, magenta, yellow, black |
| Nozzle Configuration | 1280 nozzles (black), 3 x 1024 nozzles (cyan, magenta, yellow) |
| Ink Cartridge Configuration | 4 cartridges (1 each: cyan, magenta, yellow, black) |
| Print Speed | Up to 2 ppm - B/W - Roll A1 (24 in) ¦ Up to 1 ppm - color - Roll A1 (24 in) |
| Built-in Devices | LCD touch screen |
| Connectivity Technology | Wireless |
| Interface | USB 2.0, LAN, Wi-Fi(ac), USB host |
| AirPrint Enabled | Yes |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Direct Printing Specifications | Canon Direct Print |
| Language Simulation | SG Raster (Swift Graphic Raster) |
| Cutter | Yes |
| RAM | |
| RAM Installed (Max) | 1 GB |
| Media Handling | |
| Media Type | Plain paper |
| Max Media Size | Roll A1 (24 in) |
| Min Media Size (Custom) | 5 in |
| Max Media Size (Custom) | 24 in |
| Media Sizes | Roll (24 in), Roll A3 (11.7 in x 13 ft), Roll A2 (16.5 in), Roll A2 plus (17.01 in), Roll A1 (24 in), Roll B2, Roll B3, Roll (17.99 in), Roll (17 in), Foolscap, A3 (11.7 in x 16.5 in), ANSI A (Letter) (8.5 in x 10.98in)/Legal (8.5 in x 14.02 in)/A4 (8.27in x 11.69 in), Ledger B Size (11 in x 17 in), ARCH A (9 in x 12 in), B4 (9.83 in x 13.9 in), Oficio (8.46 in x 13.2 in) |
| Max Printing Length | 13 ft |
| Media Thickness Range | 0.08 mm - 0.28 mm |
| Media Feeders | 1 x automatic |
| Networking | |
| Networking | Print server |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 28 Watt |
| Power Consumption Stand by | 1.7 Watt |
| Software / System Requirements | |
| Software Included | Direct Print Plus |
| OS Required | Microsoft Windows 7 / 8.1 / 10 (32 bit), Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), Microsoft Windows Server 2008 R2/ 2012 / 2012 R2 / 2016 / 2019 / 2022, Apple macOS 10.14.6 or later, Microsoft Windows 11, Google Chrome OS, Apple iOS, Android |
| Environmental Parameters | |
| Min Operating Temperature | 59 °F |
| Max Operating Temperature | 86 °F |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Sound Emission (Idle) | 35 dBA |
| Sound Emission (Operating) | 41.5 dBA |
| Scanner | |
| Type | Flatbed scanner - integrated |
| Grayscale Depth | 16-bit (64K colors) |
| Color Depth | 16-bit (64K colors) |
| Optical / Interpolated Resolution | 1200 x 2400 dpi |
| Dimensions & Weight | |
| Width | 44.1 in |
| Depth | 29 in |
| Height | 16 in |
| Weight | 72.97 lbs |
| Environmental Standards | |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR | Yes |
