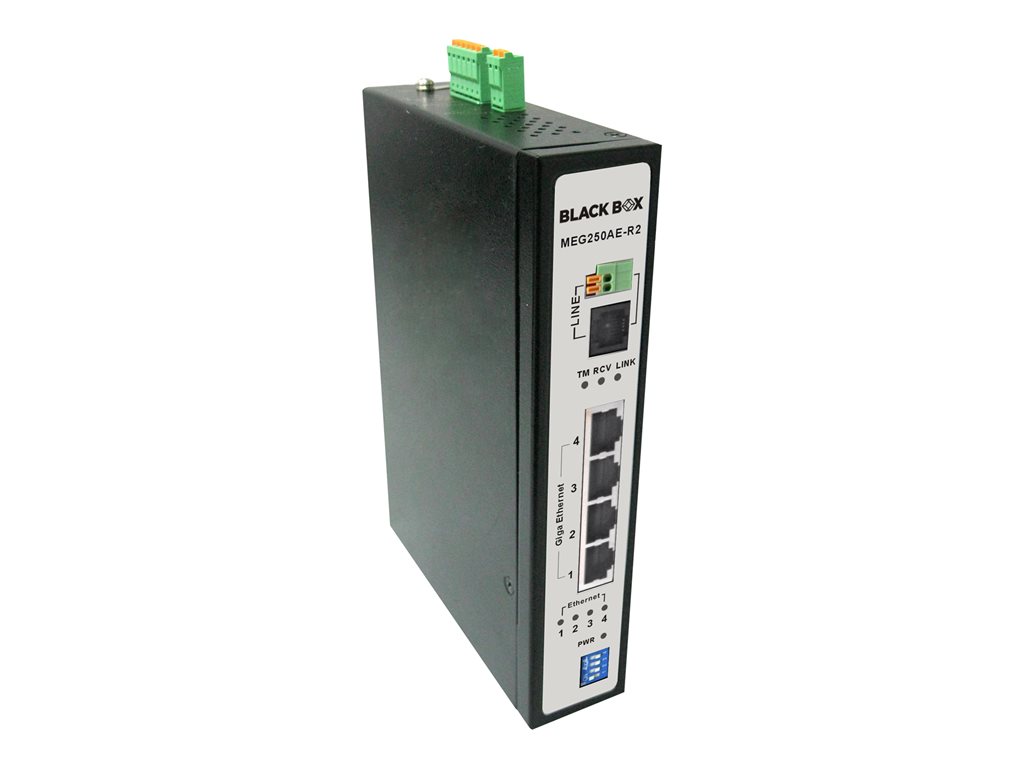

Bridge/router - DSL modem 4-port switch - DIN rail mountable
| Main Specifications | |
|---|---|
| Product Description | Black Box VDSL2 Industrial Bridge - bridge/router - DSL modem - DIN rail mountable |
| Device Type | Bridge/router - DSL modem - 4-port switch (integrated) |
| Enclosure Type | DIN rail mountable |
| Digital Signaling Protocol | VDSL2 |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Jumbo Frame Support | 2KB |
| Features | Built-in DIP switch, surge protection, over-loading protection, reverse polarity protection |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Bridge/router - 4-port switch (integrated) |
| Enclosure Type | DIN rail mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Jumbo Frame Support | 2KB |
| Features | Built-in DIP switch, surge protection, over-loading protection, reverse polarity protection |
| Status Indicators | Power, link/activity, link/speed |
| Expansion / Connectivity | |
| Interfaces | LAN: 4 x 10Base-T/100Base-TX - RJ-45 ¦ WAN: 1 x VDSL2 - RJ-11 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 158 °F |
| Communications | |
| Type | DSL modem |
| Digital Signaling Protocol | VDSL2 |
| Max Transfer Rate | 100 Mbps |
