Power distribution unit (rack-mountable) - 30A - AC 200/208 V - 5 kW - 5000 VA - Ethernet 10/100/1000, USB, serial - input: NEMA L6-30P (21 x IEC 60320 C13/C15, 3 x IEC 60320 C19/C21) - 0U - 10 ft cord - United States - black - TAA Compliant - for P/N: AP6002A, AP6003A, AP6007A, AP8000BLU, AP8000RED, ECO1PH1YAC04
| Main Specifications | |
|---|---|

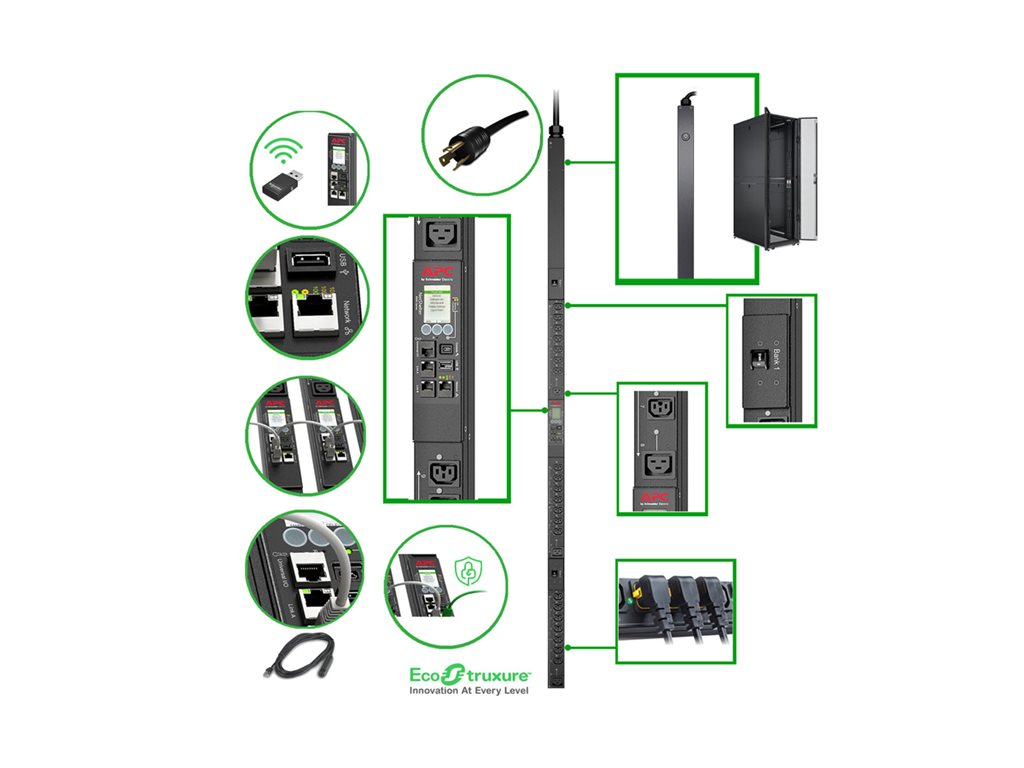

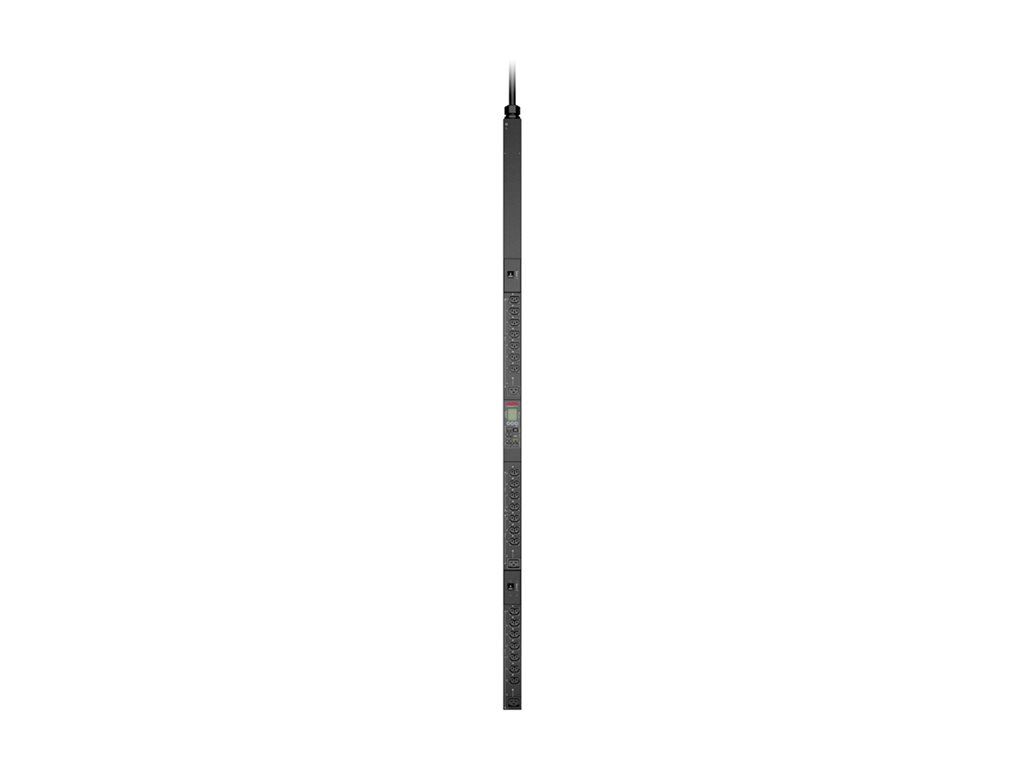

| Product Description | APC NetShelter 9000 Series Switched Rack PDU - power distribution unit - 30A - 5 kW - 5000 VA - TAA Compliant |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 0U |
| Weight | 18.74 lbs |
| Localization | United States |
| Input Voltage | AC 200/208 V |
| Output Voltage | AC 200/208 V |
| Power Capacity | 5 kW / 5000 VA |

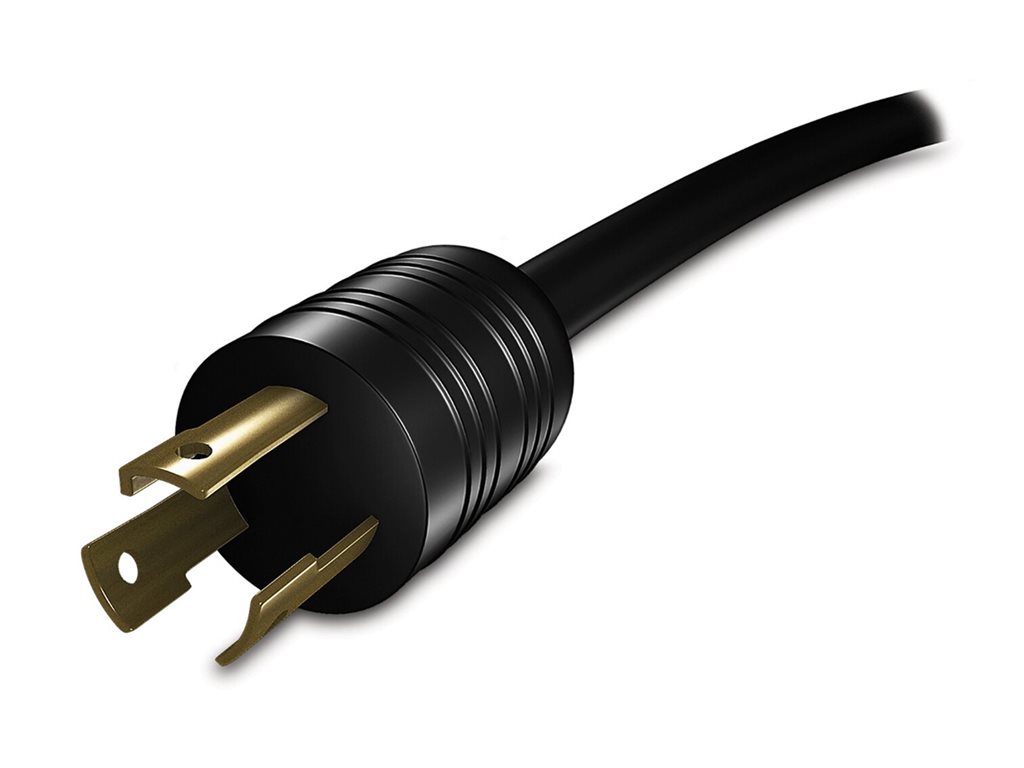

| Input Connectors | 1 x power NEMA L6-30P |
| Output connectors | 21 x power IEC 60320 C13/C15 ¦ 3 x power IEC 60320 C19/C21 |
| Networking | Ethernet 10/100/1000, USB, serial |
| Remote Management Protocol | HTTP, HTTPS, SSH, SCP, SNMP, SNMP 3, IPv4, IPv6, Telnet, RADIUS, CLI |
| Included Accessories | Rack mounting brackets |
| Color | Black |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 2.2 in x 1.8 in x 72 in |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: AP6002A, AP6003A, AP6007A, AP8000BLU, AP8000RED, AP8069, AP8702R-NA, AP8702S-NA, AP8704R-NA, AP8704S-NA, AP8706R-NA, AP9335T, AP9335TH, AR7711, ECO1PH1YAC04, KVM0216A-WEXWAR1Y-AC-04, WEXWAR1Y-AC-03, WEXWAR1Y-AC-04 |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Black |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x sensor ¦ 1 x USB - 4 pin USB Type A ¦ 1 x console - 5 pin Micro-USB Type B ¦ 2 x PDU link |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 3 years |
| Miscellaneous | |
| Included Accessories | Rack mounting brackets |
| Cables Included | AC input cable 10 ft |
| Rack Mounting Kit | Included |
| Features | Vertical orientation, reset button, LCD display, daisy chain functionality |
| Compliant Standards | cULus, FCC Part 15 A, ICES-003, PSE Mark, EU RoHS, REACH |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB, serial |
| Remote Management Protocol | HTTP, HTTPS, SSH, SCP, SNMP, SNMP 3, IPv4, IPv6, Telnet, RADIUS, CLI |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% |
| Power Device | |
| Input Voltage | AC 200/208 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Power Output Connectors Details | 21 x power IEC 60320 C13/C15 ¦ 3 x power IEC 60320 C19/C21 |
| Output Voltage | AC 200/208 V |
| Max Electric Current | 24 A |
| Power Capacity | 5 kW / 5000 VA |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 1.8 in |
| Height | 72 in |
| Weight | 18.74 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 4.9 in |
| Shipping Depth | 6.5 in |
| Shipping Height | 80.3 in |
| Shipping Weight | 22.05 lbs |
| Compatibility Information | |
| Designed For | P/N: AP6002A, AP6003A, AP6007A, AP8000BLU, AP8000RED, AP8069, AP8702R-NA, AP8702S-NA, AP8704R-NA, AP8704S-NA, AP8706R-NA, AP9335T, AP9335TH, AR7711, ECO1PH1YAC04, KVM0216A-WEXWAR1Y-AC-04, WEXWAR1Y-AC-03, WEXWAR1Y-AC-04 |
