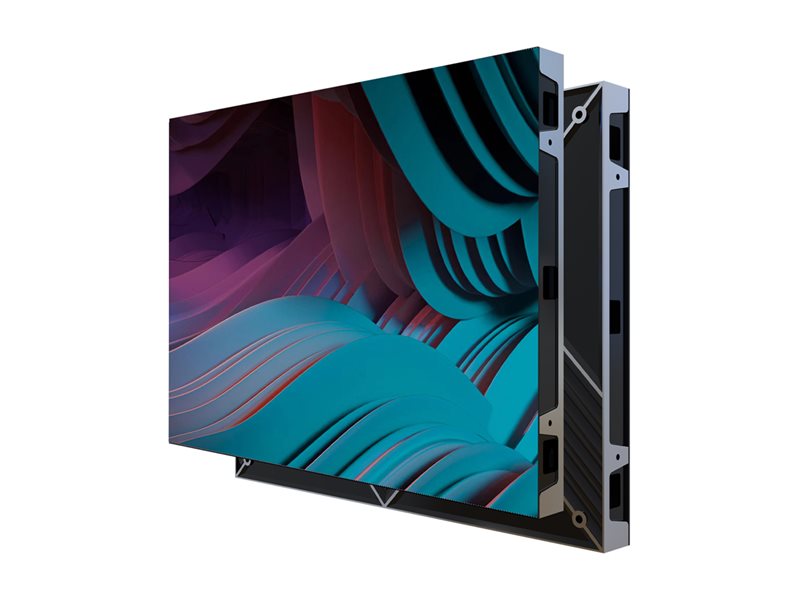

XIM Series LED display unit - digital signage 160 x 80 (LED unit) / 320 x 240 (cabinet) per unit - SMD
| Main Specifications | |
|---|---|
| Product Description | Hisense XIM020 XIM Series LED display unit - for digital signage |
| Product Type | LED display unit |
| Commercial Use | Yes - digital signage |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight |
| TV Tuner | No tuner |
| Video Wall Display Unit | SMD - 160 x 80 (LED unit) / 320 x 240 (cabinet) - profile aluminium |
| Voltage | AC 100-240 V |
| Dimensions (WxDxH) - display unit | 12.6 in 6.3 in |
| General | |
| Product Type | LED display unit |
| Commercial Use | Yes - digital signage |
| Series | XIM Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Design | Slim Design |
| Dimensions | Display unit |
| Width | 12.6 in |
| Height | 6.3 in |
| Miscellaneous | |
| Compliant Standards | IP30 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V |
| Video Wall Power Consumption (Max) | 600 W/m² |
| Video Wall Power Consumption (Typical) | 180 W/m² |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% RH |
| Display | |
| Pixel Pitch | 2 mm |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight |
| Color Temperature | 6500K |
| Image Contrast Ratio | 4000:1 |
| Brightness | 600 cd/m² |
| Viewing Angle | 160° |
| Viewing Angle (Vertical) | 160° |
| Additional Features | 13-bit color processing, + 0.012 Cx / Cy color uniformity |
| Dimensions & Weight Details | |
| Dimensions & Weight Details | Display unit - 12.6 in 6.3 in ¦ Cabinet - 18.9 in x 25.2 in x 1.9 in x 14.3 lbs ¦ Cabinet - 25.2 in x 25.2 in x 1.9 in x 18.1 lbs ¦ Cabinet - 18.9 in x 12.6 in x 1.9 in x 8.4 lbs |
| Video Wall Display Unit | |
| Pixel Pitch | 2 mm |
| LED Type | SMD |
| Resolution | 160 x 80 (LED unit) / 320 x 240 (cabinet) |
| LED Lifetime | 100000 hours |
| Maintenance | Front |
| Modules Configuration (Per Cabinet) | 2 x 3 + 2 x 4 + 1 x 3 |
| Cabinet Frame Material | Profile aluminium |
