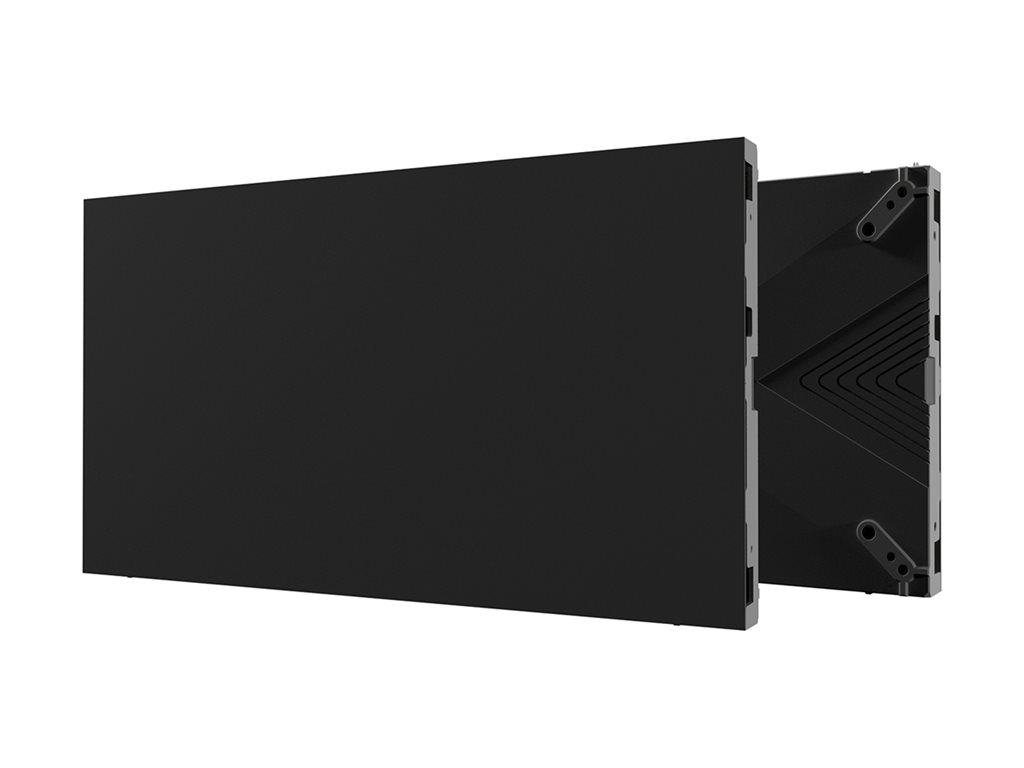

XIH Series LED display unit - digital signage 96 x 108 (LED unit) / 384 x 216 (cabinet) per unit - Flip-Chip CoB (Chip on Board)
| Main Specifications | |
|---|---|
| Product Description | Hisense XIH015 XIH Series LED display unit - for digital signage |
| Product Type | LED display unit |
| Commercial Use | Yes - digital signage |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight |
| TV Tuner | No tuner |
| Video Wall Display Unit | Flip-Chip CoB (Chip on Board) - 96 x 108 (LED unit) / 384 x 216 (cabinet) - profile aluminium |
| Voltage | AC 100-240 V |
| Dimensions (WxDxH) - display unit | 5.9 in 6.6 in |
| General | |
| Product Type | LED display unit |
| Commercial Use | Yes - digital signage |
| Series | XIH Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Dimensions | Display unit |
| Width | 5.9 in |
| Height | 6.6 in |
| Miscellaneous | |
| Compliant Standards | IP20, FCC, CB, cTUVus |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V |
| Video Wall Power Consumption (Max) | 373 W/m² |
| Video Wall Power Consumption (Typical) | 150 W/m² |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% RH |
| Display | |
| Pixel Pitch | 1.56 mm |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight |
| Color Temperature | 8500 - 9000K |
| Image Contrast Ratio | 10000:1 |
| Brightness | 600 cd/m² |
| Viewing Angle | 155° |
| Viewing Angle (Vertical) | 155° |
| Additional Features | 13-bit color processing, + 0.003 Cx / Cy color uniformity |
| Dimensions & Weight Details | |
| Dimensions & Weight Details | Display unit - 5.9 in 6.6 in ¦ Cabinet - 23.6 in x 1.5 in x 13.3 in x 12.1 lbs |
| Video Wall Display Unit | |
| Pixel Pitch | 1.56 mm |
| LED Type | Flip-Chip CoB (Chip on Board) |
| Resolution | 96 x 108 (LED unit) / 384 x 216 (cabinet) |
| LED Lifetime | 100000 hours |
| Maintenance | Front |
| Modules Configuration (Per Cabinet) | 2x4 |
| Cabinet Frame Material | Profile aluminium |
