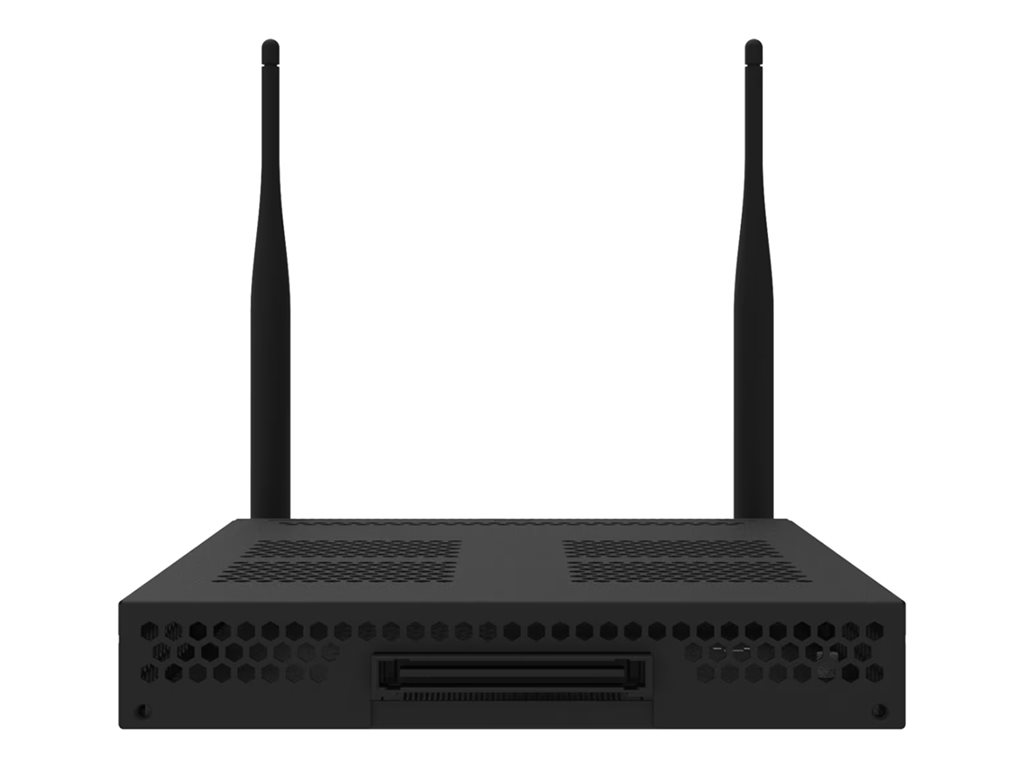

Mini OPS PC Core i7 12650H / up to 4.7 GHz - RAM 16 GB - SSD 512 GB - UHD Graphics - IEEE 802.11ax (Wi-Fi 6), Gigabit Ethernet, Bluetooth 5.2 - Win 11 Pro - monitor: none - black
| Main Specifications | |
|---|---|
| Product Description | Hisense S02EMS7CA51B - mini OPS PC Core i7 12650H - 16 GB - SSD 512 GB |
| Type | Personal computer - mini OPS PC |
| Processor | Intel Core i7 (12th Gen) 12650H (up to 4.7 GHz, (10-core) |
| Cache Memory | 24 MB |
| Cache Per Processor | 24 MB |
| RAM | 16 GB |
| Hard Drive | SSD 512 GB - SATA 6Gb/s - mSATA |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics |
| Networking | 802.11a, Wi-Fi 5, Wi-Fi 6, 802.11b/g/n, 1GbE, Bluetooth 5.2 |
| OS Provided | Windows 11 Pro |
| Color | Black |
| Dimensions (WxDxH) | 7.7 in x 7.1 in x 1.2 in |
| Weight | 3.09 lbs |
| General | |
| Type | Personal computer |
| Product Form Factor | Mini OPS PC |
| Built-in Devices | 2 x Wi-Fi antennas, status LED |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 4 x USB 3.0 ¦ 2 x USB 2.0 ¦ 1 x HDMI output ¦ 1 x DisplayPort output ¦ 1 x audio line-in/microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Compliant Standards | CB, cTUVus, UKCA, FCC, IC |
| RAM | |
| Installed Size | 16 GB |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.2 |
| Power | |
| Device Type | Power supply |
| Voltage Required | DC 12 - 19 V |
| Power Consumption Operational | 90 watt |
| Power Consumption Stand by | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% |
| Cache Memory | |
| Installed Size | 24 MB |
| Cache Per Processor | 24 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI, DisplayPort |
| Operating System / Software | |
| OS Provided | Windows 11 Pro |
| Hard Drive | |
| Type | SSD - mSATA |
| Capacity | 1 x 512 GB |
| Interface Type | SATA 6Gb/s |
| Dimensions & Weight | |
| Width | 7.7 in |
| Depth | 7.1 in |
| Height | 1.2 in |
| Weight | 3.09 lbs |
| Processor / Chipset | |
| CPU | Intel Core i7 (12th Gen) 12650H |
| Max Turbo Speed | 4.7 GHz (P-core) / 3.5 GHz (E-core) |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
