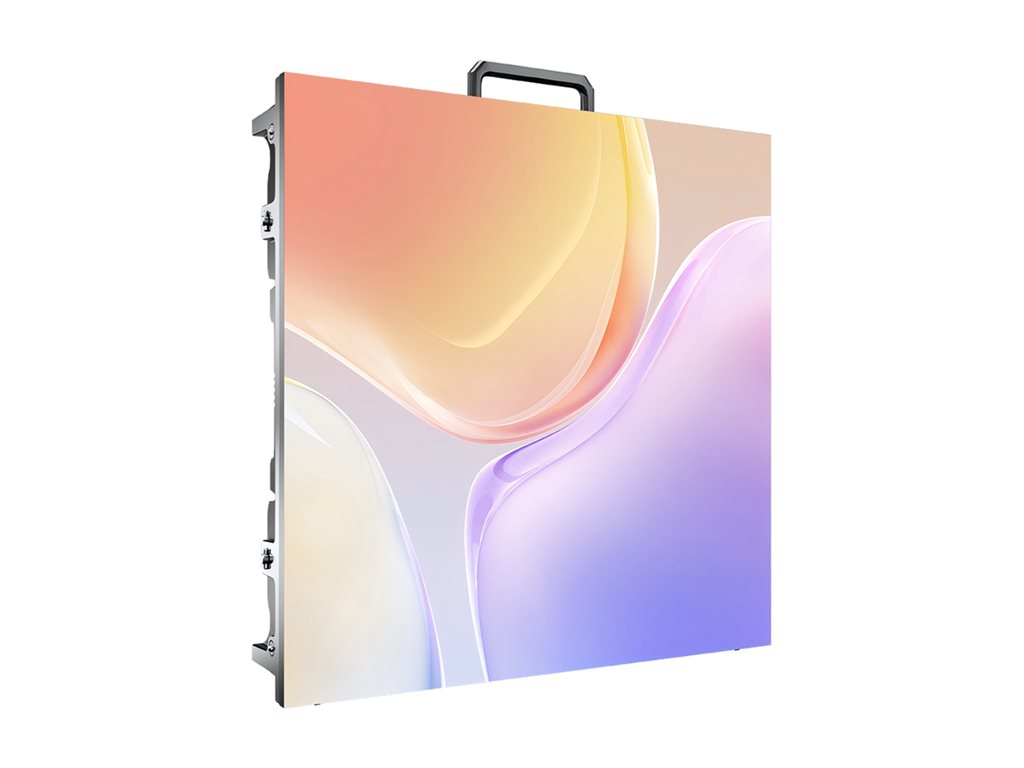

RNM Series LED display unit - digital signage - 256 x 512 128 x 128 (LED unit) / 256 x 256 (cabinet) per unit - SMD
| Main Specifications | |
|---|---|
| Product Description | Hisense RNM019FE RNM Series LED display unit - for digital signage |
| Product Type | LED display unit |
| Commercial Use | Yes - digital signage |
| Video Wall Resolution | 256 x 512 |
| Frame Rate & Enhancement Technology | 7680 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight |
| TV Tuner | No tuner |
| Video Wall Display Unit | SMD - 128 x 128 (LED unit) / 256 x 256 (cabinet) - profile aluminium |
| Voltage | AC 100-240 V |
| Dimensions (WxDxH) - display unit | 9.8 in 9.8 in |
| General | |
| Product Type | LED display unit |
| Commercial Use | Yes - digital signage |
| Series | RNM Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Design | Anti-collision Design |
| Dimensions | Display unit |
| Width | 9.8 in |
| Height | 9.8 in |
| Miscellaneous | |
| Compliant Standards | IP30 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V |
| Video Wall Power Consumption (Max) | 600 W/m² |
| Video Wall Power Consumption (Typical) | 200 W/m² |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 80 % RH |
| Display | |
| Pixel Pitch | 1.953 mm |
| Frame Rate & Enhancement Technology | 7680 Hz Refresh Rate |
| LCD Backlight Technology | LED backlight |
| Color Temperature | 6500K |
| Image Contrast Ratio | 4000:1 |
| Brightness | 1000 cd/m² |
| Viewing Angle | 150° |
| Viewing Angle (Vertical) | 140° |
| Additional Features | 14-bit Processing |
| Dimensions & Weight Details | |
| Dimensions & Weight Details | Display unit - 9.8 in 9.8 in ¦ Cabinet - 19.7 in x 3 in x 19.7 in x 14.3 lbs ¦ Cabinet - 39.4 in x 3 in x 19.7 in x 26.5 lbs |
| Video Wall Display Unit | |
| Pixel Pitch | 1.953 mm |
| LED Type | SMD |
| Resolution | 128 x 128 (LED unit) / 256 x 256 (cabinet) |
| LED Lifetime | 100000 hours |
| Maintenance | Rear and front |
| Modules Configuration (Per Cabinet) | 2x2 + 2x4 |
| Cabinet Frame Material | Profile aluminium |
| Video Wall | |
| Resolution | 256 x 512 |
