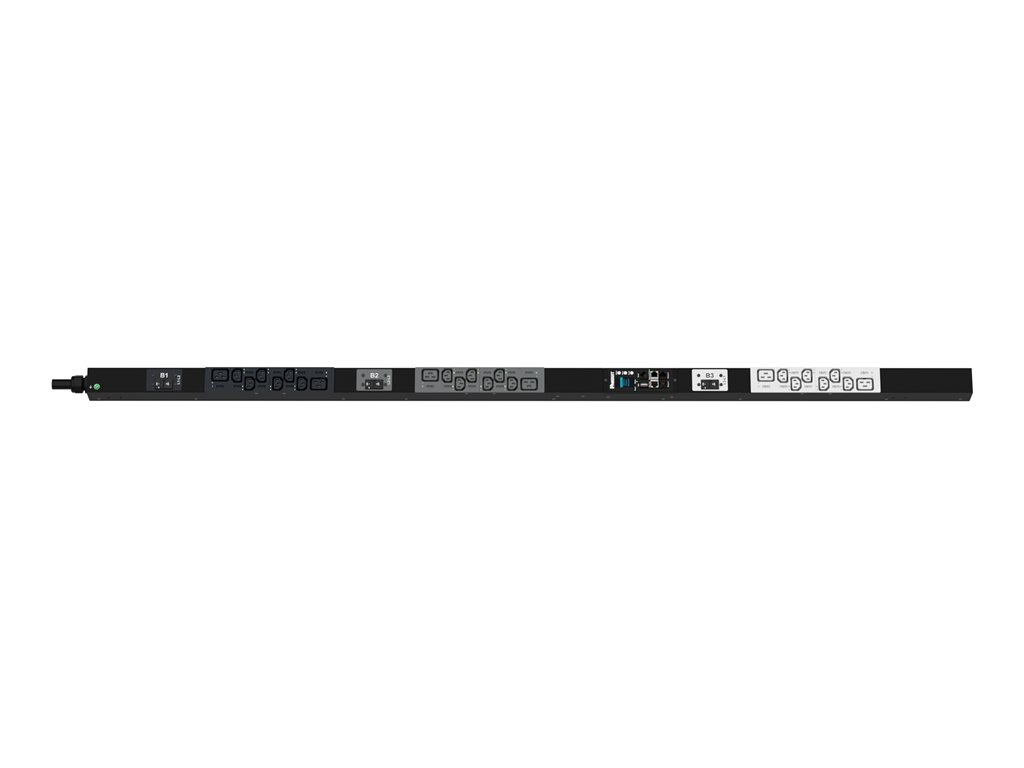

Power distribution unit (rack-mountable) - switched and monitored, 0U Full - AC 208 V - 8600 VA - 3-phase - Ethernet 10/100/1000 - input: NEMA L21-30P - output connectors: 24 (power IEC 60320 C13, IEC 60320 C19) - 10 ft cord - United States, Canada - black
| Main Specifications | |
|---|---|
| Product Description | Panduit G6 Intelligent - power distribution unit - switched and monitored, 0U Full - 8600 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Localization | United States, Canada |
| Input Wiring | 3-phase |
| Input Voltage | AC 208 V |
| Output Voltage | AC 208 V |
| Power Capacity | 8600 VA |
| Input Connectors | 1 x power NEMA L21-30P |
| Output connectors | 18 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Networking | Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP |
| Color | Black |
| Dimensions (WxDxH) | 2 in x 2.1 in x 68.9 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Color | Black |
| Localization | United States, Canada |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Ethernet) - RJ-45 ¦ 1 x USB ¦ 2 x sensor - RJ-45 ¦ 2 x cascading - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Rack Mounting Kit | Included |
| Features | Vertical orientation, daisy chain functionality, 3 circuit breakers, overcurrent protection, overload protection, LED display |
| Compliant Standards | RETIE, UKCA, RoHS, REACH, China RoHS, NOM, FCC Part 15 A, UL 62368-1 |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 140 °F |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L21-30P |
| Power Output Connectors Details | 18 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Output Voltage | AC 208 V |
| Max Electric Current | 30 A |
| Power Capacity | 8600 VA |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 2.1 in |
| Height | 68.9 in |
