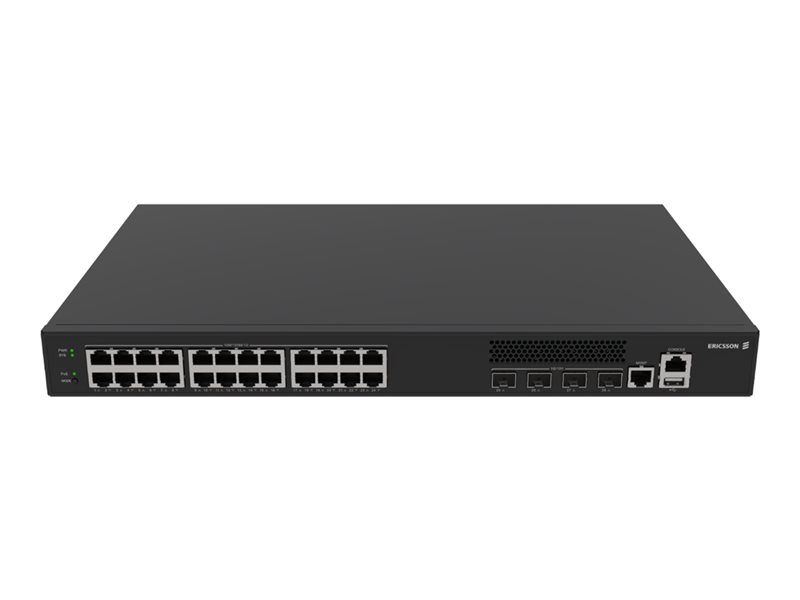

Switch - 24 x 10/100/1000 (PoE+) + 4 x SFP+ (uplink) - rack-mountable - PoE+ (370 W) - TAA Compliant - with 3 years NetCloud LAN Switch Essentials Plan
| Main Specifications | |
|---|---|
| Product Description | Cradlepoint SW2400P - switch - 24 ports - rack-mountable - TAA Compliant |
| Device Type | Switch - 24 ports - stackable |
| Enclosure Type | Rack-mountable |
| Bundled Services | 3 years NetCloud LAN Switch Essentials Plan |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Switching capacity: 128 Gbps ¦ Forwarding rate: 95 Mpps |
| Capacity | VLANs supported: 64 ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Features | 802.1x authentication, LLDP-MED, VLAN Tagging, dynamic power allocation, EEE, layer 2 switching, indoor use |
| Compliant Standards | IEEE 802.3at, IEEE 802.3az |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 11 in x 1.7 in |
| Weight | 10.47 lbs |
| Localization | North America (US and Canada) |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 24 ports - stackable |
| Bundled Services | 3 years NetCloud LAN Switch Essentials Plan |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Switching capacity: 128 Gbps ¦ Forwarding rate: 95 Mpps |
| Capacity | VLANs supported: 64 ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Features | 802.1x authentication, LLDP-MED, VLAN Tagging, dynamic power allocation, EEE, layer 2 switching, indoor use |
| Compliant Standards | IEEE 802.3at, IEEE 802.3az |
| RAM | 1 GB |
| Built-in Devices | 256 MB NAND flash |
| Expansion / Connectivity | |
| Interfaces | 24 x 10/100/1000 Base-T (PoE+) RJ-45 ¦ 4 x 10Gbit LAN SFP+ uplink ¦ 1 x console RJ-45 ¦ 1 x USB 2.0 Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| MTBF | 125,675 hours |
| Compliant Standards | IC, RCM, UKCA, UL, cUL, CB Scheme, WEEE, RoHS, REACH, CP65, FCC Class A certified, CISPR Class A |
| TAA Compliant | Yes |
| Localization | North America (US and Canada) |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 450 watt |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 11 in |
| Height | 1.7 in |
| Weight | 10.47 lbs |
