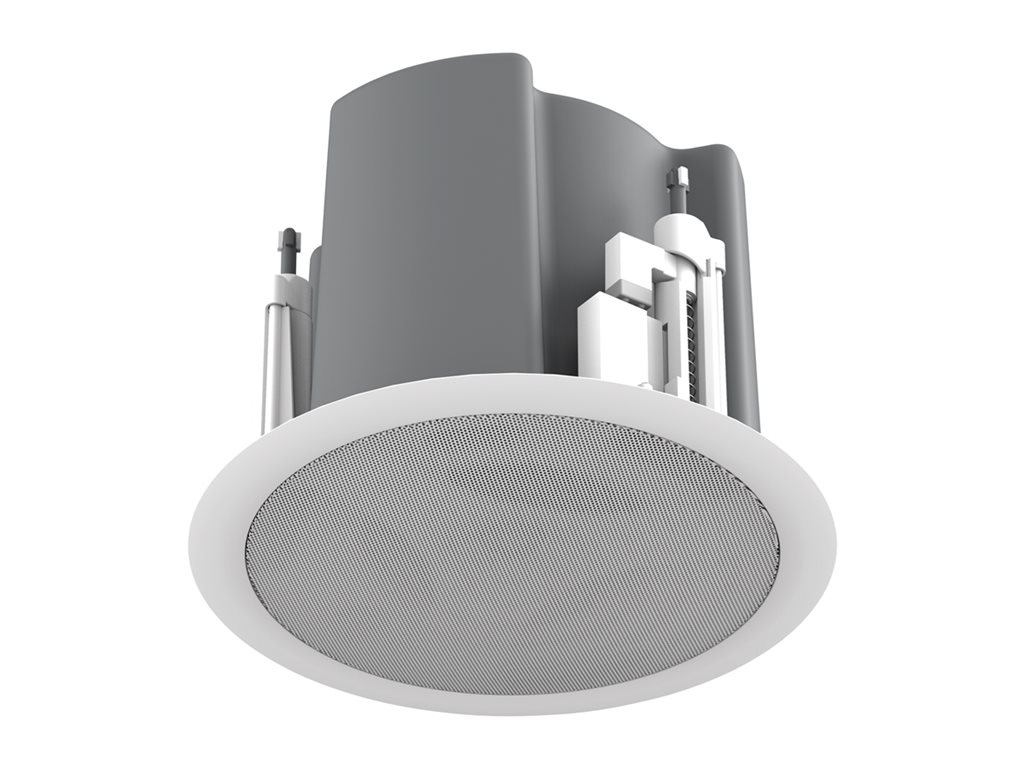

Speaker - for PA system - 32 Watt - coaxial - white, RAL 9016 (grille color - white, RAL 9016)
| Main Specifications | |
|---|---|
| Product Description | Atlas Sound Strategy III FAP43T-W - speaker - for PA system |
| Product Type | Speaker - for PA system |
| Speaker Type | Coaxial passive |
| Continuous Power | 32 Watt |
| Frequency Response | 90 - 20000 Hz |
| Nominal Impedance | 8 Ohm |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Speaker Details | Speaker - 32 Watt - 90 - 20000 Hz - passive |
| Color | White, RAL 9016 |
| Dimensions (WxDxH) | 7.3 in |
| Dimensions - Diameter | 9.6 in |
| Weight | 6.28 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | Speaker - for PA system |
| Enclosure Color | White, RAL 9016 |
| Design Features | Paintable, powder coated |
| Grille Color | White, RAL 9016 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | UL 2043, UL 1480, IP21 |
| Connections | |
| Connector Type | Speakers input (4 pin Phoenix) |
| Dimensions & Weight | |
| Diameter | 9.6 in |
| Height | 7.3 in |
| Weight | 6.28 lbs |
| Speaker System | |
| Speaker Type | Coaxial passive |
| Continuous Power | 32 Watt |
| Frequency Response | 90 - 20000 Hz |
| Nominal Impedance | 8 Ohm |
| Sensitivity | 90 dB |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Coverage | 130° |
| Recommended Placing | In-ceiling mounted |
| Detachable Grilles | Yes |
| Speaker System Details | |
| Speaker Details | Speaker - 32 Watt - 90 - 20000 Hz CFR - passive |
| Driver Details | Speaker driver: full-range driver - 4.5" |
