UPS (rack-mountable / external) - AC 100-120 V - 3000 Watt - 3000 VA - 9 Ah - USB, serial, Ethernet - output connectors: 9 - active PFC - 2U - black - with RMCARD205 network management card
| Main Specifications | |
|---|---|

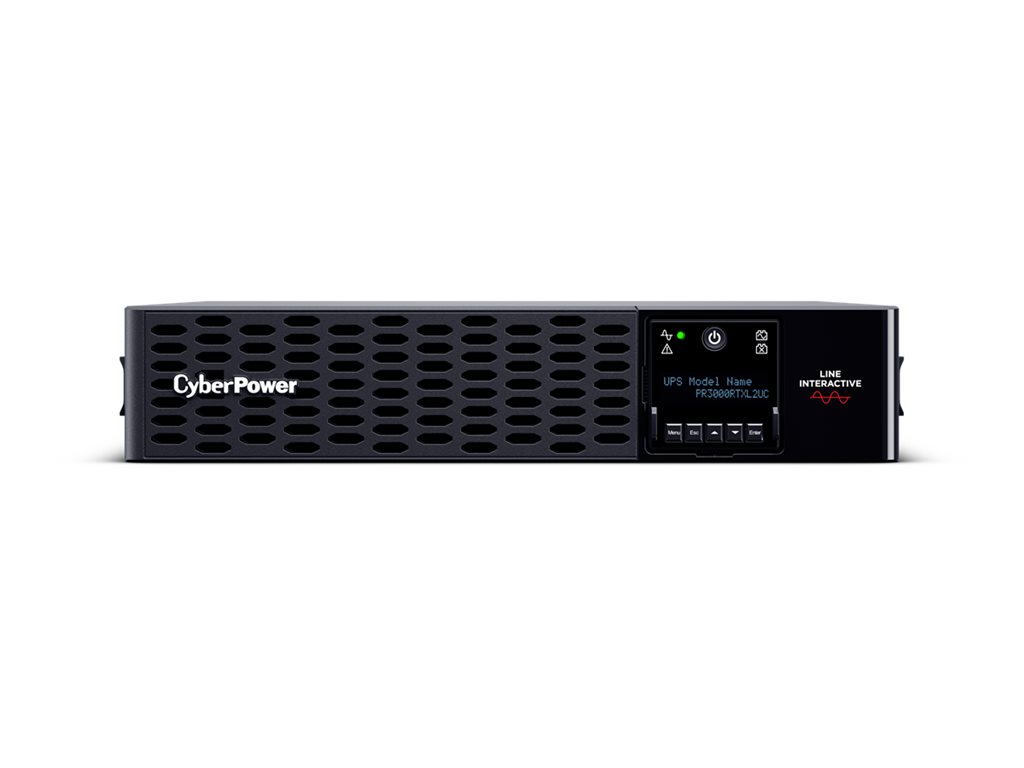

| Product Description | CyberPower Smart App Sinewave PR3000RTXL2UCN - UPS - 3000 watt - 3000 VA - with RMCARD205 network management card |
| Device Type | UPS - active Power Factor Correction (PFC) - rack-mountable / external |
| Rack Size | 2U |
| Weight | 75.4 lbs |
| Input Voltage | AC 100-120 V |
| Output Voltage | AC 100-120 V + 5% / - 5% |
| Power Capacity | 3000 watt / 3000 VA |
| Input Connectors | 1 x power NEMA L5-30P |
| Output connectors | 8 x power NEMA 5-20R (surge) ¦ 1 x power NEMA L5-30R (surge) |
| Battery | Lead acid - 9 Ah |
| Batteries Qty | 4 |
| Run Time (Up To) | 1.7 min at full load |
| Networking | USB, serial, Ethernet |
| Remote Management Protocol | SNMP, CLI, HTTP |
| Included Accessories | Faceplate, mounting kit |
| Color | Black |
| Dimensions (WxDxH) | 17.1 in x 19.7 in x 3.4 in |
| Environmental Standards | ENERGY STAR |
| Manufacturer Warranty | 3-year warranty |
| Bundled with | RMCARD205 network management card |
| General | |
| Device Type | UPS - active Power Factor Correction (PFC) - rack-mountable / external |
| Height (Rack Units) | 2U |
| Color | Black |
| Bundled with | RMCARD205 network management card |
| Expansion / Connectivity | |
| Interfaces | 1 x relay input ¦ 1 x management (Ethernet) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) |
| Expansion Slots | 1 (total) / 1 (free) x SNMP |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Faceplate, mounting kit |
| Cables Included | Power cable - external - 10 ft ¦ USB-A to USB-B cable - external ¦ Emergency power off cable - external |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 400000 US Dollars |
| Features | Metal housing, Automatic Voltage Regulation (AVR), Battery Equalization Technology, Fast Charge technology, rotatable LCD panel, GreenPower UPS Bypass Technology, 30A fuse, twist lock plug, Impedance Tolerant EMI/RFI filtering, audible alarm, Human Interface Device (HID) support, LED indicators |
| Compliant Standards | RoHS, UL 1778, VCCI, FCC Class A certified, CSA C22.2 No. 107.3 |
| Networking | |
| Remote Management Interface | USB, serial, Ethernet |
| Remote Management Protocol | SNMP, CLI, HTTP |
| Software / System Requirements | |
| Software Included | PowerPanel Business Edition |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 57.5 dBA |
| Battery | |
| Quantity | 4 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 1.7 min at full load ¦ 7 min at half load |
| Recharge Time | 3 hours |
| Transfer Time | 13 ms |
| Features | Sealed, hot-swappable |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 100-120 V |
| Input Voltage Range (Adjustable) | AC 70 - 155 V |
| Frequency Provided | 50/60 Hz ± 1% |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | 1 x power NEMA L5-30P |
| Power Output Connectors Details | 8 x power NEMA 5-20R (surge) ¦ 1 x power NEMA L5-30R (surge) |
| Output Voltage | AC 100-120 V + 5% / - 5% - 50/60 Hz |
| Power Capacity | 3000 watt / 3000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 2430 joules |
| Circuit Protection | Circuit breaker |
| Power Factor (PF) | 1.0 |
| Dimensions & Weight | |
| Width | 17.1 in |
| Depth | 19.7 in |
| Height | 3.4 in |
| Weight | 75.4 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 21.8 in |
| Shipping Depth | 24.3 in |
| Shipping Height | 10.5 in |
| Shipping Weight | 89.31 lbs |
| Sustainability Information | |
| ENERGY STAR | Yes |
