SSD - encrypted - 512 GB - internal - M.2 2280 - PCIe 3.0 x4 (NVMe) - 256-bit AES - TCG Opal Encryption 2.0 - for Intel Next Unit of Computing 12, 13
| Main Specifications | |
|---|---|

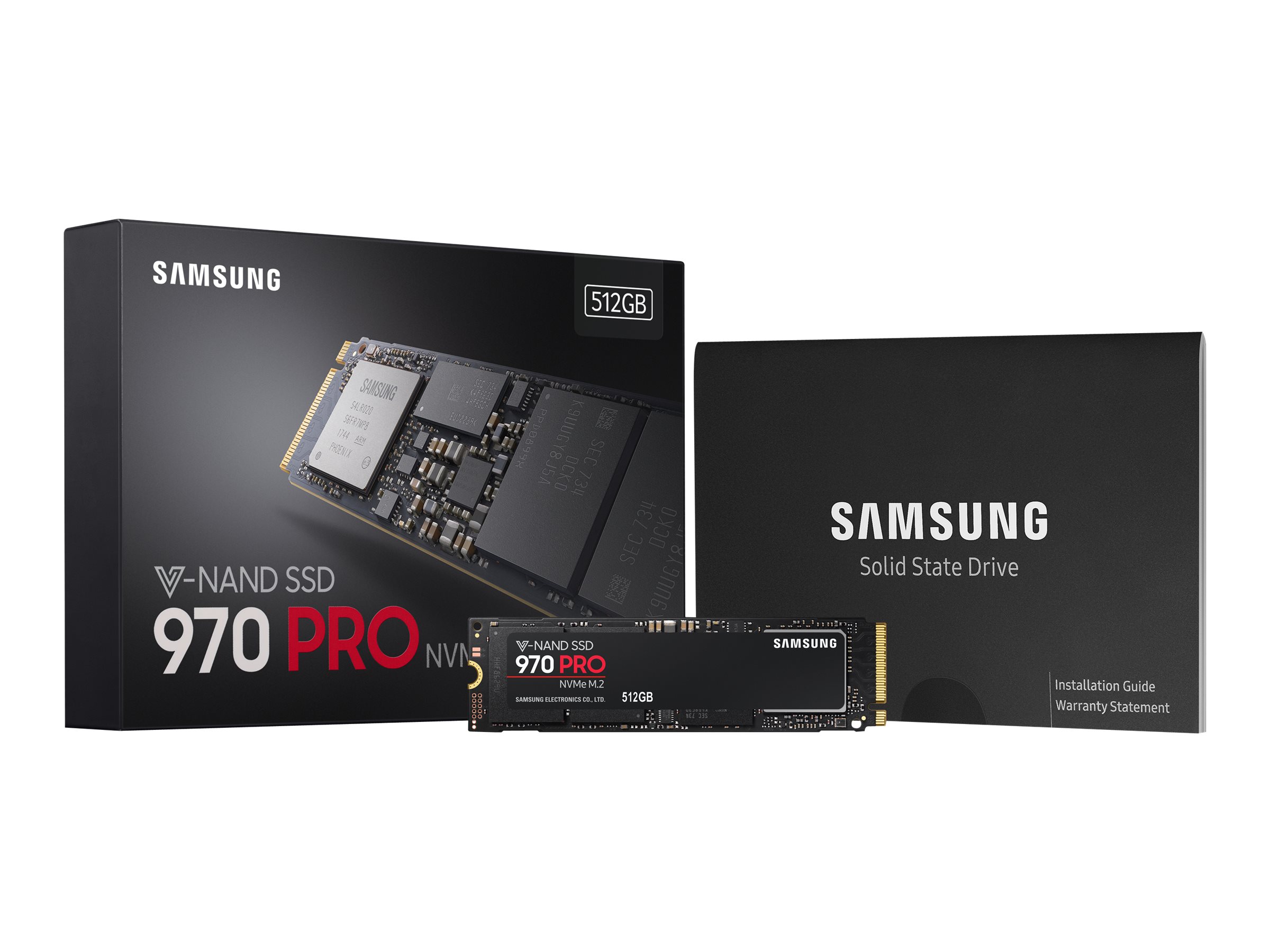

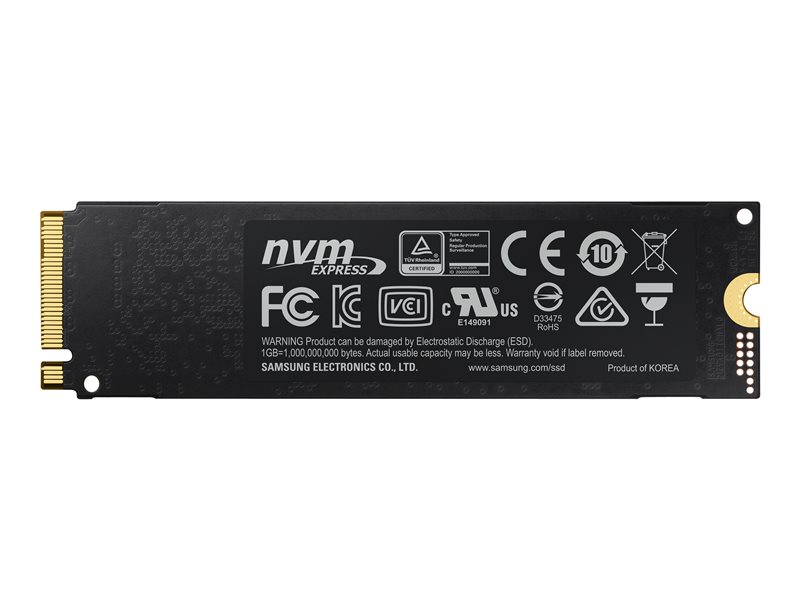

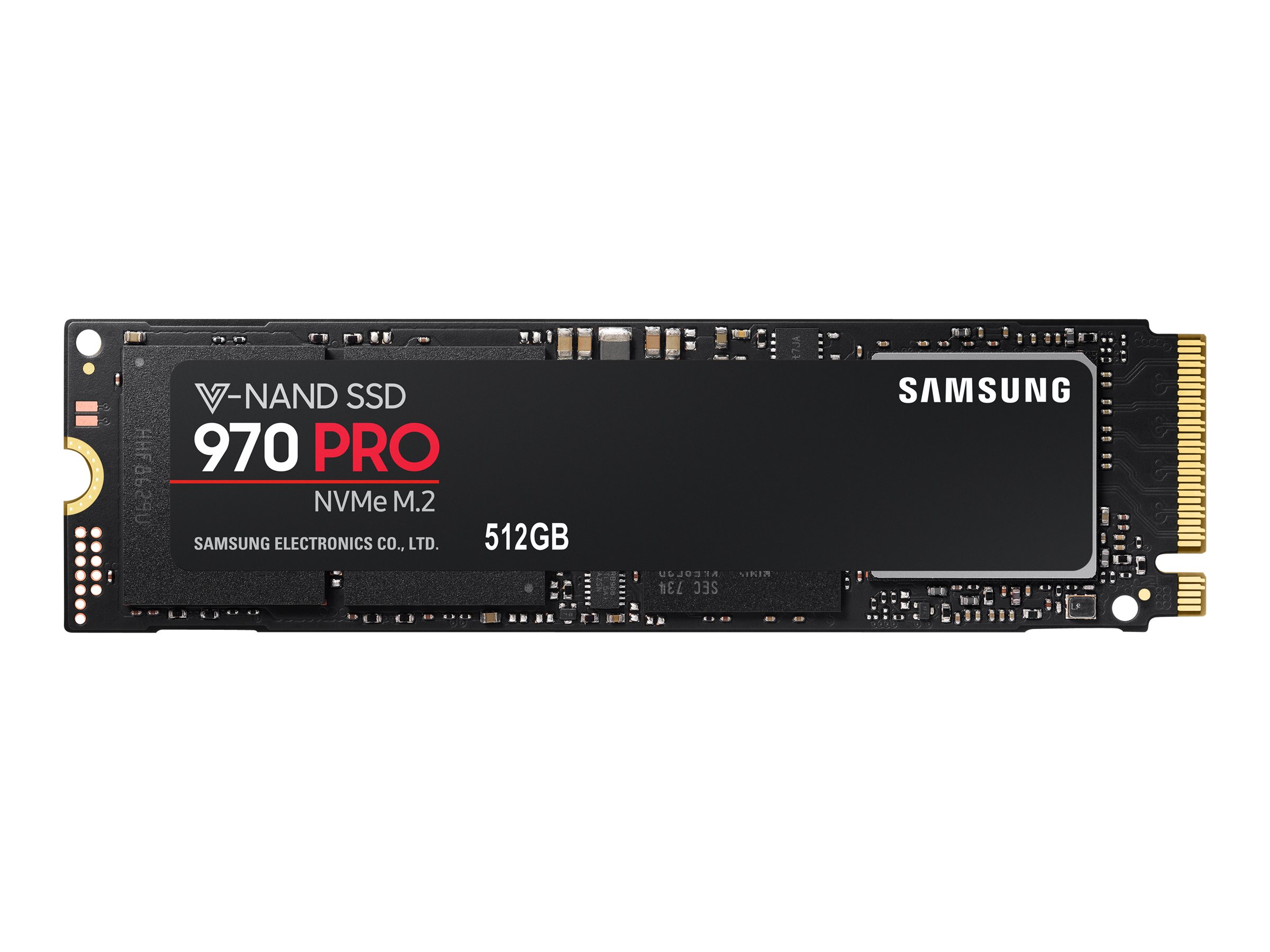

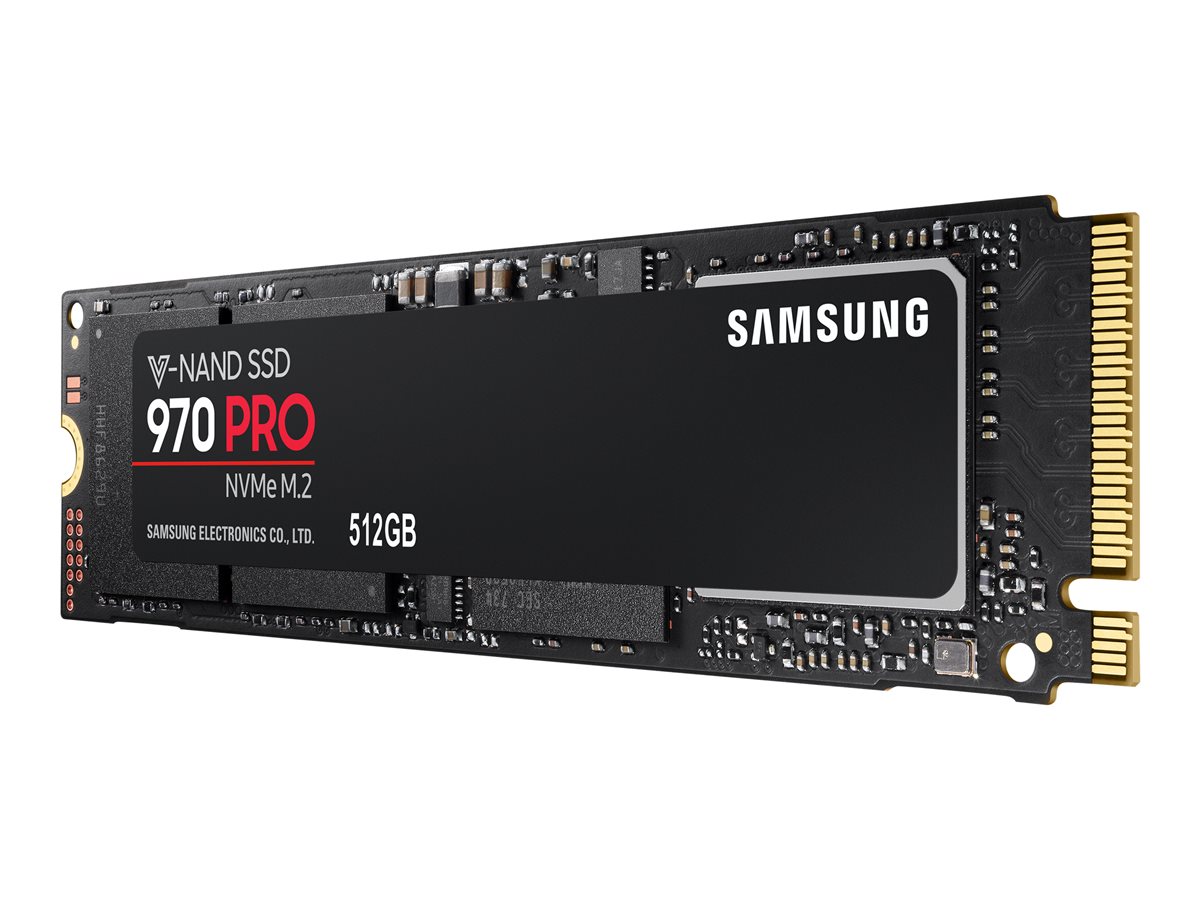

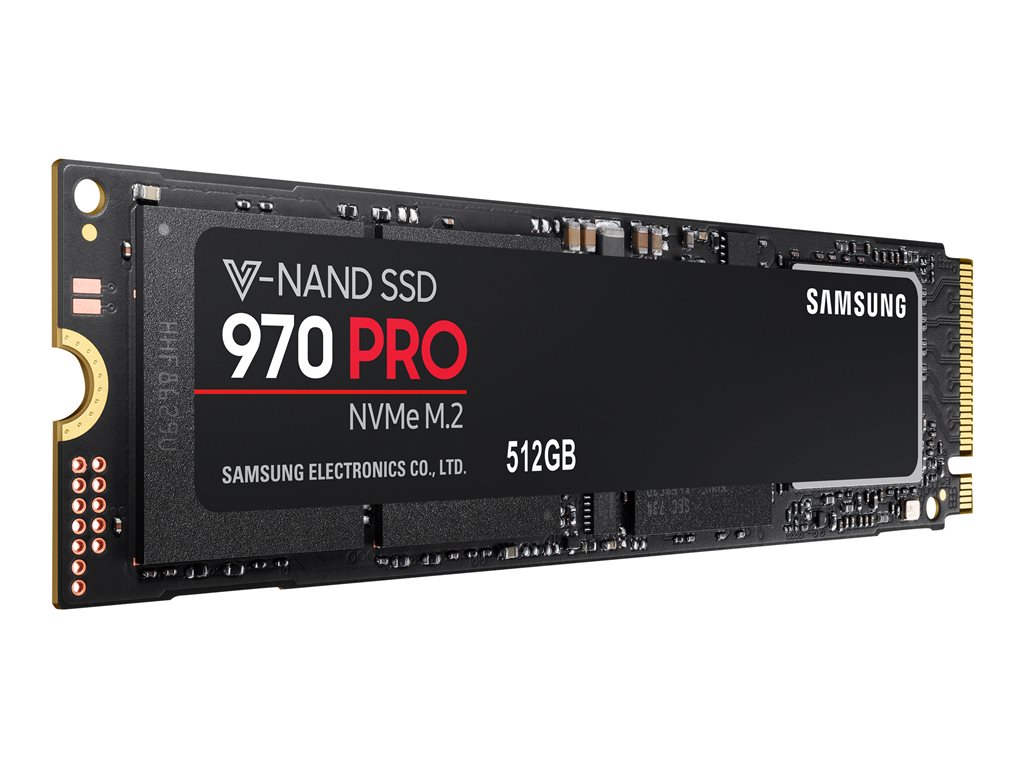

| Product Description | Samsung 970 PRO MZ-V7P512BW - SSD - 512 GB - PCIe 3.0 x4 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 512 GB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | 3D multi-level cell (MLC) |
| Form Factor | M.2 2280 |
| Interface | PCIe 3.0 x4 (NVMe) |
| Features | Microsoft eDrive compatible, Auto Garbage Collection Algorithm, V-NAND Technology, Temperature Monitoring, NVM Express (NVMe) 1.3, Samsung Phoenix Controller |
| Dimensions (WxDxH) | 0.9 in x 3.2 in x 0.1 in |
| Weight | 0.28 oz |
| Manufacturer Warranty | 5-year warranty |
| Designed For | Intel Next Unit of Computing 12 Pro Kit - NUC12WSHv7, 12 Pro Kit - NUC12WSKi3, 12 Pro Kit - NUC12WSKi5, 12 Pro Mini PC - NUC12WSKi5, 13 Pro Kit - NUC13ANHi5 |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 512 GB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | 3D multi-level cell (MLC) |
| Form Factor | M.2 2280 |
| Interface | PCIe 3.0 x4 (NVMe) |
| Features | Microsoft eDrive compatible, Auto Garbage Collection Algorithm, V-NAND Technology, Temperature Monitoring, NVM Express (NVMe) 1.3, Samsung Phoenix Controller |
| Width | 0.9 in |
| Depth | 3.2 in |
| Height | 0.1 in |
| Weight | 0.28 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | IEEE 1667 |
| Power | |
| Power Consumption | 8.5 Watt (active configurable max) ¦ 5.2 Watt (active) ¦ 30 mW (idle max) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms half-sine |
| Performance | |
| SSD Endurance | 600 TB |
| Internal Data Rate | 3500 MBps (read) / 2300 MBps (write) |
| Maximum 4KB Random Write | 500000 IOPS |
| Maximum 4KB Random Read | 370000 IOPS |
| Reliability | |
| MTBF | 1,500,000 hours |
| Compatibility Information | |
| Designed For | Intel Next Unit of Computing 12 Pro Kit - NUC12WSHv7, 12 Pro Kit - NUC12WSKi3, 12 Pro Kit - NUC12WSKi5, 12 Pro Mini PC - NUC12WSKi5, 13 Pro Kit - NUC13ANHi5 |
| Expansion & Connectivity | |
| Interfaces | PCI Express 3.0 x4 (NVMe) - M.2 Card |
| Compatible Bay | M.2 2280 |
