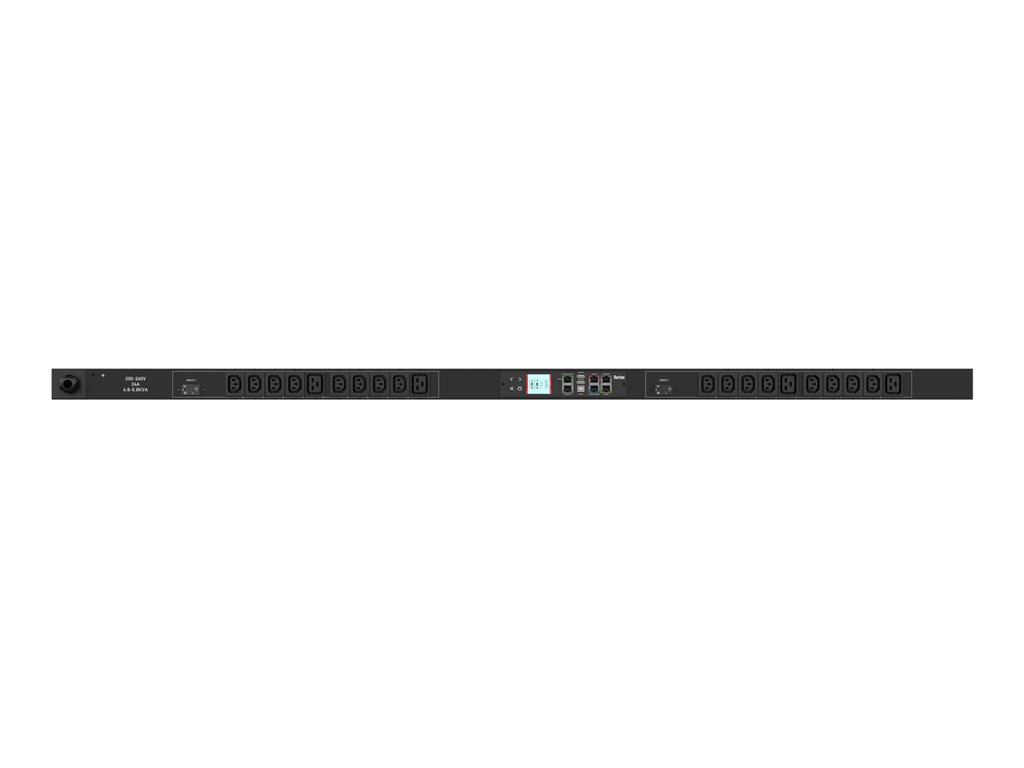

Power distribution unit (rack-mountable) - AC 208 V - 5000 VA - 1-phase - Ethernet 10/100/1000, RS-232, USB - input: NEMA L6-30P - output connectors: 20 (power IEC 60320 C13, IEC 60320 C19) - 0U - 10 ft cord - black
| Main Specifications | |
|---|---|
| Product Description | Raritan PX3-5464 - power distribution unit - 5000 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 0U |
| Weight | 11.24 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 208 V |
| Output Voltage | AC 208 V |
| Power Capacity | 5000 VA |
| Power Capacity Details | 4.8 kVA at 200 V, 5.8 kVA at 240 V |
| Input Connectors | 1 x power NEMA L6-30P |
| Output connectors | 16 x power IEC 60320 C13 12 A ¦ 4 x power IEC 60320 C19 16 A |
| Networking | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SNMP 3, Telnet, SNMP 2, SSH, SMTP, JSON-RPC, Modbus TCP |
| Color | Black |
| Dimensions (WxDxH) | 2 in x 2.6 in x 60.6 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x feature - RJ-45 ¦ 1 x console/modem - RJ-45 ¦ 1 x sensor - RJ-45 ¦ 1 x expansion - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| Features | Vertical orientation, powder coated, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, metering per branch circuit breaker, metering per output receptacle, remote outlet switching, cascadable, LCD display, Auto-Flip Current Display, bottom-front feed cord entry, ARM Cortex A5 CPU, 16MB SPI Flash, 64MB DDR2 RAM, Raritan SecureLock Ready, cord retention, 2 x LEGBXA66-20 overload protection |
| Compliant Standards | IEC 62053-21, ISO 62053-21, UL, ICES-003, FCC Part 15 A, RoHS |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SNMP 3, Telnet, SNMP 2, SSH, SMTP, JSON-RPC, Modbus TCP |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Power Output Connectors Details | 16 x power IEC 60320 C13 12 A ¦ 4 x power IEC 60320 C19 16 A |
| Output Voltage | AC 208 V 50/60 Hz |
| Max Electric Current | 30 A |
| Power Capacity | 5000 VA |
| Power Capacity Details | 4.8 kVA at 200 V, 5.8 kVA at 240 V |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 2.6 in |
| Height | 60.6 in |
| Weight | 11.24 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 14 in |
| Shipping Depth | 5.3 in |
| Shipping Height | 67.1 in |
| Shipping Weight | 15.65 lbs |
