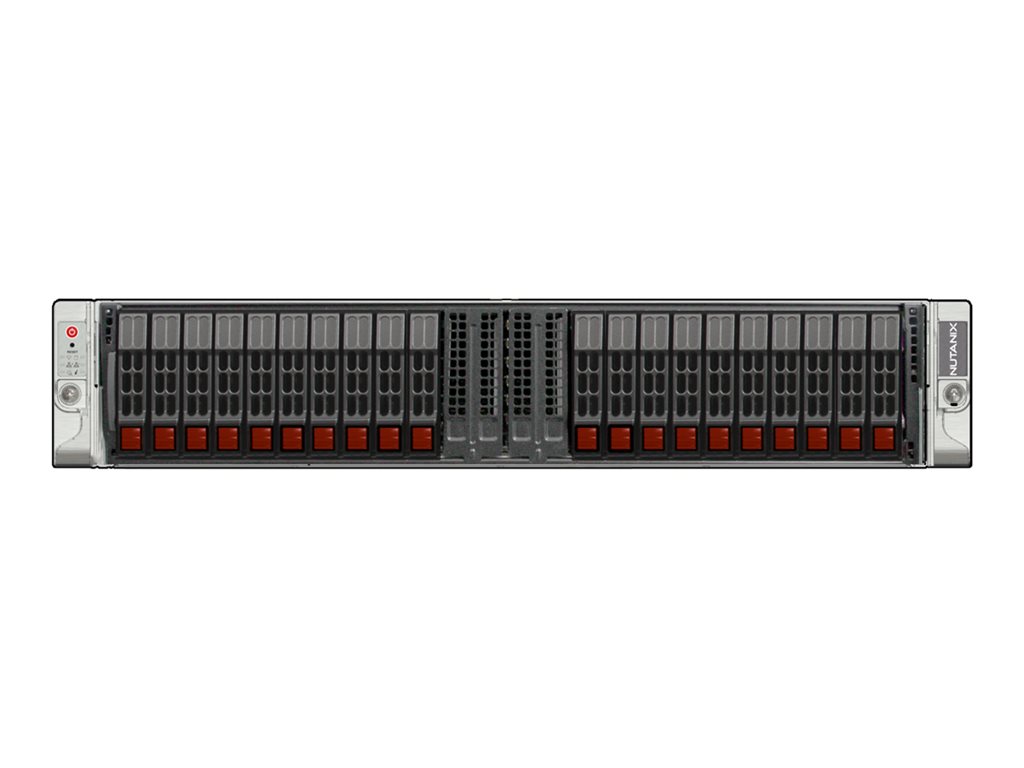

Application accelerator - 10GbE - 2U - 1 node - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Nutanix Xtreme Computing Platform NX-8150-G9 - application accelerator |
| Device Type | Application accelerator |
| Form Factor | Rack-mountable - 2U |
| Processor | 2 x Intel Xeon Silver 4510 - 2.4 GHz |
| RAM | 4096 GB (max) |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Power | (50/60 Hz) |
| Pricing Type | 1 node |
| Environmental Standards | ENERGY STAR Qualified |
| Dimensions (WxDxH) | 17.5 in x 29.8 in x 3.5 in |
| Weight | 50.04 lbs |
| General | |
| Device Type | Application accelerator |
| Height (Rack Units) | 2U |
| Built-in Devices | 4 x 80 mm fans |
| Width | 17.5 in |
| Depth | 29.8 in |
| Height | 3.5 in |
| Weight | 50.04 lbs |
| Expansion / Connectivity | |
| Expansion Bays | 20 (total) / 20 (free) x hot-swap |
| Expansion Slots | 3 (total) / 3 (free) x expansion slot |
| Interfaces | 2 x 10GBase-T - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 2 x 10Gb Ethernet - SFP+ x 4 ¦ 2 x USB 3.0 - Type A |
| Miscellaneous | |
| Compliant Standards | BIS, BSMI, CSA, CSA-US, EAC, FCC, ICES, KCC, RCM, REACH, RoHS, S Mark, SABS, SII, UkrSEPRO, UL, VCCI-A, WEEE, cUL, UKCA |
| Pricing Type | 1 node |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Features | 12-core CPU |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Voltage Required | (50/60 Hz) |
| Power Provided | 2000 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 86 °F |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 2 x Intel Xeon Silver 4510 2.4 GHz |
| RAM | (4096 GB max) |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
