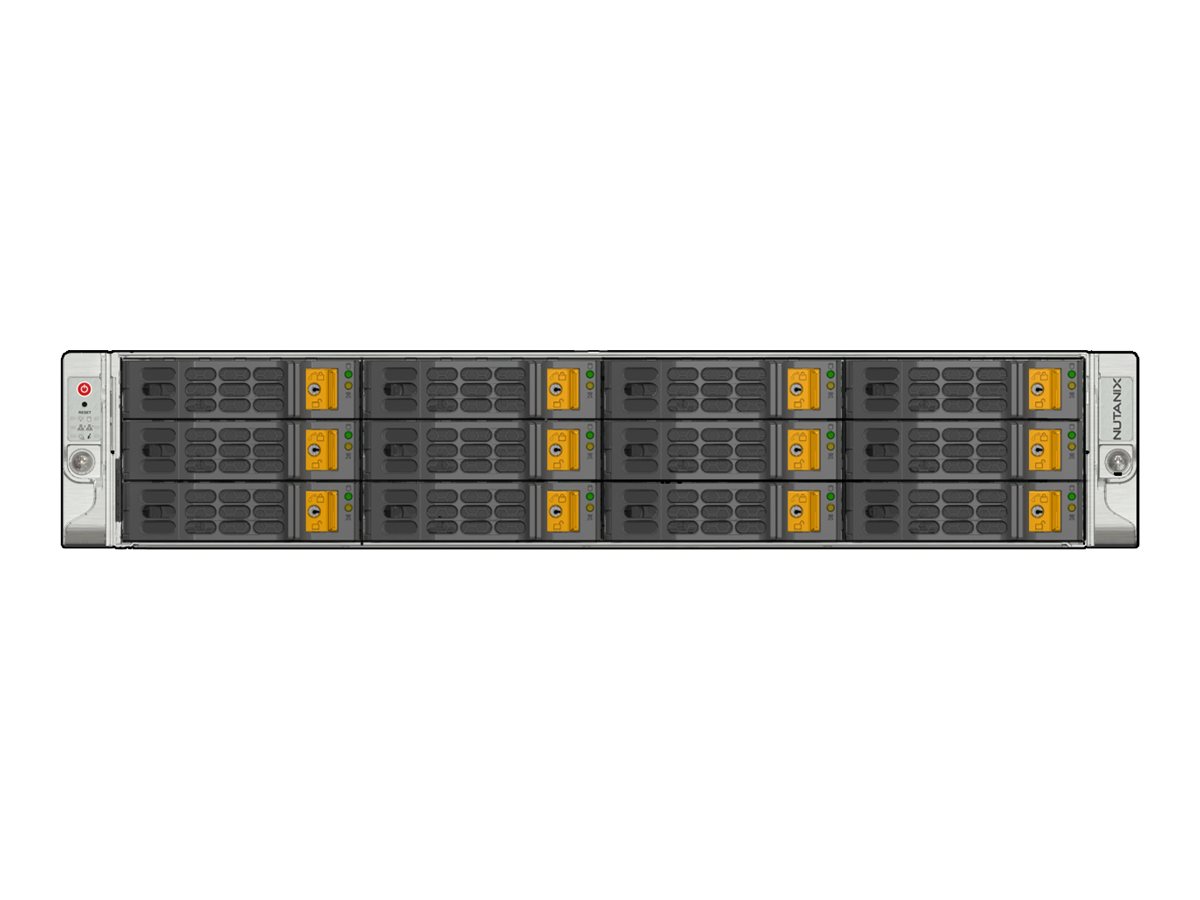

Application accelerator - 10GbE - 2U - 3 nodes - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Nutanix NX-1365-G9 - application accelerator |
| Device Type | Application accelerator |
| Form Factor | Rack-mountable - 2U |
| Processor | 2 x Intel Xeon Silver 4510 - 2.4 GHz |
| RAM | 0 GB (installed) / 4096 MB (max) |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Included Accessories | Power cable |
| Power | AC 208-240 V |
| Power Redundancy | Yes |
| Pricing Type | 3 nodes |
| Environmental Standards | ENERGY STAR Qualified |
| Dimensions (WxDxH) | 17.5 in x 31.5 in x 3.5 in |
| General | |
| Device Type | Application accelerator |
| Height (Rack Units) | 2U |
| Built-in Devices | 2 x 512 GB M.2 boot drives, 4 x 80 mm fans |
| Width | 17.5 in |
| Depth | 31.5 in |
| Height | 3.5 in |
| Expansion / Connectivity | |
| Expansion Bays | 6 (total) / 6 (free) x hot-swap - 3.5" |
| Expansion Slots | 2 (total) / 0 (free) x M.2 ¦ 3 (total) / 3 (free) x PCI Express |
| Interfaces | 2 x 10GBase-T - RJ-45 ¦ 1 x IPMI - RJ-45 ¦ 2 x 10GBase-T - SFP+ ¦ 1 x VGA - HD-15 |
| Miscellaneous | |
| Included Accessories | Power cable |
| Compliant Standards | BIS, BSMI, CSA, CSAus, EAC, FCC, ICES, KCC, RCM, REACH, RoHS, S Mark, SABS, SII, UKCA, UkrSEPRO, UL, VCCI-A, WEEE, cUL |
| Pricing Type | 3 nodes |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Status Indicators | Power, power fail, information, network, HDD activity |
| Features | UID button |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 208-240 V |
| Power Provided | 2000 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 77 °F |
| Humidity Range Operating | 20 - 85% |
| Processor / Memory / Storage | |
| Processors Installed | 2 x Intel Xeon Silver 4510 2.4 GHz |
| Max Supported Qty | 2 |
| RAM | 0 GB (4096 MB max) DDR5 SDRAM DIMM 288-pin |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
