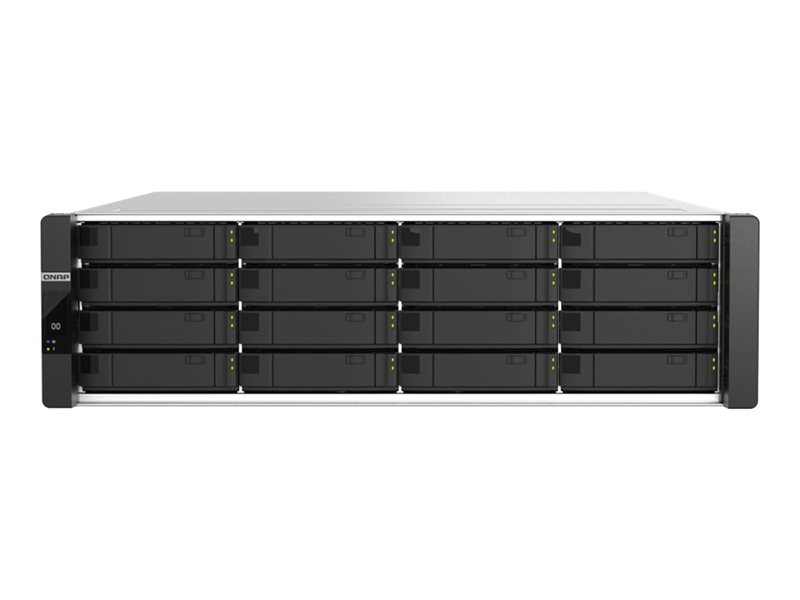

NAS server - 16 bays - rack-mountable - SAS 12Gb/s - RAID 0, 1, 5, 6, 10, 50, JBOD, 60, RAID TP - RAM 128 GB - Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support - 3U
| Main Specifications | |
|---|---|
| Product Description | QNAP ES1686dc R2 - NAS server |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 3U |
| Installed Devices / Modules Qty | 0 (installed) / 16 (max) |
| Dimensions (WxDxH) | 17.6 in x 23.1 in x 5.2 in |
| Weight | 66.62 lbs () |
| Localization | United States |
| Processor | 2 x Intel Xeon D-2142IT 1.9 GHz (8-core) |
| Storage Controller | RAID SAS 12Gb/s RAID 0, 1, 5, 6, 10, 50, JBOD, 60, RAID TP |
| Networking | 1GbE, 10GbE |
| Performance | Concurrent connections (CIFS): 10000 - (with maximum memory) |
| RAM | 128 GB |
| Power | AC 90 - 264 V |
| Power Redundancy | Yes |
| Storage Operating System | QNAP QES 2.2.1 |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 3U |
| Installed Devices / Modules Qty | 0 (installed) / 16 (max) |
| Width | 17.6 in |
| Depth | 23.1 in |
| Height | 5.2 in |
| Weight | 66.62 lbs () |
| Built-in Devices | 64 GB SSD, 3 x 60 mm fans, buzzer |
| Localization | United States |
| Expansion / Connectivity | |
| Expansion Bays | 16 (total) / 16 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 2 (total) / 2 (free) x PCI Express 3.0 x8 ¦ 8 (total) / 0 (free) x DIMM 288-pin ¦ 1 (total) / 0 (free) x M.2 |
| Interfaces | 3 x Ethernet 1000Base-T - RJ-45 ¦ 4 x Ethernet 10Gb - SFP+ ¦ 2 x USB 3.2 Gen 1 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | 2 x network cable ¦ 1 x RJ-11 to RS-232 adapter |
| Features | Reset button |
| Compliant Standards | FCC Class A certified, EN 55022 Class A, EN55024, EN60950, BSMI, VCCI, CB, LVD |
| Included Accessories | 2 x power cables, 64 x flat head screws (for 3.5" HDD), 64 x flat head screws (for 2.5" HDD), rack rail kit, 2 x battery backup units |
| Networking | |
| Data Link Protocol | 1GbE, 10GbE |
| Network / Transport Protocol | IPv4, IPv6, FTP, iSCSI, SMSC |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, LDAP, FTPS, TFTP, HTTP, HTTPS, SSH, SMTP, Bonjour |
| Network Services Compatibility | Microsoft CIFS, Microsoft Active Directory (AD), FTP, FTPS, HTTP, HTTPS, Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4.1 (NFS v4.1), File Level Security (ACLs) |
| Performance | Concurrent connections (CIFS): 10000 - (with maximum memory) |
| Features | Floating point unit, Encryption Engine, SSD cache acceleration support, WOL, Jumbo Frames support, Storage Pool, JBOD Expansion, fibre channel service, storage QoS, RAID Group, RAID Hot Spare, End-to-End Data Integrity, silent error detection and self-healing, Disk S.M.A.R.T. Data Migration, SSD trim, SSD life estimation, Shared Folder Snapshot, LUN snapshot, FTP server, Resource Monitor, Network Recycle Bin, Smart Fan, CLI management, iSER, 2-factor authentication, Service binding, failover support |
| Encryption Algorithm | AES-NI |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Yes |
| Voltage Required | AC 90 - 264 V |
| Power Consumption Operational | 500.87 watt |
| Power Provided | 700 watt |
| Software / System Requirements | |
| Storage Operating System | QNAP QES 2.2.1 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Storage Controller | |
| Type | RAID |
| Interface Type | SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60, RAID TP |
| Processor / Memory | |
| Processors Installed | 2 x Intel Xeon D-2142IT 1.9 GHz |
| Number of Cores | 8-core |
| Max Supported Qty | 2 |
| Max Turbo Speed | 3 GHz |
| RAM | 128 GB (installed) / 512 GB (supported) - DDR4 |
| Features | Registered, ECC |
| Flash Memory Installed | 4 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 76.98 lbs |
