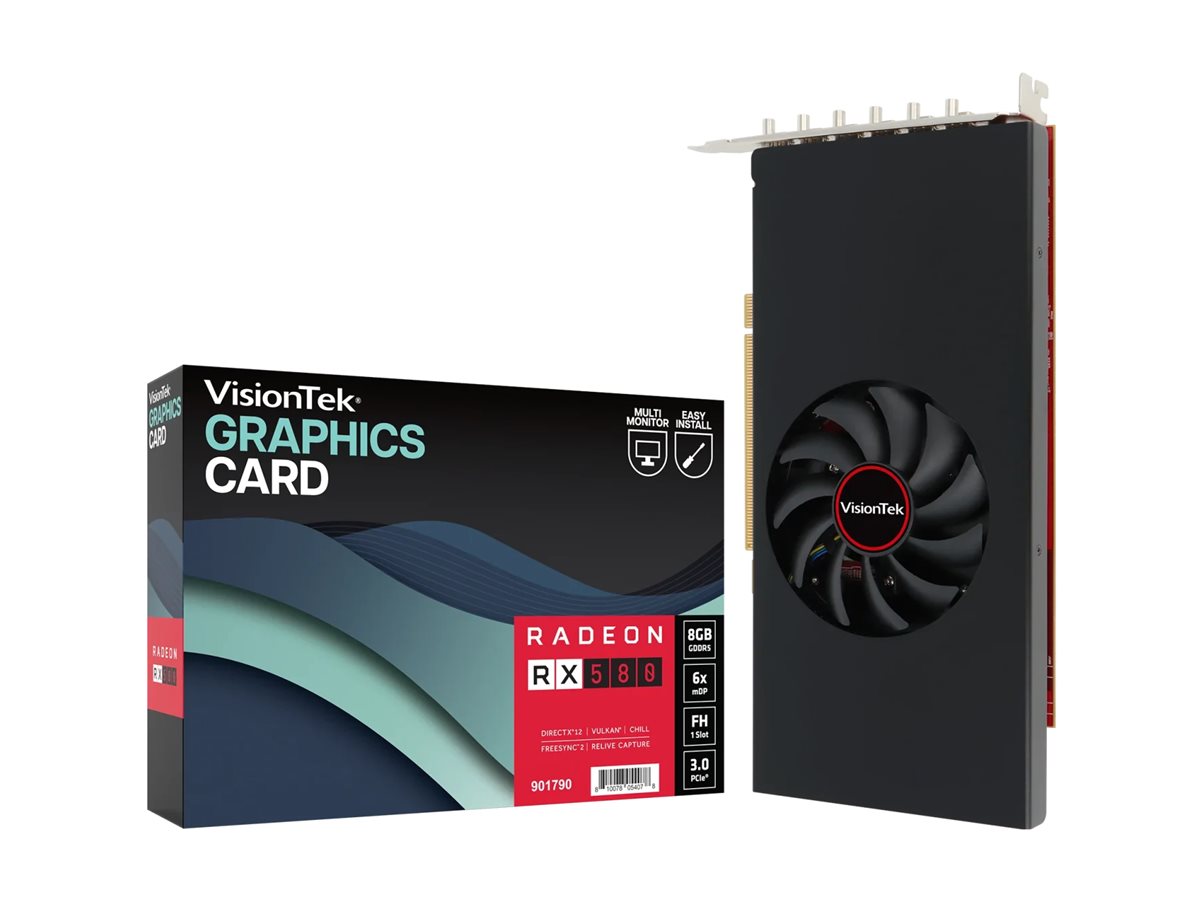

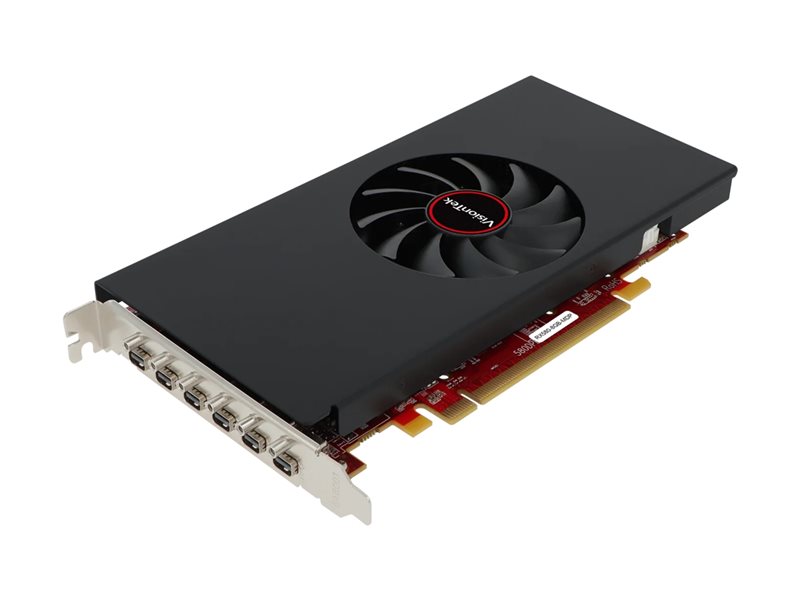

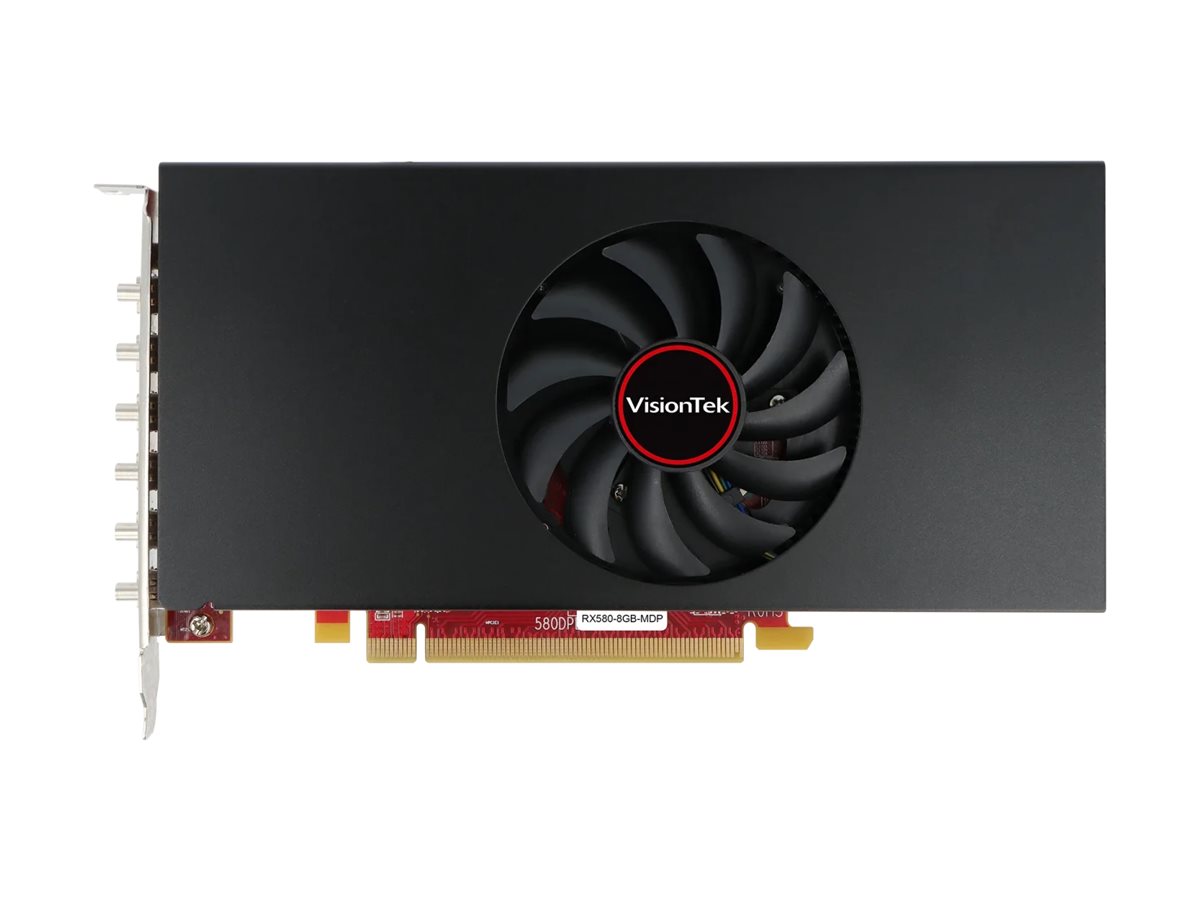

Graphics card - Radeon RX 580 - 8 GB GDDR5 - PCIe 3.0 x16 - 6 x DisplayPort, HDMI
| Main Specifications | |
|---|---|
| Product Description | VisionTek Radeon RX 580 - graphics card - Radeon RX 580 - 8 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | AMD Radeon RX 580 |
| Memory | 8 GB GDDR5 |
| Core Clock | 1244 MHz |
| Effective Memory Clock | 1750 MHz |
| Memory Interface | 256-bit |
| Max Resolution | 4K |
| Max Monitors Supported | 4 |
| Interfaces Details | 6 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12, OpenCL 2.0, OpenGL 4.5 |
| Dimensions (WxDxH) | 4.4 in x 8.1 in x 0.7 in |
| Manufacturer Warranty | 3-year warranty with product registration |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | AMD Radeon RX 580 |
| Core Clock | 1244 MHz |
| Max Resolution | 4K at 60 Hz |
| Max Monitors Supported | 4 |
| Interfaces Details | 6 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12, OpenCL 2.0, OpenGL 4.5 |
| Features | AMD Eyefinity Technology, AMD PowerTune technology, FreeSync Technology, Radeon Chill, Radeon ReLive, Video Codec Engine (VCE), Virtual Super Resolution (VSR) |
| Memory | |
| Size | 8 GB |
| Technology | GDDR5 SDRAM |
| Effective Clock Speed | 1750 MHz |
| Bus Width | 256-bit |
| Bandwidth | 224 GBps |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years with product registration (within 30 days of purchase) |
| Miscellaneous | |
| Power Consumption Operational | 75 watt |
| Included Accessories | Full-height bracket |
| Width | 4.4 in |
| Depth | 8.1 in |
| Height | 0.7 in |
| Weight | 15.8 oz |
| System Requirements | |
| OS Required | Linux (64-bit), Microsoft Windows 7 / 10 / 11, Ubuntu (64-bit) |
| Min RAM Size | 4 GB |
| Required Power Supply | 350 W |
| Additional Requirements | 16 pin PCI Express power connector |
