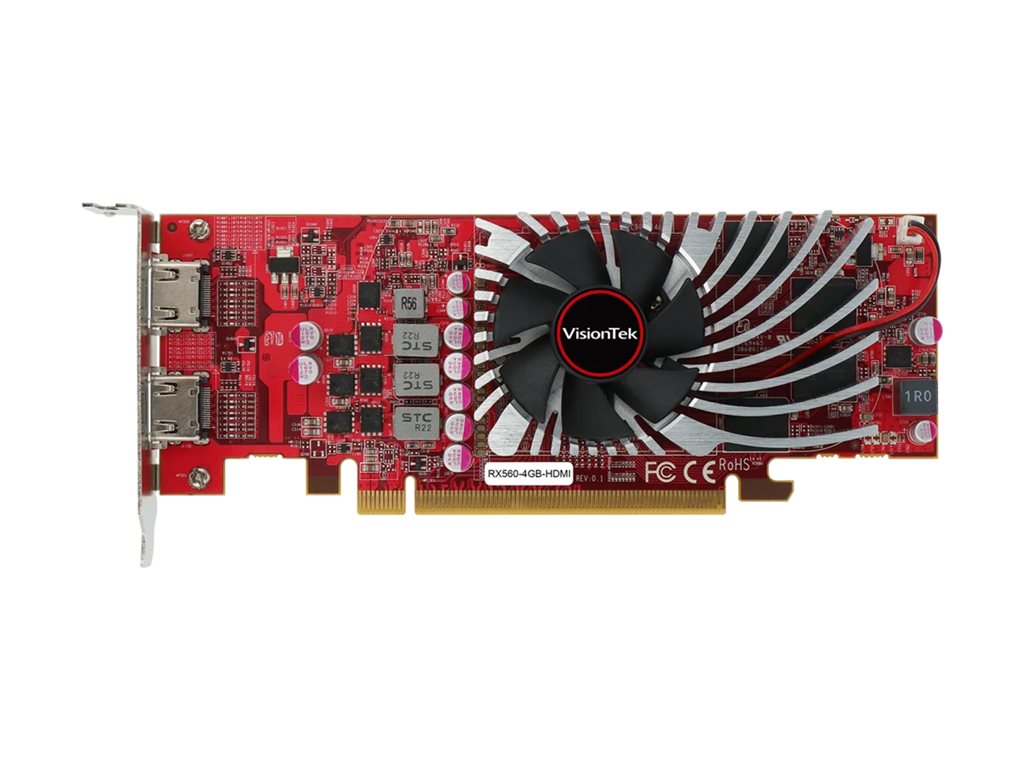

Graphics card - Radeon RX 560 - 4 GB GDDR5 - PCIe 3.0 x8 - HDMI
| Main Specifications | |
|---|---|
| Product Description | VisionTek Radeon RX 560 - graphics card - Radeon RX 560 - 4 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x8 |
| Graphics Engine | AMD Radeon RX 560 |
| Memory | 4 GB GDDR5 |
| Core Clock | 1150 MHz |
| Effective Memory Clock | 1500 MHz |
| Memory Interface | 128-bit |
| Max Resolution | 4K |
| Max Monitors Supported | 2 |
| Interfaces Details | 2 x HDMI |
| API Supported | DirectX 12, OpenCL 2.0, OpenGL 4.5 |
| Dimensions (WxDxH) | 0.8 in x 7 in x 2.7 in |
| Manufacturer Warranty | 3-year warranty with product registration |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x8 |
| Graphics Engine | AMD Radeon RX 560 |
| Core Clock | 1150 MHz |
| Max Resolution | 4K at 60 Hz |
| Max Monitors Supported | 2 |
| Interfaces Details | 2 x HDMI |
| API Supported | DirectX 12, OpenCL 2.0, OpenGL 4.5 |
| Features | AMD Eyefinity Technology, AMD PowerTune technology, FreeSync Technology, Radeon Chill, Radeon ReLive, Video Codec Engine (VCE), Virtual Super Resolution (VSR) |
| Memory | |
| Size | 4 GB |
| Technology | GDDR5 SDRAM |
| Effective Clock Speed | 1500 MHz |
| Bus Width | 128-bit |
| Bandwidth | 96 GBps |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years with product registration (within 30 days of purchase) |
| Miscellaneous | |
| Power Consumption Operational | 50 watt |
| Included Accessories | Full-height bracket |
| Width | 0.8 in |
| Depth | 7 in |
| Height | 2.7 in |
| Weight | 5.5 oz |
| System Requirements | |
| OS Required | Linux (64-bit), Microsoft Windows 7 / 10 / 11, Ubuntu (64-bit) |
| Min RAM Size | 2 GB |
| Required Power Supply | 350 W |
