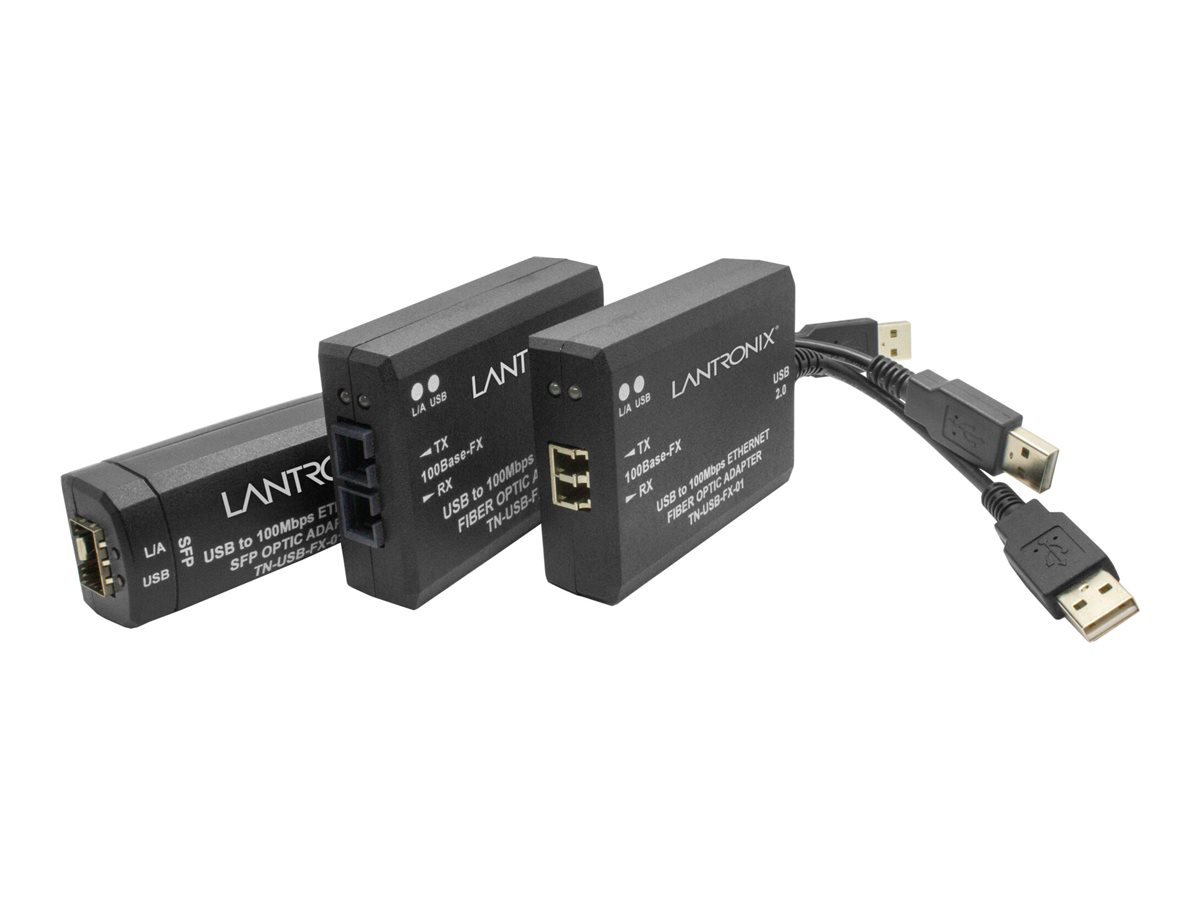

Network adapter - USB 2.0 - 100Mb LAN - 100Base-FX - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix TN-USB Series - network adapter - USB 2.0 - TAA Compliant |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | USB 2.0 |
| Dimensions (WxDxH) | 2.2 in x 9.2 in x 0.8 in |
| Weight | 15.87 oz |
| Cabling Type | Ethernet 100Base-FX |
| Data Link Protocol | 100Mb LAN |
| Max Transfer Distance | 1.2 miles |
| Data Transfer Rate | 100 Mbps |
| Performance | Maximum data rate (USB 2.0): 480 Mbps |
| Compliant Standards | IEEE 802.3-2008 |
| System Requirements | Microsoft Windows 7 / 8 / 8.1 / 10 |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | USB 2.0 |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Base-FX - LC multi-mode - female - x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Cables Included | 1 x USB-A cable (integrated) |
| MTBF | >200,000 hours |
| Compliant Standards | NDAA, EN55022 Class B, EN55024, FCC Class B certified, MIL-HDBK-217F |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 100Base-FX |
| Data Link Protocol | Fast Ethernet |
| Data Transfer Rate | 100 Mbps |
| Max Transfer Distance | 1.2 miles |
| Performance | Maximum data rate (USB 2.0): 480 Mbps |
| Status Indicators | Link/activity, speed/activity |
| Features | 11 dB link budget, USB powered, ABS housing, Jumbo Frames support (up to 1518 bytes) |
| Compliant Standards | IEEE 802.3-2008 |
| Power | |
| Power Consumption Operational | 1.12 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 9.2 in |
| Height | 0.8 in |
| Weight | 15.87 oz |
