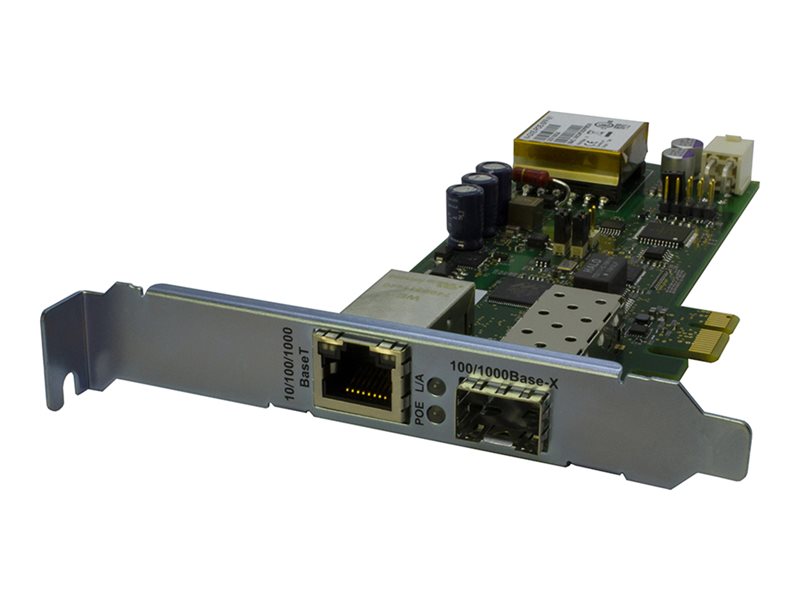

Network adapter - PCIe 2.1 low profile - 1000Base-X x 1 + 1000Base-T (PoE+) x 1 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix N-GXE-POE-xx-01 Series - network adapter - PCIe 2.1 - 1000Base-X x 1 + 1000Base-T (PoE+) x 1 - TAA Compliant |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.1 x1 |
| PCI Specification Revision | PCIe 2.1 |
| Ports | 1000Base-X x 1 + 1000Base-T (PoE+) x 1 |
| Dimensions (WxDxH) | 4.8 in x 6.5 in x 0.9 in |
| Weight | 31.74 oz |
| Cabling Type | Ethernet 100/1000Base-X, Ethernet 10/100/1000Base-T |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1 Gbps |
| Performance | Bandwidth (full duplex): 2 Gbps |
| MAC Address Table Size | 8K entries |
| Network / Transport Protocol | IPv6, TCP, UDP |
| Compliant Standards | IEEE 802.3-2000, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3af, IEEE 802.3at |
| Power | DC 3.3 V |
| System Requirements | Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Vista, Linux |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.1 x1 |
| PCI Specification Revision | PCIe 2.1 |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-X - SFP (mini-GBIC) - female ¦ 1 x 1000Base-T (PoE+) - RJ-45 - female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Compliant Standards | NDAA, EN55022 Class B, UL, EN55024 |
| TAA Compliant | Yes |
| Networking | |
| Ports | 1000Base-X x 1 + 1000Base-T (PoE+) x 1 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 100/1000Base-X, Ethernet 10/100/1000Base-T |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Performance | Bandwidth (full duplex): 2 Gbps |
| MAC Address Table Size | 8K entries |
| Network / Transport Protocol | IPv6, TCP, UDP |
| Status Indicators | Link/activity, PoE activity, speed, port duplex mode |
| Features | Jumbo Frames support (up to 10000 bytes), EEE, LED status indicators, Poe mode A (active), full duplex capability, PoE powered, VoIP support, QoS, VLAN support, flow control, VLAN filtering, WOL, PXE 2.1 support |
| Compliant Standards | IEEE 802.3-2000, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3af, IEEE 802.3at |
| Power | |
| Voltage Required | DC 3.3 V |
| Power Consumption Operational | 1.6 watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Vista, Linux |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 4.8 in |
| Depth | 6.5 in |
| Height | 0.9 in |
| Weight | 31.74 oz |
