ntronix M/GE-T Series M/GE-T-LX-01 -
| Main Specifications | |
|---|---|

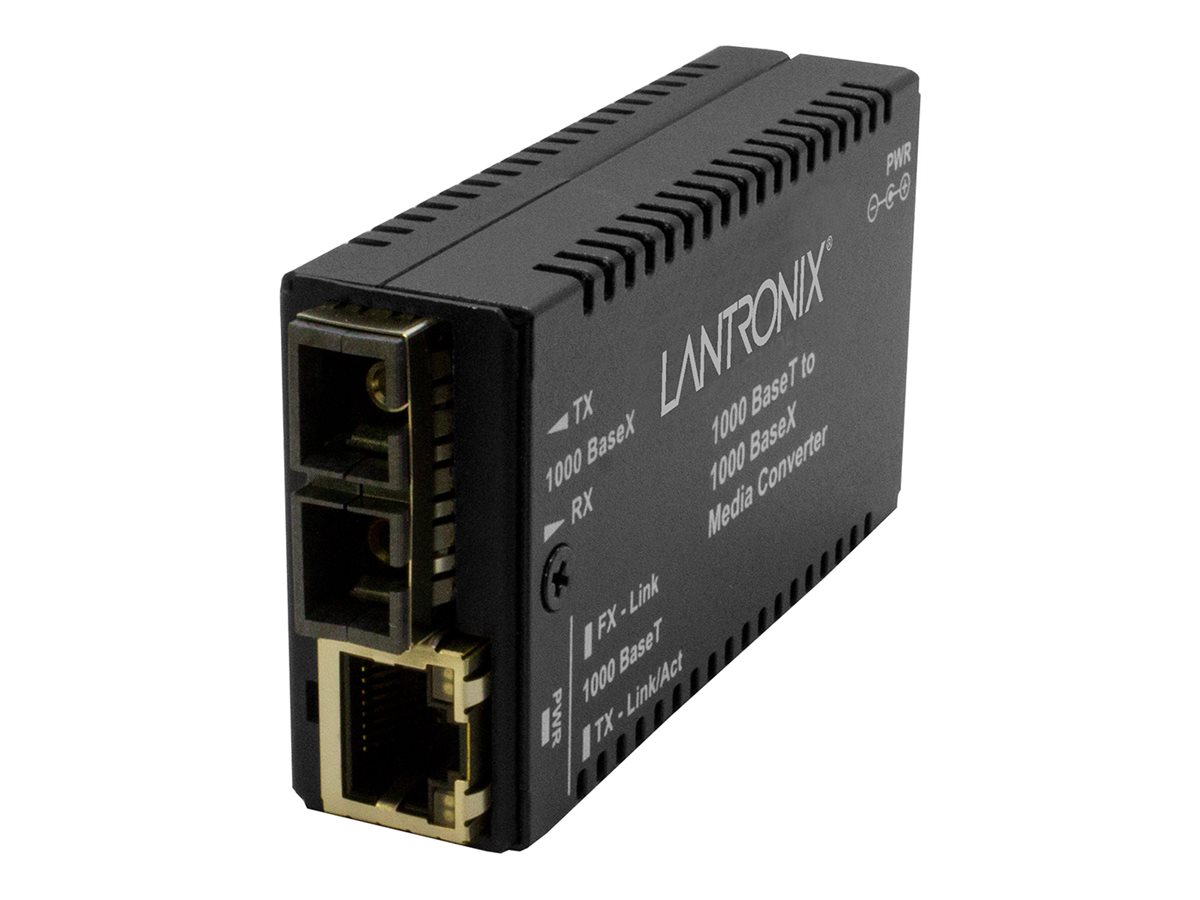

| Product Description | Lantronix M/GE-T Series - fiber media converter - 1GbE - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / SC single-mode |
| Form Factor | External |
| Localization | North America |
| Cabling Type | 1000Base-LX, 1000Base-T |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 1GbE |
| Max Transfer Distance | 6.2 miles |
| Dimensions (WxDxH) | 1.8 in x 3.3 in x 0.9 in |
| Weight | 31.74 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Localization | North America |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-LX - SC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Mounting Kit | Optional |
| Compliant Standards | NDAA, UL, cUL, FCC Class A certified, CISPR 22, EN 55022 Class A, EN55024 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-LX, 1000Base-T |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 6.2 miles |
| Status Indicators | Power, link/activity |
| Features | 10.5 dB link budget, auto-negotiation, auto-uplink (auto MDI/MDI-X), Automatic Link Restoration, Jumbo Frames support (up to 13312 bytes), Link Pass-Through |
| Compliant Standards | IEEE 802.3z, IEEE 802.3ab |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 2.6 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 1.8 in |
| Depth | 3.3 in |
| Height | 0.9 in |
| Weight | 31.74 oz |
