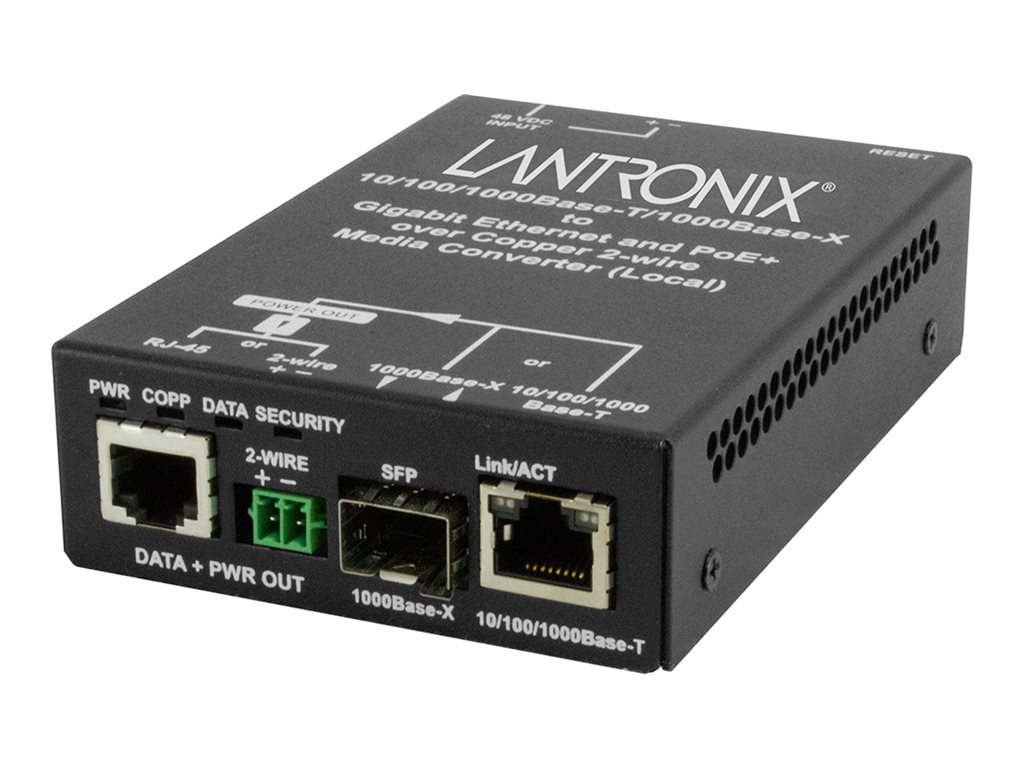

Fiber media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 100Base-X, 1000Base-X - RJ-45 / SFP (mini-GBIC) - up to 1800 ft - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix EO2Px Series - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / SFP (mini-GBIC) |
| Form Factor | External |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 100Base-X, 1000Base-X |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Remote Management Protocol | IPv4, IPv6, DHCP, DNS, NTP |
| Max Transfer Distance | 1800 ft |
| Power Over Ethernet (PoE) | PoE+ |
| Dimensions (WxDxH) | 3.2 in x 5.4 in x 1.2 in |
| Weight | 16.93 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-X - SFP female ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ output) - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Mounting Kit | Optional |
| MTBF | >200,000 hours |
| Compliant Standards | Plug and Play, IP30, FCC Part 15, CISPR 22, EN55022, EN55024, NDAA |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 100Base-X, 1000Base-X |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Remote Management Protocol | IPv4, IPv6, DHCP, DNS, NTP |
| Max Transfer Distance | 1800 ft |
| Status Indicators | Power, secure, link/activity, PoE |
| Features | Power failure monitoring, Auto Power Reset (APR), firmware upgradable, auto-uplink (auto MDI/MDI-X), DHCP client, DNS client, NTP client |
| Encryption Algorithm | 128-bit AES |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Power | |
| Power Over Ethernet (PoE) | PoE+ |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.2 in |
| Depth | 5.4 in |
| Height | 1.2 in |
| Weight | 16.93 oz |
