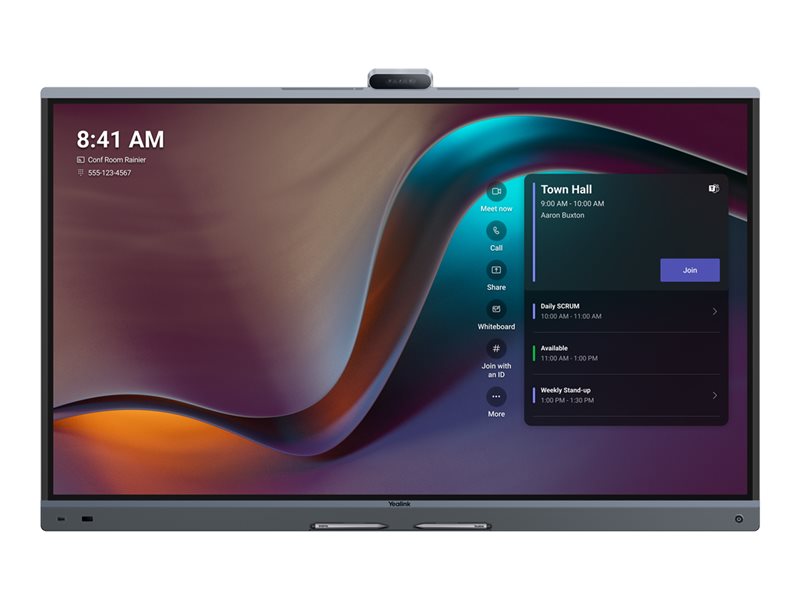

75" Diagonal Class LED-backlit LCD display - interactive - with built-in interactive whiteboard, touchscreen (multi touch), 4K camera and 16-microphone array - Android - 4K UHD (2160p) 3840 x 2160
| Main Specifications | |
|---|---|
| Product Description | Yealink MeetingBoard 75 Pro 75" LED-backlit LCD display - 4K - for interactive communication |
| Product Type | LED-backlit LCD flat panel display with built-in interactive whiteboard, touchscreen (multi touch), 4K camera and 16-microphone array |
| Diagonal Class | 75" |
| Commercial Use | Yes - interactive |
| Platform | Android |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Frame Rate & Enhancement Technology | 60 Hz Frequency |
| Video Interface | HDMI |
| HDMI Ports Qty | 1 ports |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LCD Backlight Technology | LED backlight |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Open Pluggable Standard (OPS) support |
| Picture Enhancements | 72% Color Gamut NTSC, 99% sRGB color gamut |
| Storage Capacity | 64 GB |
| USB | 3 ports |
| Included Accessories | 4 pen styluses, 3 cable ties |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 164 watt |
| Dimensions (WxDxH) - without stand | 67.1 in x 4.1 in x 42.6 in |
| Weight | 115.08 lbs |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption (Max) | 277 watt |
| Power Consumption Operational | 164 watt |
| Diagonal Class | 75" |
| Commercial Use | Yes - interactive |
| Combined With | Built-in interactive whiteboard, touchscreen (multi touch), 4K camera and 16-microphone array |
| Platform | Android |
| Operating System | Android OS 13 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Motion sensor |
| Video Interface | HDMI |
| HDMI Ports Qty | 1 ports |
| Picture Enhancements | 72% Color Gamut NTSC, 99% sRGB color gamut |
| Dimensions | Without stand |
| Width | 67.1 in |
| Depth | 4.1 in |
| Height | 42.6 in |
| Weight | 115.08 lbs |
| Miscellaneous | |
| Included Accessories | 4 pen styluses, 3 cable ties |
| Cables Included | CAT5E network cable - 10 ft |
| Compliant Standards | Microsoft Teams certified, Zoom certification, Plug and Play |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% |
| Display | |
| Color Support | 1070000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Frequency |
| LCD Backlight Technology | LED backlight |
| Coating | Anti-glare |
| Image Contrast Ratio | 1200:1 |
| Brightness | 400 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Touchpoints Qty | 20 |
| Commercial Features | Open Pluggable Standard (OPS) support |
| Additional Features | Infrared touch technology, 10-bit support, Apple AirPlay support |
| Connections | |
| Connector Type | 3 x USB 2.0 ¦ HDMI output ¦ HDMI input ¦ Audio input ¦ Audio output ¦ 2 x Gigabit LAN ¦ 2 x Yealink VCH ¦ Touch out ¦ Camera connector - top |
| Audio System | |
| Output Power / Total | 36 watt |
| Additional Features | Integrated speakers, echo cancellation, Micro Electro Mechanical System (MEMS), Automatic Gain Control (AGC), noise cancelling microphone, Lipsync, reverberation suppression |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 74.8 in |
| Depth (Shipping) | 8.9 in |
| Height (Shipping) | 45.7 in |
| Weight (Shipping) | 143.3 lbs |
| Network & Internet Multimedia | |
| Functionality | Whiteboard |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LAN Protocol | Gigabit Ethernet |
| Wi-Fi Protocol | 802.11ax, 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac |
| Bluetooth Version | Bluetooth 5.1 |
| Connect & Share | Wi-Fi Miracast |
| Dimensions & Weight Details | |
| Dimensions & Weight Details | Panel without stand - 67.1 in x 4.1 in x 42.6 in x 115.1 lbs ¦ Panel with stand - 67.1 in x 33.5 in x 77.2 in |
| Stands & Mounts | |
| Stand | Optional |
| Flat Panel Mount Interface | 800 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| Supported Video Formats | H.264 |
| USB Port | Yes |
| USB Ports Qty | 3 |
| Configuration | Quad-Core ( 2.2 GHz ) + Quad-Core ( 2.0 GHz ) - 8 GB - 64 GB |
