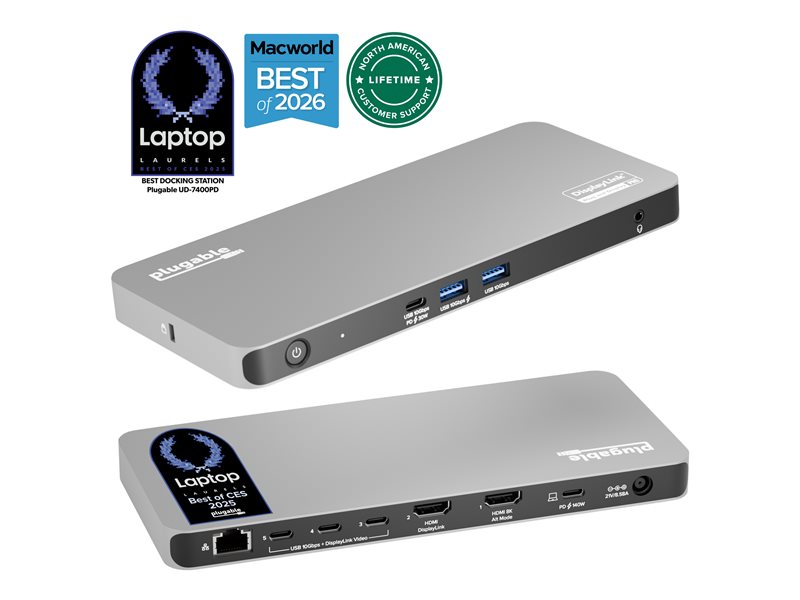

Docking station - USB-C - 2 x HDMI, 3 x USB-C - 1GbE, 2.5GbE - 180 Watt
| Main Specifications | |
|---|---|
| Product Description | Plugable UD-7400PD - docking station - USB-C - 2 x HDMI, 3 x USB-C - 1GbE, 2.5GbE |
| Product Type | Docking station |
| Docking Interface | USB-C |
| Video Interfaces | 2 x HDMI, 3 x USB-C |
| Dimensions (WxDxH) | 8.3 in x 3.7 in x 0.7 in |
| Weight | 17.35 oz |
| Networking | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | Power adapter 180 watt Power Provided (21 V) |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Docking station |
| Width | 8.3 in |
| Depth | 3.7 in |
| Height | 0.7 in |
| Weight | 17.35 oz |
| Expansion / Connectivity | |
| Interfaces | 3 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 2 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x USB-C with Power Delivery 3.1 (140 W) - 24 pin USB-C ¦ 1 x network - 2.5G Gigabit Ethernet - RJ-45 ¦ 1 x USB-C (30 W) - 24 pin USB-C ¦ 1 x USB-A 3.2 Gen2 - 9 pin USB Type A ¦ 1 x USB 3.2 Gen 2 with Battery Charging 1.2 - 9 pin USB Type A ¦ Headset - 3.5mm audio jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x USB-C 3.2 Gen 2 cable - 3.3 ft |
| Features | DockTag On Screen Display (OSD), DisplayLink DL-7400 chipset, security lock slot (cable lock sold separately), LED indicator |
| Security Slot Type | Kensington security slot |
| Compliant Standards | DisplayPort 1.4 |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Power Provided | 180 watt |
| Voltage Provided | 21 V |
| Video | |
| Max Resolution Details | 7680 x 4320 - 30 Hz (HDMI) ¦ 3840 x 2160 - 60 Hz (HDMI) ¦ 7680 x 4320 - 60 Hz (DisplayPort 1.4 only) |
