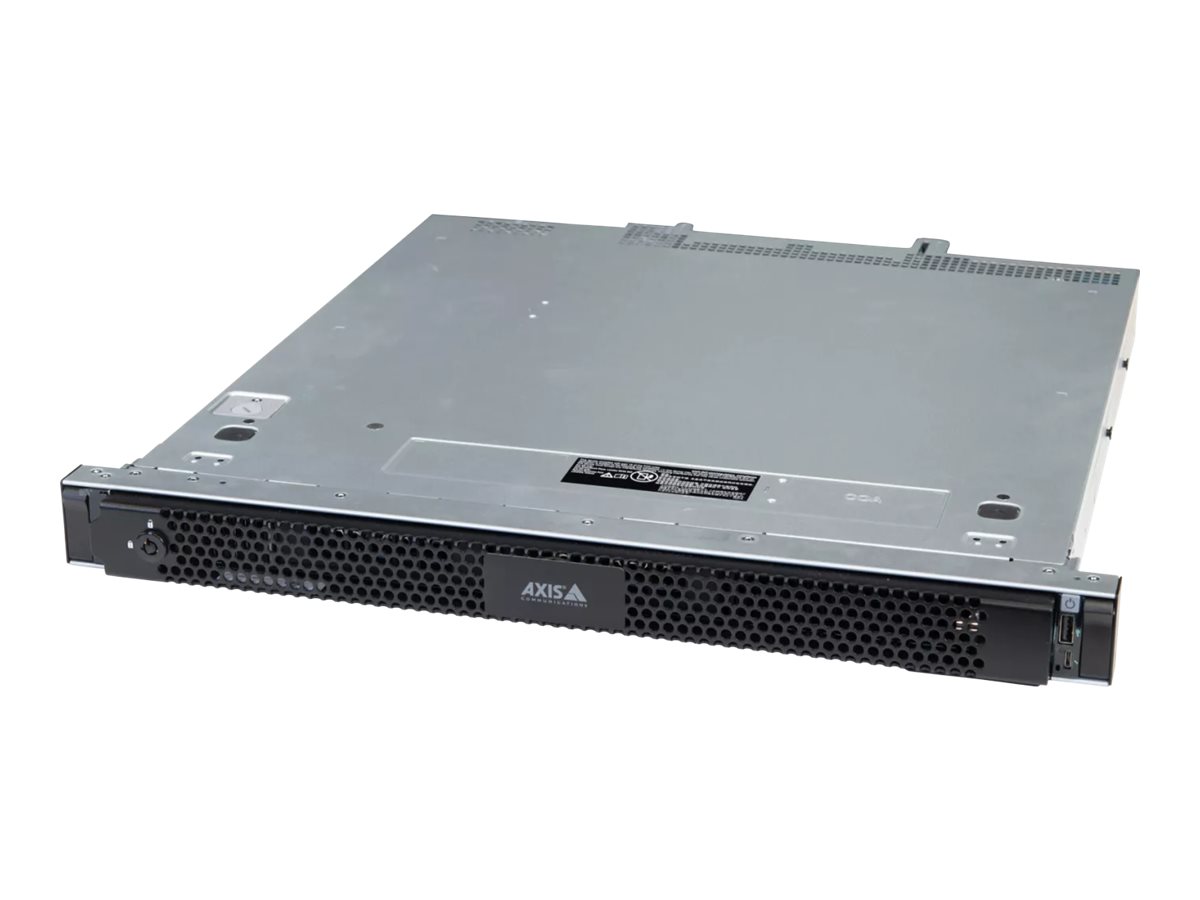

NVR - 32 channels - 1 x 12 TB - 480 GB - networked - 1U - rack-mountable - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | AXIS Camera Station S1224 - standalone NVR - 32 channels - TAA Compliant |
| Device Type | NVR - 32 channels - networked - rack-mountable - 1U |
| IP Cameras Supported | 24 |
| Hard Drive | 1 x 12 TB |
| Hard Drive(s) Supported | Quantity: 2 |
| Voltage | 100 - 240 V |
| Dimensions (WxDxH) | 19 in x 19.6 in x 1.7 in |
| Weight | 18.74 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5 years |
| General | |
| Device Type | NVR - rack-mountable - 1U |
| Video Channels | 32 |
| IP Cameras Supported | 24 |
| Package Content | Rack mount rails, power cable |
| OS Provided | Windows 11 IoT Enterprise LTSC |
| Software Included (Y) | AXIS Camera Station (24 licenses), iDRAC 9 basic license |
| TAA Compliant | Yes |
| Compliant Standards | EN 55035, EN55024, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, RCM, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, CNS 15936, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1 Third Edition, AS/NZS 62368.1: 2018, IS 13252, FIPS 140-2 Level 2, RoHS 2011/65/EU Amendment 2015/863, REACH 1907/2006/CE, SCIP |
| Warranty | 5 years |
| Networking | |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T, iDRAC |
| Features | Trusted Platform Module 2.0 (TPM 2.0), secure boot |
| Power | |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power Consumption | 55 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 80% (non-condensing) |
| Hard Drive | |
| Quantity Installed | 1 |
| Quantity Supported | 2 |
| Capacity | 12 TB |
| Connections | |
| Video Output Ports | VGA x 1 |
| Network Port | 10/100/1000Base-T x 2 |
| Other Ports | USB 2.0 x 2, iDRAC x 2, USB 3.2 x 1, serial |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 19.6 in |
| Height | 1.7 in |
| Weight | 18.74 lbs |
| Security DVR | |
| Networked | Yes |
| Video Server | |
| CPU | Intel Xeon E |
| HDD | 480 GB |
| RAM | 16 GB |
| Features | RAID 0 support, RAID 1 support, RAID 10 support |
