3LCD projector - 7000 ANSI lumens - WUXGA (1920 x 1200) - 16:10 - 1080p - LAN - white
| Main Specifications | |
|---|---|
| Product Description | Panasonic PT-VMZ7ST - 3LCD projector - LAN - white |
| Device Type | 3LCD projector - 1080p |
| Color | White |
| Brightness | 7000 ANSI lumens |
| Contrast Ratio | 5000000:1 (dynamic) |
| Resolution | WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Lens Shift Direction | Horizontal, vertical |
| Lamp Type | Laser diode |
| Lamp Life Cycle | Up to 20000 hour(s) - normal mode ¦ Up to 24000 hour(s) - economic mode |
| Video Input | LAN |
| Video Modes | 480i, 525i, 625i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, 2160/24p, 2160/25p, 2160/30p |
| Speakers | Speaker(s) - integrated |
| Platform | XiO Cloud, Crestron |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 16.3 in x 16.7 in x 4.7 in |
| Weight | 18.52 lbs |
| General | |
| Device Type | 3LCD projector - 1080p |
| Networking | Ethernet |
| Enclosure Color | White |
| Expansion / Connectivity | |

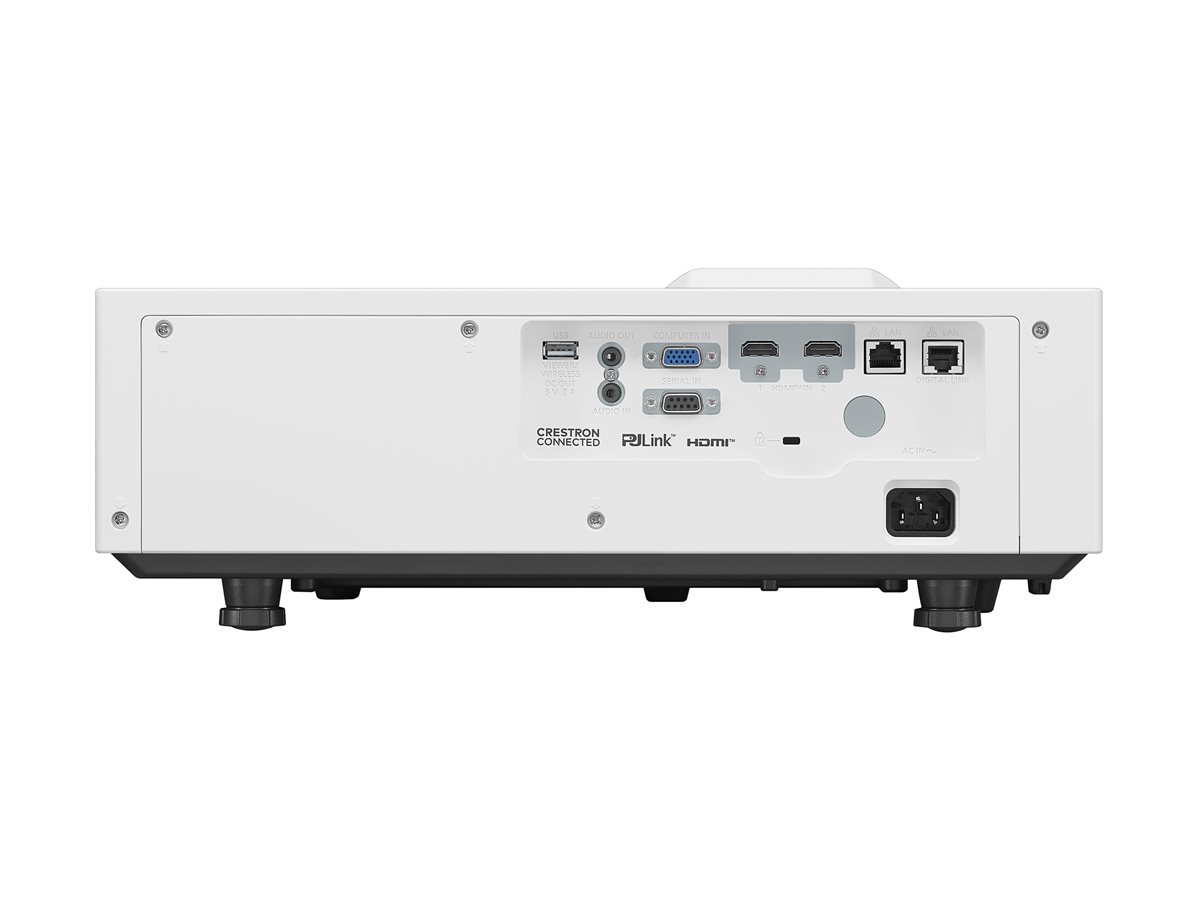

| Interfaces | 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232C input - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type A ¦ 1 x network - RJ-45 ¦ 1 x DIGITAL LINK - RJ-45 |
| Miscellaneous | |
| Included Accessories | Air filter, lens cover, lens cap strap, wireless remote control, battery for remote control |
| Security Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | IPv4, IPv6, CEC |
| Power | |
| Power Source | AC |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 20 Watt |
| Software / System Requirements | |
| Software Included | Multi Projector Monitoring & Control Software, Presenter Light for Windows, Wireless Projector App |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Sound Emission | 37 dB |
| Sound Emission (Economic Mode) | 37 dB |
| Video Input | |
| Video Interfaces | HDMI, VGA |
| Video Modes | 480i, 525i, 625i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, 2160/24p, 2160/25p, 2160/30p |
| LAN and Wireless Image Transferring Protocols | Wired LAN |
| Dimensions & Weight | |
| Width | 16.3 in |
| Depth | 16.7 in |
| Height | 4.7 in |
| Weight | 18.52 lbs |
| Projector | |
| Brightness | 7000 ANSI lumens |
| Contrast Ratio | 5000000:1 (dynamic) |
| Image Size | 69.7 in - 300 in |
| Throw Ratio | 0.797 - 1.01:1 |
| Uniformity | 85 % |
| Resolution | WUXGA - WUXGA (1920 x 1200) (native) / 4096 x 2160 (resized) |
| Native Aspect Ratio | 16:10 |
| Display Format | 2,304,000 pixels (1920 x 1200) x 3 |
| Max Sync Rate (V x H) | 85 Hz x 95.5 kHz |
| Lamp Type | Laser diode |
| Lamp Life Cycle | Up to 20000 hour(s) - normal mode ¦ Up to 24000 hour(s) - economic mode |
| Controls & Adjustments | Lens shift dial (horizontal), lens shift dial (vertical), keystone correction |
| Features | Plastic cabinet, 360° projection, Deep Color, LPCM playback, PJlink, DICOM Simulation Mode, Eco Management, Auto Image Rotation, SOLID SHINE Laser Technology, 24/7 operation, Digital Link, built-in angle sensor, curved correction, Crestron Connected, Cloning Function, Vivid Mode, auto power on |
| Lens | |
| Focus Type | Powered |
| Lens Aperture | F/1.53-1.66 |
| Zoom Type | Manual |
| Zoom Factor | 1.2x |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -25 / +25 |
| Horizontal Keystone Correction | -35 / +35 |
| Lens Shift Type | Manual |
| Lens Shift Direction | Horizontal, vertical |
| Vertical Lens Shift | 0% / 50% |
| Horizontal Lens Shift | 20% / 20% |
| Speakers | |
| Type | Integrated |
| Sound Output Mode | Mono |
| Output Power / Channel | 10 Watt |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | XiO Cloud, Crestron |
