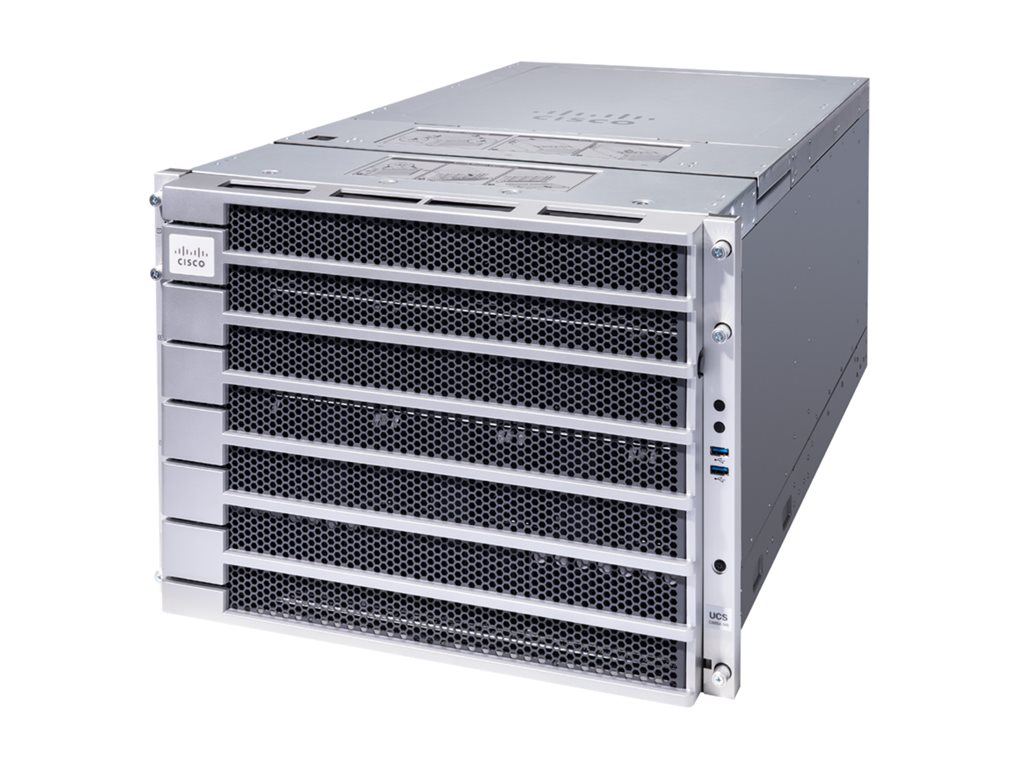

Server - CPU sled 2 x EPYC 9575F / up to 5 GHz - RAM 2.3 TB - no HDD - Gigabit Ethernet, 10 Gigabit Ethernet - monitor: none - with 8 x NVIDIA ConnectX-7
| Main Specifications | |
|---|---|
| Product Description | Cisco UCS C885A M8 - CPU sled EPYC 9575F 3.3 GHz - 2.3 TB - no HDD - with 8 x NVIDIA ConnectX-7 |
| Type | Server - CPU sled |
| Processor | 2 x AMD EPYC 9575F / 3.3 GHz (up to 5 GHz, (64-core) |
| RAM | 2.3 TB (installed) / 3 TB (max) - DDR5 SDRAM - ECC |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Networking | 1GbE, 10GbE |
| Power Redundancy | Yes |
| Manufacturer Warranty | Limited warranty - replacement - 3 years - response time: next business day |
| Bundled with | 8 x NVIDIA ConnectX-7 |
| General | |
| Type | Server |
| Product Form Factor | CPU sled |
| Internal Bays Qty | 1 |
| Bundled with | 8 x NVIDIA ConnectX-7 |
| Expansion / Connectivity | |
| Slots | 5 (total) / 4 (free) x PCIe 5.0 x16 (full-height, half-length) ¦ 8 (total) / 0 (free) x PCIe 5.0 x16 (full-height, half-length) ¦ 2 (total) / 1 (free) x PCIe 5.0 x8 / Open Compute Project mezzanine (OCP) 3.0 ¦ 1 (total) / 1 (free) x expansion slot ¦ 1 (total) / 1 (free) x M.2 Card |
| Interfaces | 2 x 10 Gigabit Ethernet - RJ-45 ¦ 2 x USB 2.0 - Type A ¦ 1 x USB 3.0 - Type A ¦ 1 x USB 3.0 - Type C ¦ 1 x USB 2.0 - Type C (debug) ¦ 1 x management - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 3 years - response time: next business day |
| Miscellaneous | |
| Compliant Standards | WEEE |
| RAM | |
| Installed Size | 2.3 TB (installed) / 3 TB (max) |
| Technology | DDR5 SDRAM - ECC |
| Effective Memory Speed | 3200 MHz |
| Rated Memory Speed | 3200 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 0 (empty) |
| Features | Registered |
| Configuration Features | 24 x 96 GB |
| Networking | |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Power | |
| Power Redundancy | Yes |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Hard Drive | |
| Type | No HDD |
| Processor / Chipset | |
| CPU | AMD EPYC 9575F |
| Clock Speed | 3.3 GHz |
| Max Turbo Speed | 5 GHz |
| Number of Cores | 64-core |
| CPU Qty | 2 |
| Max CPU Qty | 2 |
