Main Specifications
|
|---|
|
Product Description
|

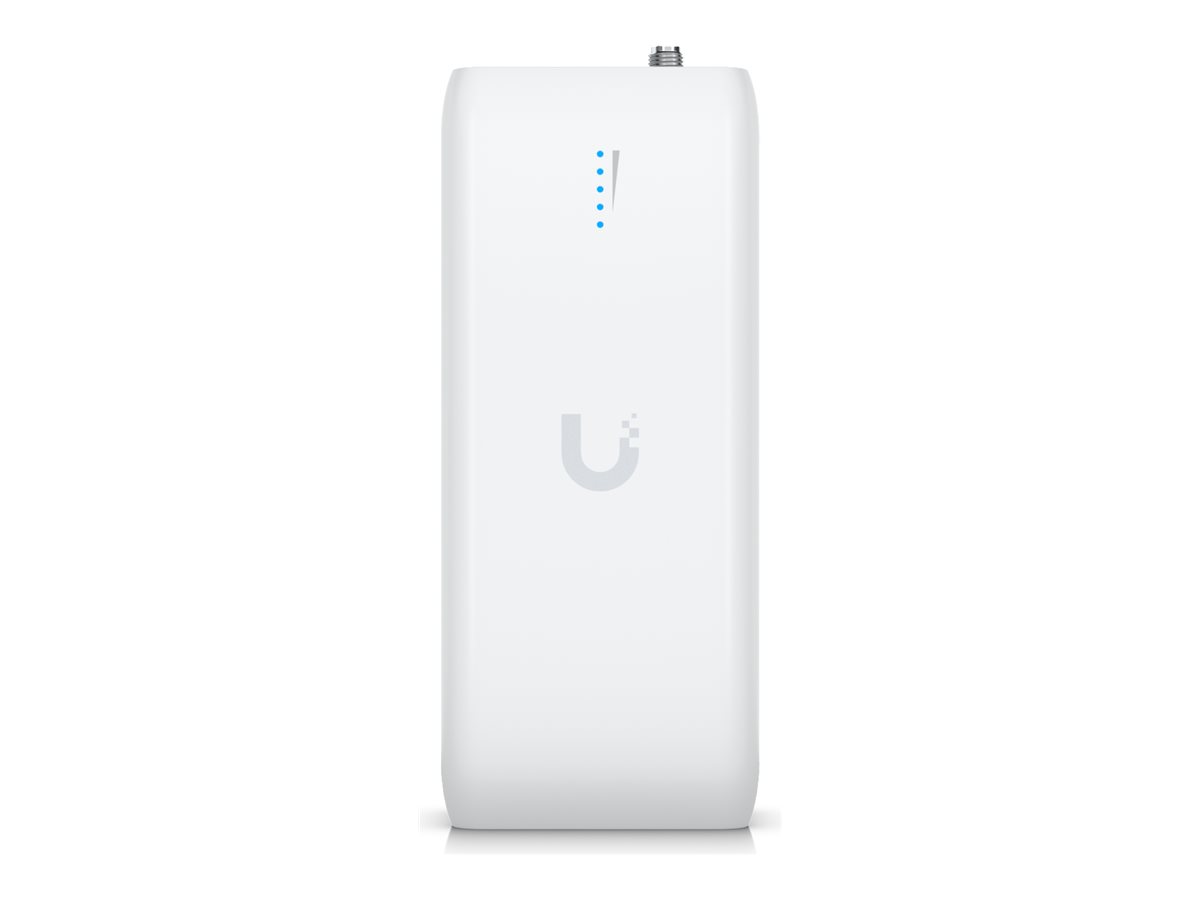

Ubiquiti UniFi Device Bridge Pro Sector - wireless bridge - Wi-Fi 5
|
|
Device Type
|
Wireless bridge
|
|
Form Factor
|
Pole mountable
|
|
Data Link Protocol
|
IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac
|
|
Frequency Band
|
5 GHz
|
|
Performance
|
Maximum data rate (5 GHz): 400 Mbps
|
|
Capacity
|
Spatial streams: 2
|
|
Included Accessories
|
Pole mount, power cable
|
|
Power Over Ethernet (PoE) Supported
|
Passive PoE
|
|
Power
|
DC 42.5 - 57 V
|
|
Dimensions (WxDxH)
|
5.1 in x 2.8 in x 14.2 in
|
|
Weight
|
27.58 oz
|
|
General
|
|---|
|
Device Type
|
Wireless bridge
|
|
Width
|
5.1 in
|
|
Depth
|
2.8 in
|
|
Height
|
14.2 in
|
|
Weight
|
27.58 oz
|
|
Expansion / Connectivity
|
|---|
|
Interfaces
|
1 x 1000Base-T - RJ-45
|
|
Miscellaneous
|
|---|
|
Included Accessories
|
Pole mount, power cable
|
|
Compliant Standards
|
IPX6, FCC, IC, NDAA
|
|
Networking
|
|---|
|
Form Factor
|
Pole mountable
|
|
Connectivity Technology
|
Wireless
|
|
Line Coding Format
|
BPSK, QPSK, 16 QAM, 64 QAM, 256 QAM
|
|
Data Link Protocol
|
IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac
|
|
Frequency Band
|
5 GHz
|
|
Max Range Open Space
|
3 miles
|
|
Performance
|
Maximum data rate (5 GHz): 400 Mbps
|
|
Capacity
|
Spatial streams: 2
|
|
Status Indicators
|
Power, Ethernet link/activity, signal strength
|
|
Features
|
2x2 MIMO technology, reset button, UV resistant casing, weatherproof
|
|
Encryption Algorithm
|
WPA2, AES
|
|
Power
|
|---|
|
Power Over Ethernet (PoE) Supported
|
Passive PoE
|
|
Voltage Required
|
DC 42.5 - 57 V
|
|
Power Consumption Operational
|
6 watt
|
|
Environmental Parameters
|
|---|
|
Min Operating Temperature
|
-40 °F
|
|
Max Operating Temperature
|
140 °F
|
|
Humidity Range Operating
|
5 - 95% (non-condensing)
|
|
Antenna
|
|---|
|
Antenna
|
Internal
|
|
Gain Level
|
17 dBi
|
