Version 1 - PoE injector - IP67, outdoor - DC 24 - 57 V - 95 Watt - output connectors: 1
| Main Specifications | |
|---|---|

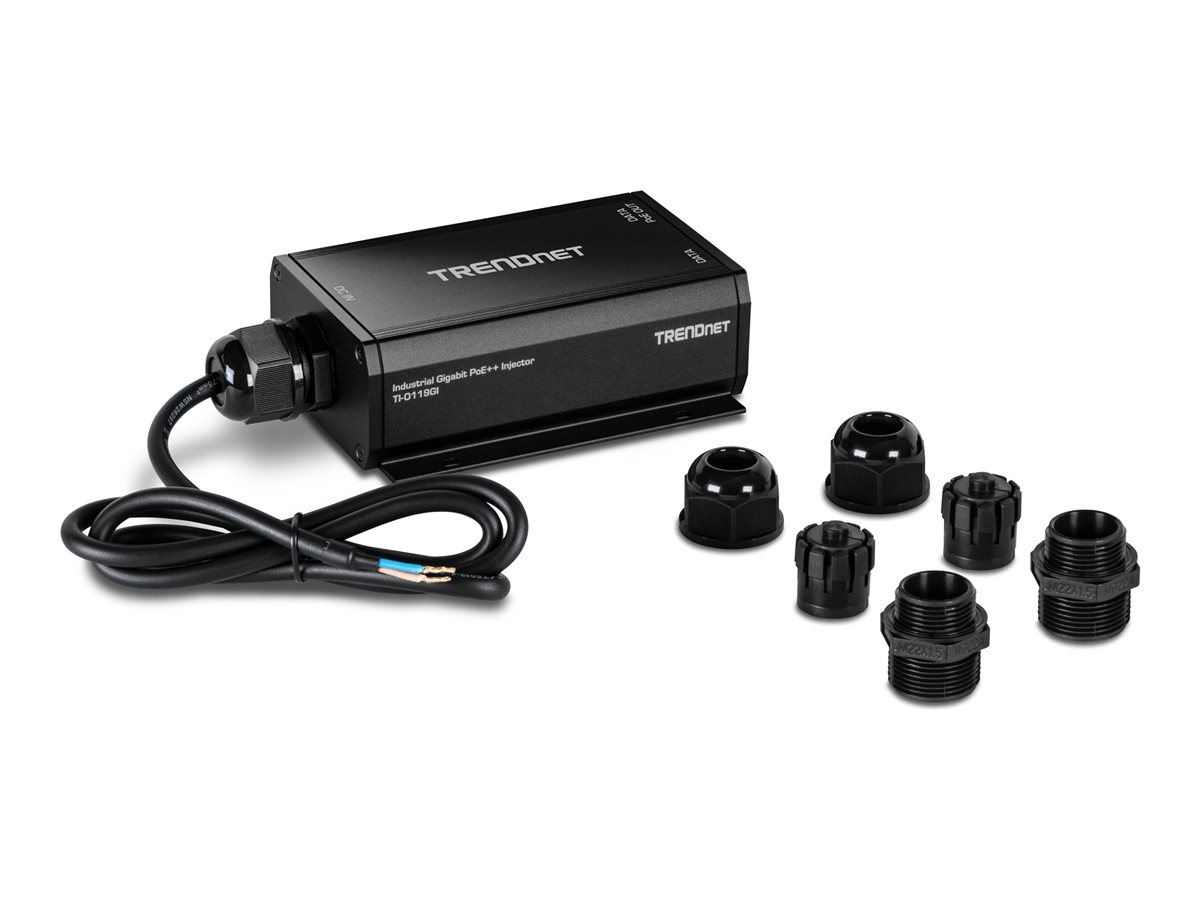

| Product Description | TRENDnet TI-O119GI - Version 1 - PoE injector - IP67, outdoor - 95 Watt |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE++ |
| Weight | 20.32 oz |
| Input Voltage | DC 24 - 57 V |
| Power Capacity | 95 Watt |
| Input Connectors | 1 x hardwire 2-wire |
| Output connectors | 1 x RJ-45 |
| Included Accessories | Mounting kit |
| Dimensions (WxDxH) | 3 in x 7.5 in x 1.7 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE++ (IEEE 802.3bt) |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 ¦ 1 x Gigabit LAN (PoE++) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Mounting kit |
| MTBF | 250,880 hours |
| Features | Metal housing, wall mountable, grounding point, outdoor, 6 kV ESD protection, electric shock protection, 8 kV ESD protection (Air), 6 kV surge protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, FCC, LVD, IEC 60068-2-27, IEC 60068-2-31, IEC 60068-2-6 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | Up to 95% (non-condensing) |
| Power Device | |
| Input Voltage | DC 24 - 57 V |
| Input Connectors | 1 x hardwire 2-wire |
| Power Consumption Operational | 3.84 Watt |
| Power Output Connectors Details | 1 x RJ-45 |
| Power Capacity | 95 Watt |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 7.5 in |
| Height | 1.7 in |
| Weight | 20.32 oz |
