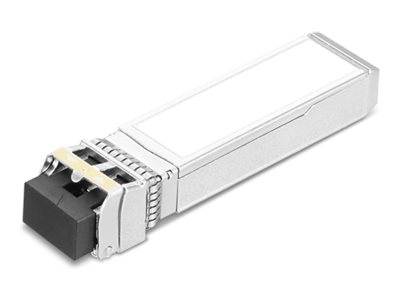

SFP+ transceiver module - 10GbE - 10GBase-SR, 10GBase-SW - up to 1310 ft
| Main Specifications | |
|---|---|
| Product Description | Lenovo - SFP+ transceiver module - 10GbE |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Cabling Type | 10GBase-SR, 10GBase-SW |
| Data Transfer Rate | 10.5 Gbps |
| Data Link Protocol | 10GbE |
| Max Transfer Distance | 1310 ft |
| System Requirements | Windows 11 |
| Dimensions (WxDxH) | 2.2 in x 0.3 in x 0.5 in |
| Weight | 2.33 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x 10Gb Ethernet - SFP+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | BSMI, EMC, FCC, sDoC, OM4, RoHS |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-SR, 10GBase-SW |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10.5 Gbps |
| Max Transfer Distance | 1310 ft |
| Software / System Requirements | |
| OS Required | Windows 11 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 95% RH |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 0.3 in |
| Height | 0.5 in |
| Weight | 2.33 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.3 in |
| Shipping Depth | 5.3 in |
| Shipping Height | 1.4 in |
| Shipping Weight | 6.52 oz |
