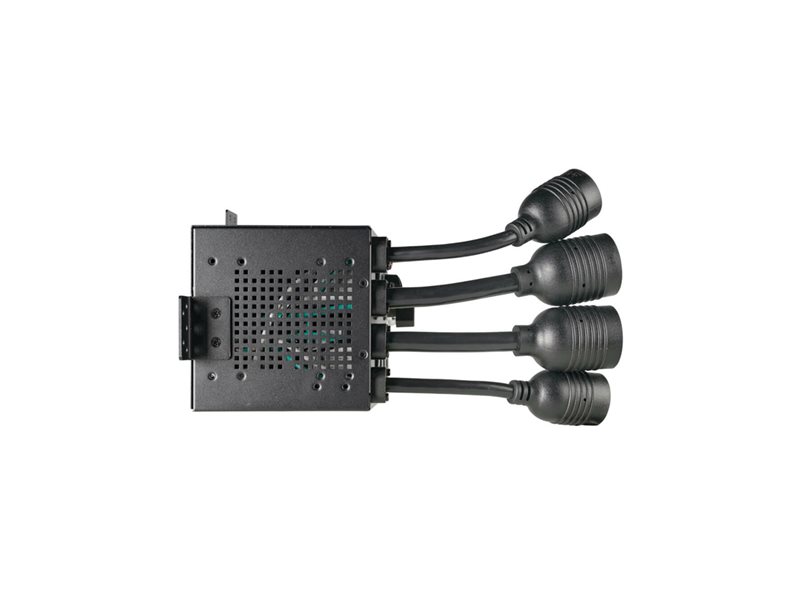

Bypass switch (rack-mountable / wall mountable) - 6000 Watt - 6000 VA - output connectors: 5 - 0U - for P/N: 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6K-L
| Main Specifications | |
|---|---|
| Product Description | Eaton 9PX G2 MBP6K208G2 - bypass switch - 6000 Watt - 6000 VA |
| Device Type | Bypass switch - rack-mountable / wall mountable |
| Rack Size | 0U |
| Output Voltage | AC 208/220/230/240 V |
| Power Capacity | 6000 Watt / 6000 VA |
| Input Connectors | 1 x hardwire |
| Output connectors | 2 x power NEMA L6-20R ¦ 3 x power NEMA L6-30R ¦ 1 x hardwire |
| Included Accessories | 2 cable glands, mounting hardware |
| Dimensions (WxDxH) | 9.4 in x 4.9 in x 5.1 in |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6K-L |
| General | |
| Device Type | Bypass switch - rack-mountable / wall mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 2 cable glands, mounting hardware |
| Rack Mounting Kit | Included |
| Compliant Standards | cUL Listed, Mexico NOM, RoHS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Input Connectors | 1 x hardwire |
| Power Output Connectors Details | 2 x power NEMA L6-20R ¦ 3 x power NEMA L6-30R ¦ 1 x hardwire |
| Output Voltage | AC 208/220/230/240 V 50/60 Hz |
| Power Capacity | 6000 Watt / 6000 VA |
| Output Waveform | Sinewave |
| Dimensions & Weight | |
| Width | 9.4 in |
| Depth | 4.9 in |
| Height | 5.1 in |
| Compatibility Information | |
| Designed For | P/N: 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6K-L |
