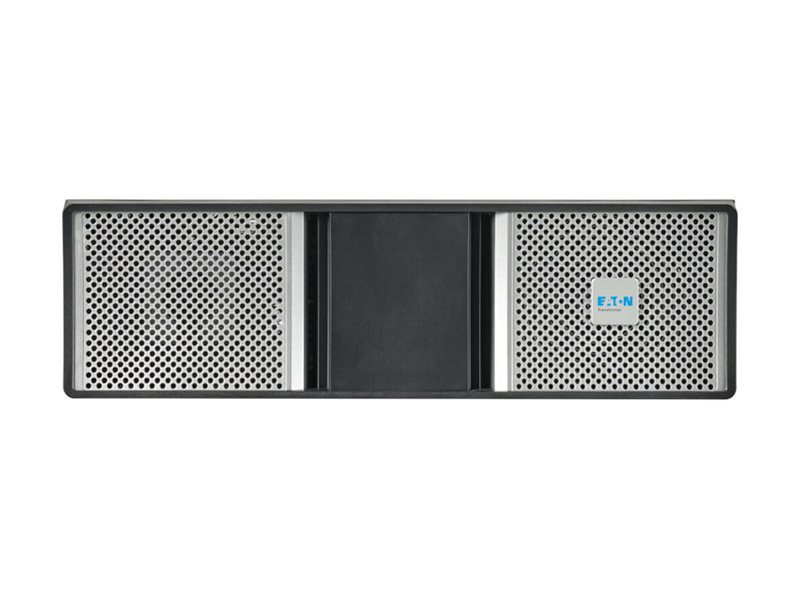

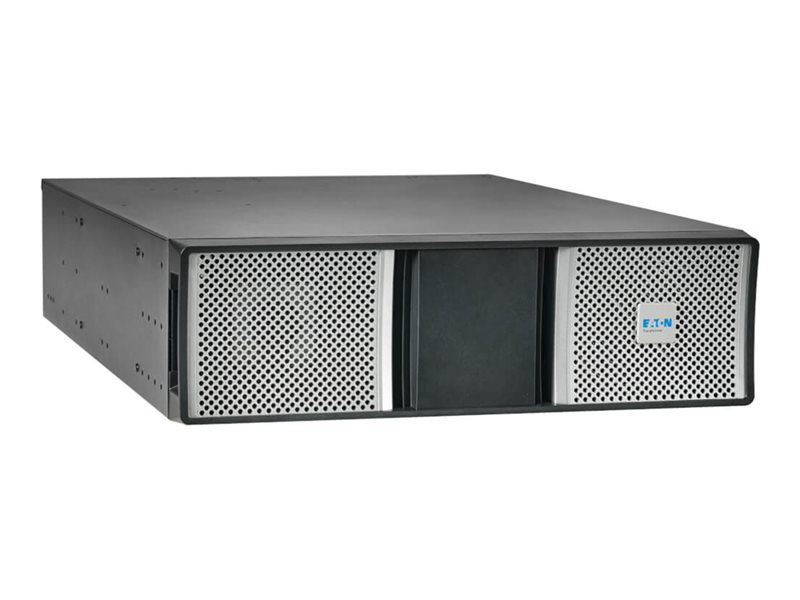

Power distribution unit (rack-mountable / external) - 6000 Watt - 6000 VA - 1-phase - input: NEMA L6-30P - output connectors: 8 (NEMA 5-20R, NEMA L14-30R, NEMA L6-30R) - 3U - 19" - 6 ft cord - for P/N: 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6K-L
| Main Specifications | |
|---|---|
| Product Description | Eaton 9PX G2 9PXPPDM1G2 - power distribution unit - 6000 Watt - 6000 VA |
| Device Type | Power distribution unit - rack-mountable / external |
| Cord Length | 6 ft |
| Rack Size | 19" - 3U |
| Input Wiring | 1-phase |
| Output Voltage | AC 100/110/120/208/220/230/240 V |
| Power Capacity | 6000 Watt / 6000 VA |
| Input Connectors | Power NEMA L6-30P |

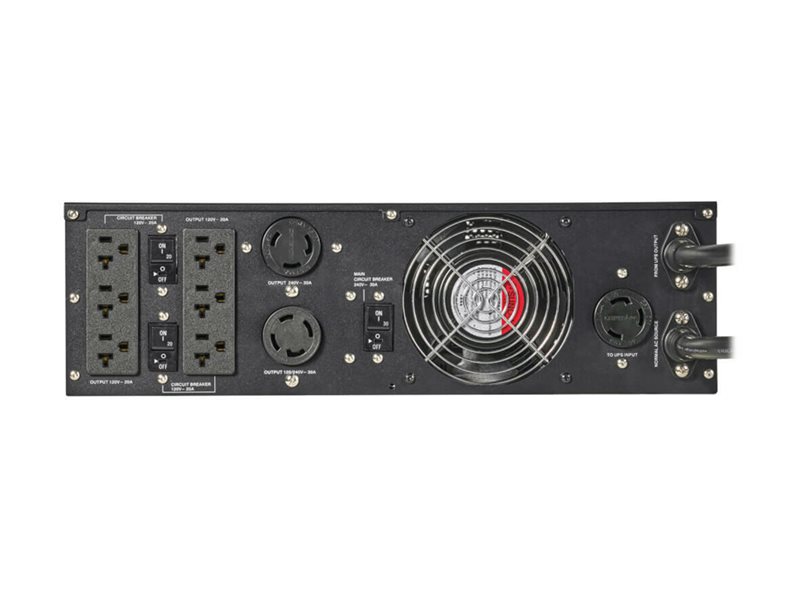

| Output connectors | 6 x power NEMA 5-20R ¦ 1 x power NEMA L14-30R ¦ 1 x power NEMA L6-30R |
| Included Accessories | 4-post rail kit, brackets |
| Dimensions (WxDxH) | 17.3 in x 26.9 in x 5.1 in |
| Environmental Standards | ENERGY STAR |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6K-L |
| General | |
| Device Type | Power distribution unit - rack-mountable / external |
| Height (Rack Units) | 3U |
| Rack Size | 19" |
| Cord Length | 6 ft |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 4-post rail kit, brackets |
| Cables Included | Power cable 6 ft |
| Rack Mounting Kit | Included |
| Features | Built-in maintenance bypass |
| Compliant Standards | cUL, Mexico NOM, RoHS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Power Device | |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power NEMA L6-30P |
| Power Output Connectors Details | 6 x power NEMA 5-20R ¦ 1 x power NEMA L14-30R ¦ 1 x power NEMA L6-30R |
| Output Voltage | AC 100/110/120/208/220/230/240 V |
| Power Capacity | 6000 Watt / 6000 VA |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 26.9 in |
| Height | 5.1 in |
| Compatibility Information | |
| Designed For | P/N: 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6K-L |
| Sustainability Information | |
| ENERGY STAR | Yes |
