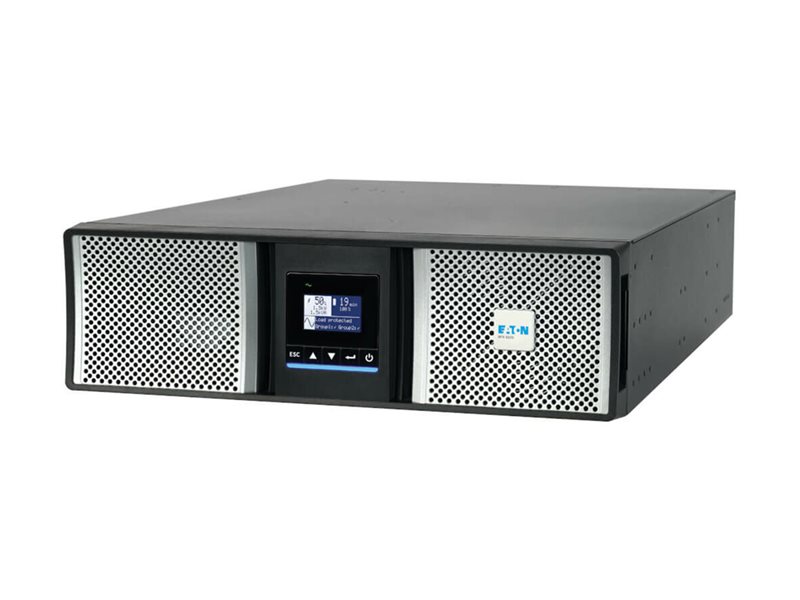

UPS (rack-mountable / external) - AC 200/208/220/230/240 V - 3000 Watt - 3000 VA - 1-phase - valve regulated lead-acid (VRLA) - Ethernet 10/100, RS-232, USB - output connectors: 4 - PFC - 3U - 19" - for P/N: 9PXEBM180RTG2, 9PXPPDM1G2, 9PXPPDM2G2, 9PXTFMR11G2, MBP6K208G2
| Main Specifications | |
|---|---|
| Product Description | Eaton 9PX G2 9PX3K3UG2 - UPS - 3000 Watt - 3000 VA - VRLA |
| Device Type | UPS - Power Factor Correction (PFC) - rack-mountable / external |
| Rack Size | 19" - 3U |
| Weight | 98.3 lbs |
| Input Wiring | 1-phase |
| Input Voltage | AC 200/208/220/230/240 V |
| Output Voltage | AC 200/208/220/230/240 V |
| Power Capacity | 3000 Watt / 3000 VA |
| Input Connectors | 1 x power NEMA L6-30P, hardwire |
| Output connectors | 2 x power NEMA L6-20R ¦ 2 x power NEMA L6-30R ¦ 1 x hardwire |
| Battery | Expandable valve regulated lead-acid (VRLA) |
| Run Time (Up To) | 7.5 min at full load |
| Networking | Ethernet 10/100, RS-232, USB |
| Included Accessories | Hardwire connection cable gland, network management card, tower support stands |
| Dimensions (WxDxH) | 17.3 in x 27.2 in x 5.1 in |
| Environmental Standards | ENERGY STAR |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: 9PXEBM180RTG2, 9PXPPDM1G2, 9PXPPDM2G2, 9PXTFMR11G2, MBP6K208G2 |
| General | |
| Device Type | UPS - Power Factor Correction (PFC) - rack-mountable / external |
| Height (Rack Units) | 3U |
| Rack Size | 19" |
| Expansion / Connectivity | |
| Interfaces | 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x management (Ethernet) - RJ-45 |
| Expansion Slots | 1 (total) / 0 (free) x expansion slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Hardwire connection cable gland, network management card, tower support stands |
| Cables Included | Serial cable - external ¦ USB cable - external ¦ Power cable - integrated - 10 ft |

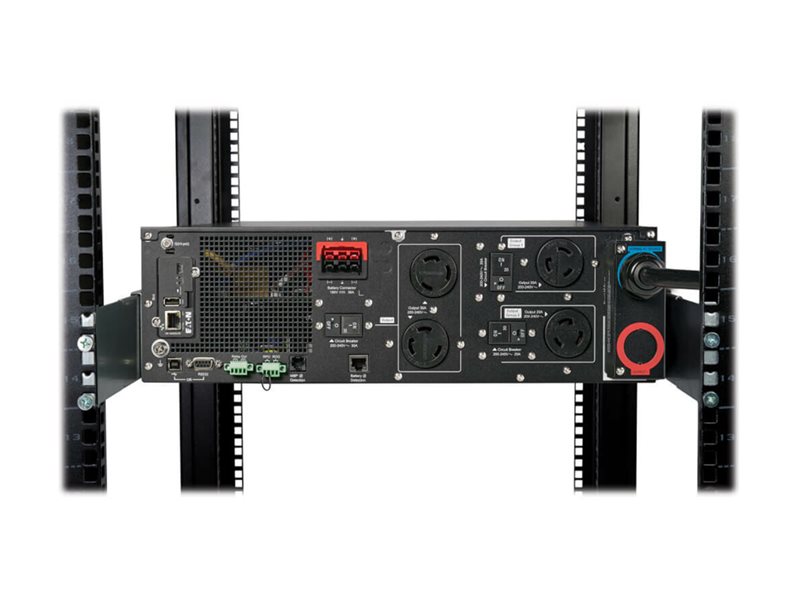

| Rack Mounting Kit | Included |

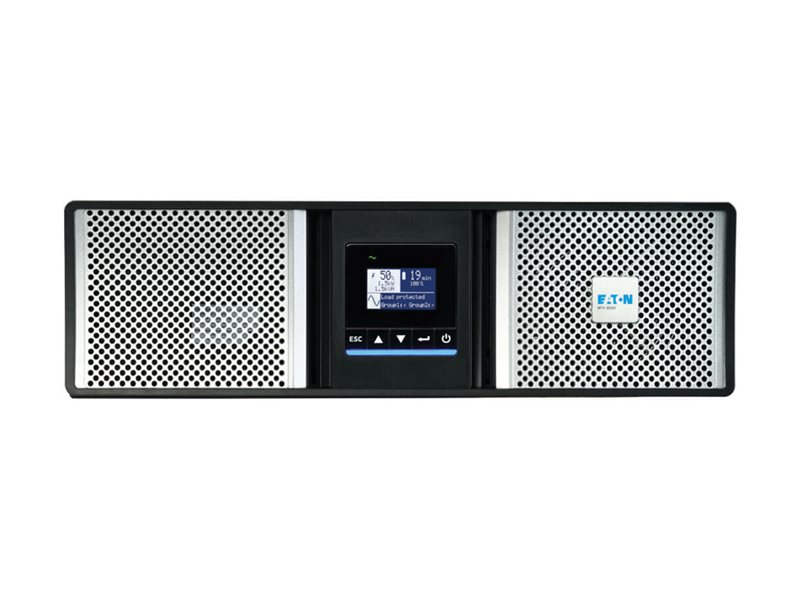

| Features | Advance Battery Management (ABM), LCD display, LED indicators, hot-swappable batteries, extended runtime |
| Compliant Standards | Mexico NOM, FCC Part 15, cUL, EN 62040-2, FCC, RoHS |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Battery | |
| Type | Expandable |
| Technology | Valve regulated lead-acid (VRLA) |
| Run Time (Up To) | 7.5 min at full load ¦ 18.5 min at half load |
| Recharge Time | 3 hours |
| Transfer Time | 0 ms |
| Features | Hot-swappable |
| Power Device | |
| UPS Technology | On-line |
| Supported Power Modules Qty | 12 |
| Input Voltage | AC 200/208/220/230/240 V |
| Input Voltage Range | AC 200 - 240 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P, hardwire |

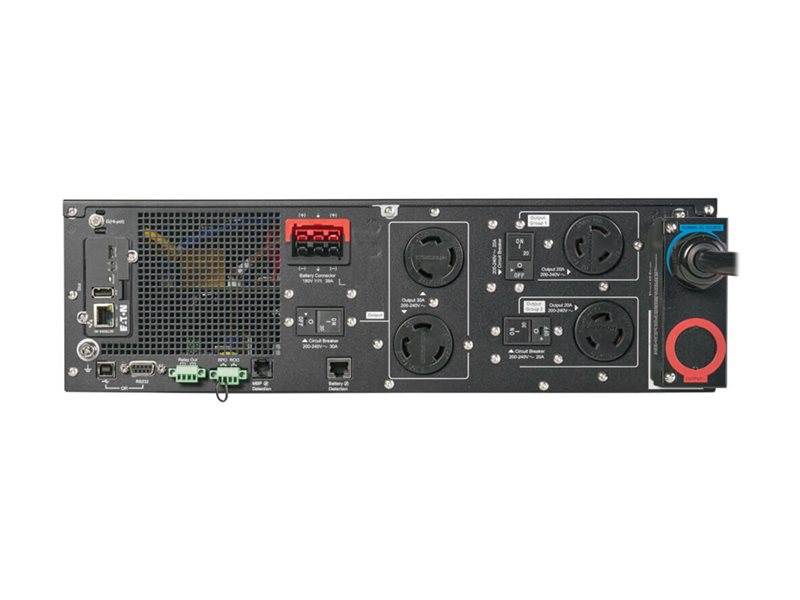

| Power Output Connectors Details | 2 x power NEMA L6-20R ¦ 2 x power NEMA L6-30R ¦ 1 x hardwire |
| Output Voltage | AC 200/208/220/230/240 V 50/60 Hz |
| Power Capacity | 3000 Watt / 3000 VA |
| Surge Suppression | Yes |
| Surge Response Time | 0 ms |
| Efficiency | 96.1% at 100% Load |
| Power Factor (PF) | 1.0 |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 27.2 in |
| Height | 5.1 in |
| Weight | 98.3 lbs |
| Compatibility Information | |
| Designed For | P/N: 9PXEBM180RTG2, 9PXPPDM1G2, 9PXPPDM2G2, 9PXTFMR11G2, MBP6K208G2 |
| Sustainability Information | |
| ENERGY STAR | Yes |
