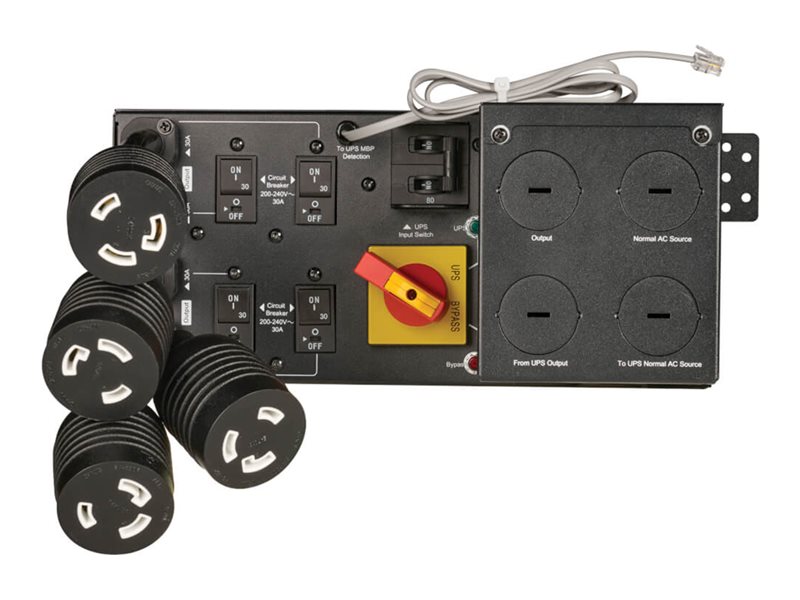

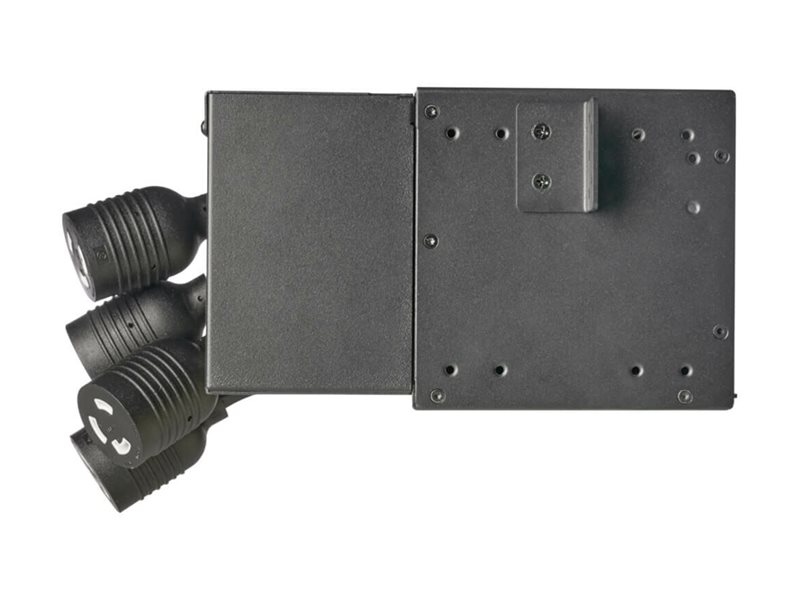

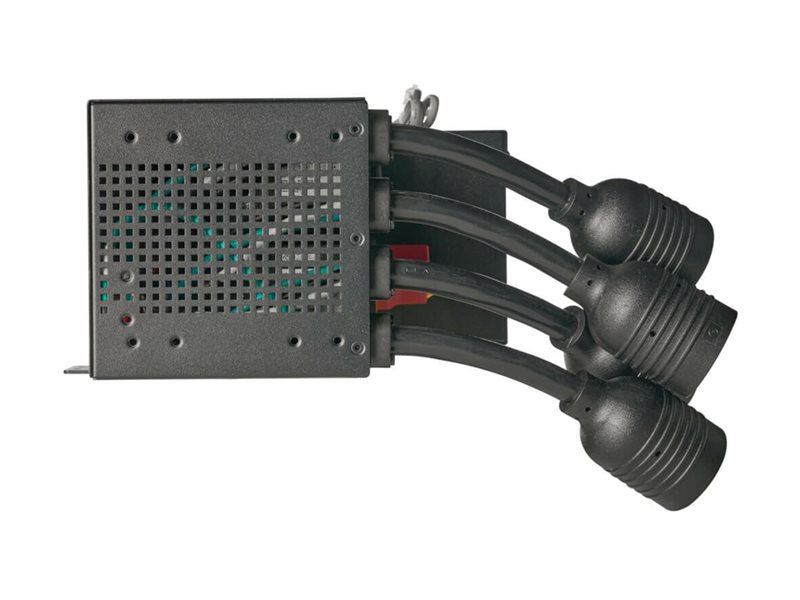

Bypass switch (rack-mountable / external) - 11000 Watt - 11000 VA - output connectors: 4 - 0U - for P/N: 9PX11KG2, 9PX11KTF11G2, 9PX8KG2
| Main Specifications | |
|---|---|
| Product Description | Eaton 9PX G2 MBP11K208G2 - bypass switch - 11000 Watt - 11000 VA |
| Device Type | Bypass switch - rack-mountable / external |
| Rack Size | 0U |
| Weight | 10.14 lbs |
| Output Voltage | AC 208/220/230/240 V |
| Power Capacity | 11000 Watt / 11000 VA |
| Input Connectors | Hardwire |
| Output connectors | 4 x power NEMA L6-30R |
| Included Accessories | 2 x input/output cover, input/output cover fixation kit, 2 x conduit for UPS input/output connection, 4 x conduit fitting, mounting hardware |
| Dimensions (WxDxH) | 11.4 in x 5.1 in x 5.1 in |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: 9PX11KG2, 9PX11KTF11G2, 9PX8KG2 |
| General | |
| Device Type | Bypass switch - rack-mountable / external |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 2 x input/output cover, input/output cover fixation kit, 2 x conduit for UPS input/output connection, 4 x conduit fitting, mounting hardware |
| Compliant Standards | Mexico NOM, RoHS, EN 61000-4-2, IEC/EN 62040-1, IEC/EN 62040-2, EN 61000-4-3, EN 62040-3, IEC 61000-4-6, IEC 61000-4-5, EN 61000-4-4, cULus, NOM |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Input Connectors | Hardwire |
| Power Output Connectors Details | 4 x power NEMA L6-30R |
| Output Voltage | AC 208/220/230/240 V 50/60 Hz |
| Power Capacity | 11000 Watt / 11000 VA |
| Dimensions & Weight | |
| Width | 11.4 in |
| Depth | 5.1 in |
| Height | 5.1 in |
| Weight | 10.14 lbs |
| Compatibility Information | |
| Designed For | P/N: 9PX11KG2, 9PX11KTF11G2, 9PX8KG2 |
