Transformer (rack-mountable / external) - AC 208 V - 5 kW - 5000 VA - output connectors: 18 - 3U - 19" - for P/N: 9PX11KG2, 9PX11KMG2, 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6K-L, 9PX8KG2, 9PX8KMG2
| Main Specifications | |
|---|---|

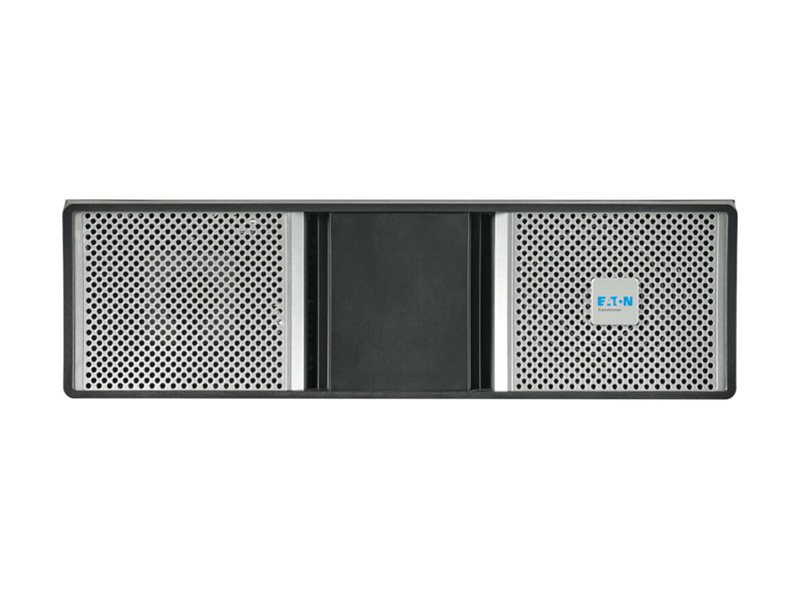

| Product Description | Eaton 9PX G2 9PXTFMR5G2 - transformer - 5 kW - 5000 VA |

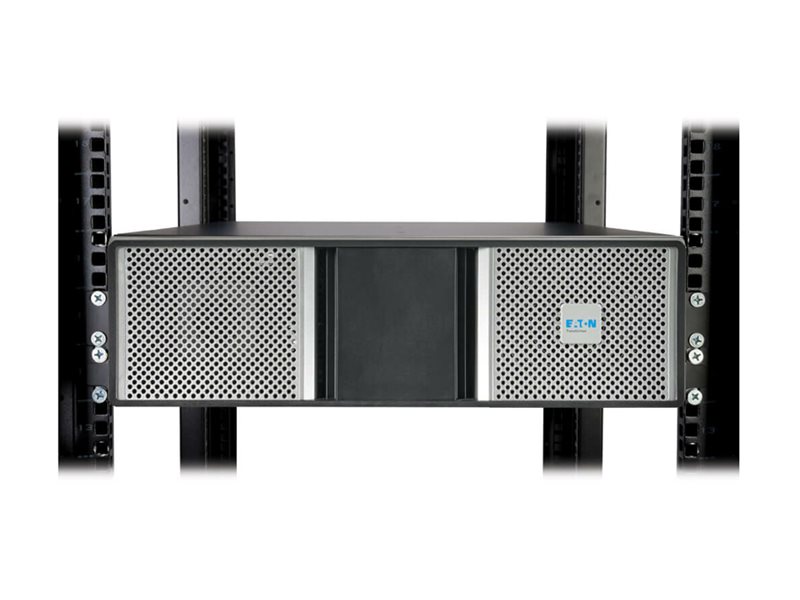

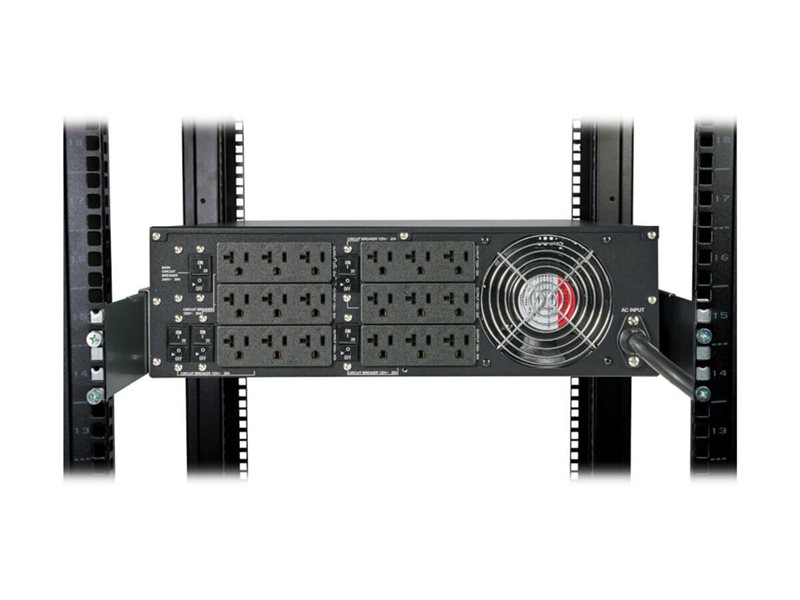

| Device Type | Transformer - rack-mountable / external |
| Rack Size | 19" - 3U |
| Input Voltage | AC 208 V |
| Output Voltage | AC 100/110/120 V |
| Power Capacity | 5 kW / 5000 VA |
| Input Connectors | 1 x power NEMA L6-30P |

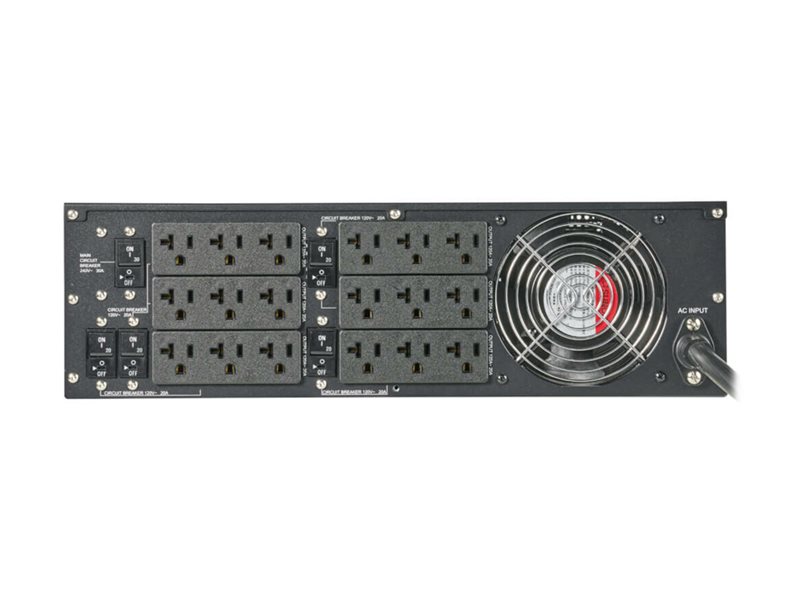

| Output connectors | 18 x power NEMA 5-20R |
| Included Accessories | Brackets, rack-mounting hardware |
| Dimensions (WxDxH) | 17.3 in x 27.4 in x 5.1 in |
| Environmental Standards | ENERGY STAR |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: 9PX11KG2, 9PX11KMG2, 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6K-L, 9PX8KG2, 9PX8KMG2 |
| General | |
| Device Type | Transformer - rack-mountable / external |
| Height (Rack Units) | 3U |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Brackets, rack-mounting hardware |
| Features | Step-Down Transformer |
| Compliant Standards | cUL, Mexico NOM, RoHS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Power Device | |
| Input Voltage | AC 208 V |
| Frequency Provided | 60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Power Output Connectors Details | 18 x power NEMA 5-20R |
| Output Voltage | AC 100/110/120 V 60 Hz |
| Power Capacity | 5 kW / 5000 VA |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 27.4 in |
| Height | 5.1 in |
| Compatibility Information | |
| Designed For | P/N: 9PX11KG2, 9PX11KMG2, 9PX3K3UG2, 9PX5KG2, 9PX6KG2, 9PX6K-L, 9PX8KG2, 9PX8KMG2 |
| Sustainability Information | |
| ENERGY STAR | Yes |
